Heavy Logistics Vehicle Wheeled (HLVW)

Description

Description

The Heavy Logistics Vehicle Wheeled (HLVW) fleet provides the Canadian Army with a heavy lift transport capability. The HLVW fleet is used to transport combat supplies, cargo, troops, and spare parts. These trucks can hold between 10,000 kg to 16,000 kg of equipment depending on the variant, and are used by the regular force and reserve field units, as well as during overseas deployments.

Variants

Variants

  • HLVW Cargo
  • HLVW Heavy Mobile Repair Team (HMRT)
  • HLVW Forward Area Refueller (FAR)

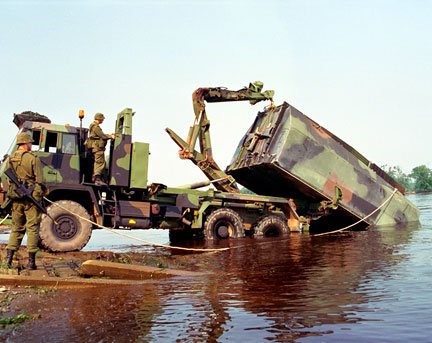

  • HLVW Medium Floating Bridge Transporter (MFBT)
  • HLVW Palletized Loading System (PLS)
  • HLVW Wrecker
  • HLVW Tractor
Specifications

Specifications (ISC only)

Weight

  • 13, 076 kg

Dimensions

  • Length: 9.18 m
  • Width: 2.53 m
  • Height: 3.65 m

Mobility

  • On-road speed: 90 km/h max
  • On-road range: 700 km
  • Maximum grade: 80%
  • Side slope 30%
  • Fording Depth: .08 m

Fuel

  • Type: F-54 Diesel DF-2
  • Capacity: Main diesel reservoir - 400 litres
  • Consumption: 57 L/100 km

Capabilities

  • Arctic: Yes
  • Dessert: Yes

Crew

  • 3 personnel

Photo Gallery
