Arctic Program for Regional and International Shorebird Monitoring

The Program for Regional and International Shorebird Monitoring (PRISM) was designed by biologists and researchers from the Canadian and United States Governments (Canadian Wildlife Service, U.S. Geological Survey and U.S. Fish and Wildlife Service) to address concerns about shorebird population declines first noted on migration surveys. It is estimated that of the 21 species that breed in the Canadian Arctic (Table 1), 13 are experiencing declining population trends (see Status of Birds in Canada), 90% of which have a Canadian Responsibility score of ­Moderate, High or Very High. Several of these shorebird species have already been listed by the Committee on the Status of Endangered Wildlife in Canada (COSEWIC) or the Species at Risk Act, or are being assessed for listing.

Shorebird species that breed in the arctic

In order to set population targets and understand the conservation and management concerns needed to ensure Arctic-breeding shorebird populations are healthy, we must know how many shorebirds are actually present to start with, and how critical their population declines are. To address this crucial information gap, the overall PRISM consists of four survey components: (1) Arctic breeding, (2) Migration, (3) Neotropical and (4) Tropical surveys. Although all four survey components have been started, the Arctic breeding survey component (called Arctic PRISM) is by far the most advanced in terms of methodology (both of surveys and statistics) and data collection. It is designed to address all of the PRISM goals except Goal 3. The goals of PRISM are to:

  1. Estimate population size.
  2. Monitor trends in population size.
  3. Monitor shorebirds at stopover locations.
  4. Determine distribution, abundance, and habitats used throughout the year.
  5. Assist local managers in meeting shorebird conservation goals.

Arctic PRISM is comprised of three types of surveys divided into "Tiers"

Tier 1 is rapid surveys conducted at a large number of sites over a ~20 year interval to get statistically-rigorous, accurate, survey-based, species-specific population estimates for Arctic-breeding shorebirds (PRISM Goal 1). Ideally the Tier 1 surveys will be repeated after the first round of surveys to calculate much-needed shorebird population trends (PRISM Goal 2). The compilation of the Ecosystem Status and Trends Report by the Federal, Provincial and Territorial Governments of Canada highlights the need to fill important gaps in our knowledge of shorebird population sizes and trends for shorebirds that breed in Bird Conservation Region (BCR) 3 (Arctic).

Tier 2 is intensive surveys at a smaller number of sites located in areas with known concentrations of shorebirds. The data collected at these long-term study sites provides annual information on the breeding biology of shorebirds that cannot be captured during the Tier 1 surveys, and provides a shorter-term assessment of site-specific population trends (PRISM Goal 3). These Tier 2 sites are also part of the Arctic Shorebird Demographic Network, which is a network of field sites across Alaska and Canada focused on investigating the impacts of environmental change on the demography (characteristics of a population, e.g. nest success, adult survival, sex ratios, etc.) of migratory shorebirds in the arctic.

Tier 3 uses the existing Northwest Territories-Nunavut Bird Checklist Program to track changes in shorebird abundance and distribution across the Canadian Arctic (PRISM Goal 3). All data from the Northwest Territories-Nunavut Bird Checklist Program are housed at

All three Tiers of the Arctic PRISM are designed to, and have been used to, help local managers meet their conservation goals (PRISM Goal 5). For example, Arctic PRISM data contributed to the environmental assessment process for the Mackenzie Gas Project, as well as numerous other environmental assessments in Northwest Territories and Nunavut.

The data we are collecting during the Arctic PRISM surveys is some of the first bird and habitat data ever collected in many areas of the Arctic. The data is increasingly important given our need to determine the effect(s) of climate change on Arctic species and the environment as a whole, as it provides a much needed baseline for Arctic habitat data. Arctic PRISM also collects data on all species of birds, many of which are currently not monitored in the Arctic including songbirds such as Snow Bunting, Lapland Longspur, Hoary Redpoll and Savannah Sparrow and waterbirds such as Sabine's Gull, Arctic Tern, Red-throated Loon and Pacific Loon.

Arctic PRISM was designed to support the goals of the Canadian Shorebird Conservation Plan and is identified in the Northern Shorebird Conservation Strategy as a high priority action item for monitoring shorebirds in BCR 3, and for ensuring the content of the Strategy for BCR 3 is current.

While the majority of the work is done by professional biologists, Arctic PRISM has also benefited from many volunteers, summer students and northern community field assistants over the years. If you are interested in participating as part of the Arctic PRISM survey team, please contact us directly, or visit Environment and Climate Change Canada's bird survey volunteer pages to see other exciting opportunities for volunteer participation.

Table 1. Shorebird species that breed in the Arctic (Bird Conservation Region 3).
Species Breeds in Canada?
Black-bellied Plover Yes
American Golden-Plover Yes
Pacific Golden-Plover No, Alaska only
Semipalmated Plover Yes
Whimbrel Yes
Hudsonian Godwit Yes
Bar-tailed Godwit No, Alaska only
Ruddy Turnstone Yes
Black Turnstone No, Alaska only
Rock Sandpiper No, Alaska only
Purple Sandpiper Yes
Red Knot Yes
Sanderling Yes
Dunlin Yes
Semipalmated Sandpiper Yes
Western Sandpiper No, Alaska only
Least Sandpiper Yes
Baird's Sandpiper Yes
Pectoral Sandpiper Yes
Buff-breasted Sandpiper Yes
Long-billed Dowitcher Yes
Stilt Sandpiper Yes
Wilson's Snipe Yes
Red-necked Phalarope Yes
Red Phalarope Yes

Status of Arctic PRISM

The North American Arctic has been divided into 20 Arctic PRISM regions (13 in Canada, 7 in Alaska) (Figure 1). Arctic PRISM surveys began in 2002. The U.S. finished their portion of the surveys in 2007. In Canada, the Canadian Wildlife Service has completed four of our 13 regions and started surveys in another six. We have also designated two Tier 2 sites in Canada (East Bay, Southampton Island, NU and Kendall Island Bird Sanctuary, Mackenzie Delta, NT) (Figure 2).

Figure 1. Map of Arctic PRISM regions
Map showing the twenty regions

Figure 1 is a map showing the twenty regions that the Arctic Program for Regional and International Shorebird Monitoring is sub-divided into. The basic coverage area is the tundra from Alaska east through Yukon, the Northwest Territories, Nunavut and northern Quebec.

Region numbers and names for figure 1

  1. Quebec
  2. Baffin
  3. Eastern Foxe Basin
  4. Southampton
  5. NW Hudson Barrens
  6. SW Hudson Barrens
  7. N Hudson Barrens
  8. Queen Maud
  9. S Archipelago
  10. N Archipelago
  11. Central Ellesmere
  12. Mackenzie
  13. Arctic National Wildlife Refugee
  14. National Petroleum Reserve Alaska Coast
  15. National Petroleum Reserve Alaska Inland
  16. Selawik
  17. Yukon Delta
  18. Alaska Peninsula
  19. Alaska Maritimes
  20. High Arctic Wetlands (wetlands from within Regions 2, 3, 9-11)

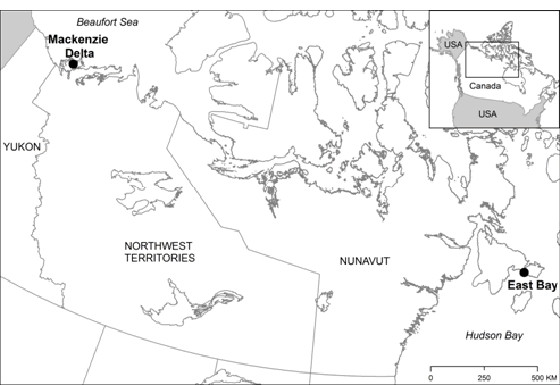

Figure 2. Map of locations of East Bay and Mackenzie Delta sites
Map showing the locations of the long-term monitoring sites

Figure 2 is a map showing the locations of the long-term monitoring sites. One is located in the western Arctic in the Mackenzie Delta near the Beaufort Sea coast, in the Northwest Territories. The other is in the eastern Arctic at East Bay on Southampton Island, Nunavut, north of Hudson Bay.

Publications and reference documents

The Arctic PRISM protocol

Photo of a pair of Red Phalarope at a shoreline
Photo: Gerry Beyersbergen
© Environment and Climate Change Canada, 2015
Red Phalarope at a shoreline

To aid in the collection of baseline and cumulative impact monitoring data, we strongly encourage proponents of projects within BCR 3 in the Northwest Territories and Nunavut to use the Arctic PRISM protocol for surveys of shorebirds, landbirds and inland waterbirds. Assistance in modifying the Arctic PRISM program to match the needs of a proponent's specific monitoring goals is available.

Protocol for industry

Available soon

Arctic shorebirds in North America: a decade of monitoring, Bart and Johnston (editors)

A book of the results of the Arctic PRISM (1998-2008) is available through the Studies in Avian Biology monograph series via the University of California Press in hardcover and e-book format.

Photograph of a Semipalmated Sandpiper
Photo: Anthony Levesque
© Environment and Climate Change Canada, 2015
Semipalmated Sandpiper

Abstract. Shorebirds in the arctic regions of North America were studied for more than a decade using rigorous, standardized surveys to estimate densities and population size and to explore distribution and habitat relationships. Field work was conducted from the Aleutian Islands, Alaska to Baffin Island, Nunavut and south to Québec. In each region, a large sample of plots was surveyed using a rapid method and a subset of these plots was studied intensively to estimate detection rates on the rapid surveys. A total of 1,554 rapid plots, covering 232 km², and 83 intensive plots were surveyed during the study. The monograph presents more than 600 density estimates and more than 200 estimated population sizes. Densities for all shorebirds combined were highest in the Yukon-Kuskokwim Delta and next highest on the Alaska Peninsula and the National Petroleum Reserve in Alaska (NPRA). They were lower in eastern Alaska and most of Canada but were high in the Foxe Basin including Southampton, Coats, Prince Charles, and Air Force Islands. Although densities were highest in wetlands, wetlands only contained about 45% of the shorebirds in our study area, and uplands, in which densities were generally very low, contained an estimated 27% of the total population. The methods are suitable for many other studies in which cryptic species must be surveyed across large landscapes.
