Western painted turtle (Chrysemys picta bellii): COSEWIC assessment and status report 2016
Pacific Coast population - Threatened
Intermountain – Rocky Mountain population - Special Concern
Prairie/Western Boreal – Canadian Shield population - Not at Risk
2016
Table of contents
- Table of contents
- Assessment summary
- Executive summary
- Technical summary: Pacific Coast population
- Technical summary: Intermountain – Rocky Mountain population
- Technical summary: Prairie/Western Boreal – Canadian Shield population
- Preface
- Wildlife species description and significance
- Distribution
- Habitat
- Biology
- Population sizes and trends
- Threats and limiting factors
- Protection, status and ranks
- Acknowledgements and authorities contacted
- Information sources
- Biographical summary of report writers
- Collections examined
List of figures
- Figure 1. Basking Western Painted Turtles, Chrysemys picta bellii, showing their smooth, rounded carapace (upper shell). Photo credit: Evanne Barrett, VAST Resource Solutions.
- Figure 2. Distinctive brightly coloured and reticulated patterning of the plastron (lower shell) of a Western Painted Turtle, Chrysemys picta bellii. Photo credit: Evanne Barrett, VAST Resource Solutions.

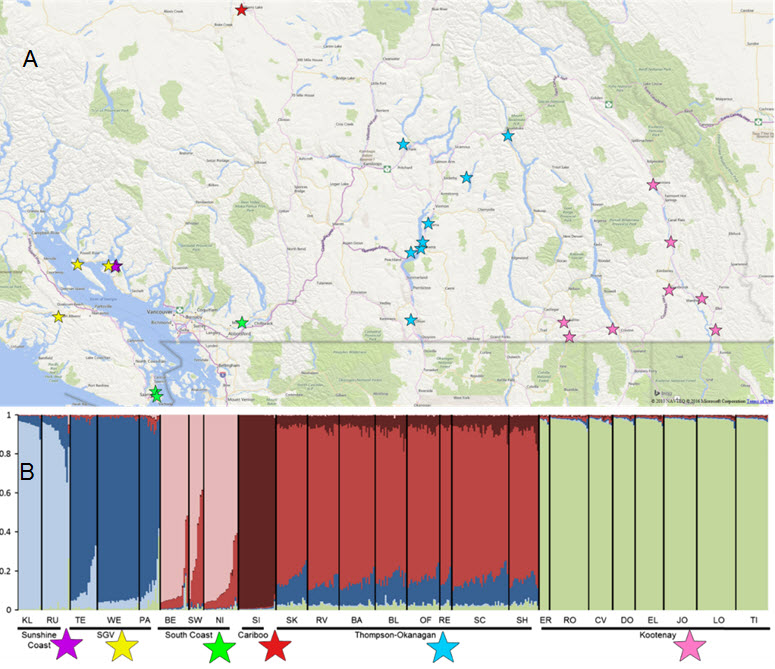

- Figure 3. Location (A) and STRUCTURE bar plot (B), averaged over 10 iterations, for Western Painted Turtles at localities sampled by Jensen et al. (2014a) in British Columbia. Genetic clusters identified in B correspond with the coloured star beside the cluster’s name below the bar plot. Note Sunshine Coast (purple) consists of two sites (stars) that are virtually superimposed at this scale. See Figure 4 in Jensen et al. (2014a) for a full explanation of bar plot.
- Figure 4. All reported observations of Western Painted Turtle (Chrysemys picta bellii) in Canada, including whether occurrences are deemed to be extant (naturally occurring) or presumed or suspected to have been introduced. See Table 1 for data sources.

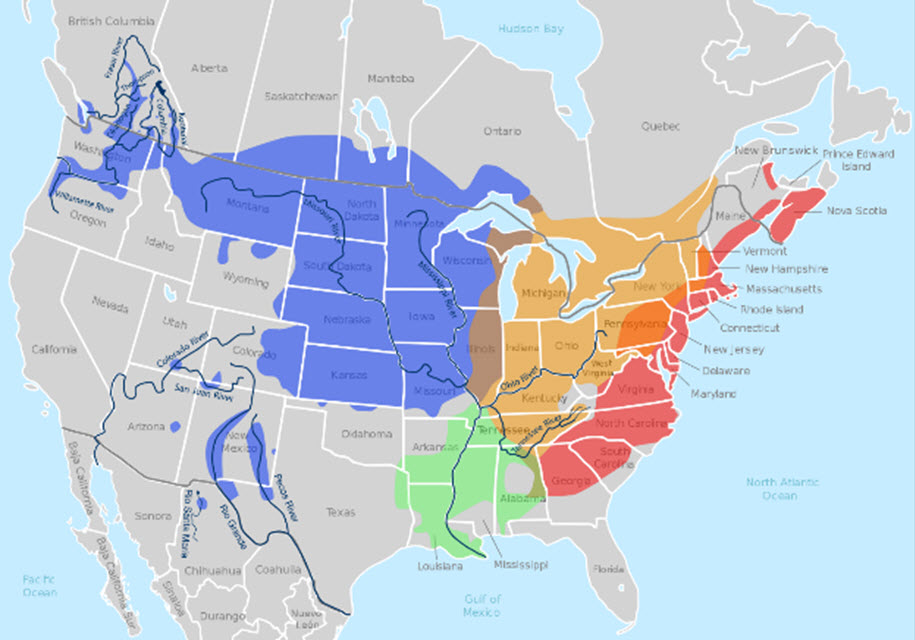

- Figure 5. Global range of Painted Turtle, Chrysemys picta, showing four recognized subspecies: Western Painted Turtle (C.p. bellii) in blue; Midland Painted Turtle (C.p. marginata) in orange; Southern Painted Turtle (C.p. dorsalis) in green; Eastern Painted Turtle (C.p. picta) in red. Areas of intergrade show a blending of these colours where ranges overlap. Source: adapted from Wikimedia Commons (2014). Edited to show region of bellii – marginata intergradation east of Lake Superior; Alberta range to Missouri (Milk) River watershed; British Columbia range better reflects known occurrences.
- Figure 6. Range and occurrence of Western Painted Turtle, Chrysemys picta bellii, in Alberta, Saskatchewan, Manitoba and Ontario. Orange shaded areas follow major watersheds (mapping source: National Hydro Network 2007). Northern range limit in eastern Saskatchewan and Manitoba west of Lake Winnipeg is unknown. See Table 1 for Western Painted Turtle data sources from Alberta (green symbols), Saskatchewan (blue symbols) and Manitoba (orange symbols); Ontario: purple circles from Ontario Reptile and Amphibian Atlas Program; pink circles from S. Hecnar, unpubl. data. Blue squares indicate C.p. marginata – C.p.bellii intergrades (S. Hecnar unpubl. data).

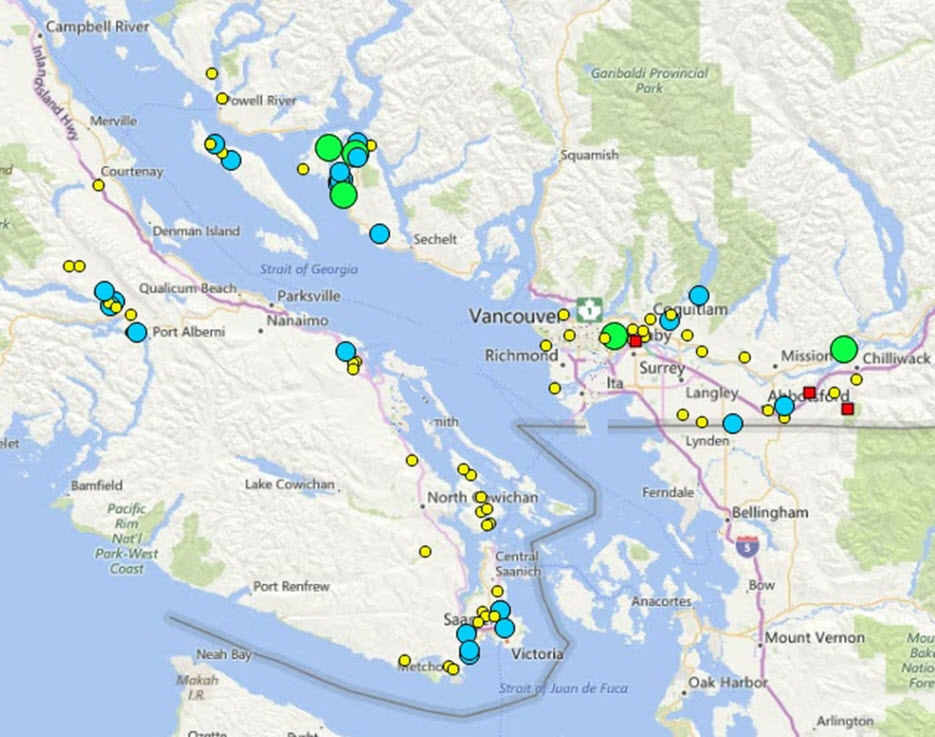

- Figure 7. Estimated minimum abundance at Western Painted Turtle sites in Pacific Coast Population. Small yellow circle: <10 individuals; mid-sized blue circle: 10-100 individuals; large green circle: >100 individuals; red square: extirpated. Note that there is much uncertainty about population sizes, particularly for Vancouver Island north of the Capital Regional District.
- Figure 8. Primary roads in relation to Western Painted Turtle occurrences in British Columbia: A) Pacific Coast population and B) Intermountain – Rocky Mountain population.
- Figure 9. Primary roads in relation to Western Painted Turtle occurrences in the Prairie/Western Boreal – Canadian Shield population.
List of tables
- Table 1. Data sources for Western Painted Turtle, Chrysemys picta bellii, records by population.
- Table 2. Projected regional human population growth over next 26 years (maximum extent of projected estimates) in areas of British Columbia where Western Painted Turtle, Chrysemys picta bellii, occurs, divided by Designatable Unit. Source: BC Stats (2014).
- Table 3. Proportion of the population within regions within the Pacific Coast Population for Western Painted Turtle. Data are from Table 4. Lower and higher limits should be viewed with extreme caution, especially for Vancouver Island and Saltspring Island where few sites have been subjected to mark-recapture studies.
- Table 4. Status of known Western Painted Turtle sites in Pacific Coast Population, by subpopulation (cluster of observations) and region. Modified and updated from Appendix 1/Table 4 in the provincial recovery plan (Western Painted Turtle Recovery Team 2016). Cluster numbers 1 – 37 are as per the above document and include 1 with recovery habitat only (#23) and 1 historical/recovery site (#5), while numbers 38 – 41 represent additional clusters/subpopulations (not in 2016 recovery plan).
- Table 5. Number of Western Painted Turtles (WPT) observed and or estimated from recent field studies in two Designatable Units in British Columbia. Minimum number alive (MNA) values should be viewed with caution because they are based on numbers observed during surveys (single or repeated) at any one time or opportunistically without correction for detectability, or in a few cases on the Lower Mainland or Sunshine Coast on estimates from mark-recapture data.
- Table 6. Summary of Threat scores for each Population / Designatable Unit of Western Painted Turtle. See Table 7 for a summary of Threat Score tallies and Appendices 2 – 4 for the entire threat calculator spreadsheets.
- Table 7. Threats to three populations of Western Painted Turtle, Chrysemys picta bellii, summarized by threat impact.
- Table 8. Conservation Rankings for Western Painted Turtle by NatureServe (2016). Which Painted Turtle taxon is ranked varies by jurisdiction. Species, subspecies, and population ranks are given for Global and National levels. At the Sub-national level, ranks are given to the lowest taxonomic level.
List of appendices
- Appendix 1. Threats assessment for the Western Painted Turtle – Pacific Coast Population.
- Appendix 2. Threats assessment for the Western Painted Turtle – Intermountain - Rocky Mountain Population.
- Appendix 3. Threats assessment for the Western Painted Turtle – Prairie/Western Boreal – Canadian Shield Population.
Document information
COSEWIC
Committee on the Status
of Endangered Wildlife
in Canada
COSEPAC
Comité sur la situation
des espèces en péril
au Canada
COSEWIC status reports are working documents used in assigning the status of wildlife species suspected of being at risk. This report may be cited as follows:
COSEWIC. 2016. COSEWIC assessment and status report on the Western Painted Turtle Chrysemys picta bellii, Pacific Coast population, Intermountain – Rocky Mountain population and Prairie/Western Boreal – Canadian Shield population,in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. xxi + 95 pp. (Species at Risk Public Registry website).
Previous report(s):
COSEWIC 2006. COSEWIC assessment and status report on the Western Painted Turtle Chrysemys picta bellii (Pacific Coast population, Intermountain – Rocky Mountain population and Prairie/Western Boreal – Canadian Shield population) in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vii + 40 pp.
Production note:
COSEWIC would like to acknowledge Ian Adams and Leigh Anne Isaac for writing the draft of the status report on the Western Painted Turtle (Chrysemys picta bellii) in Canada, prepared under contract with Environment and Climate Change Canada. This report was overseen, edited and updated by Kristiina Ovaska, Co-chair of the COSEWIC Amphibians and Reptiles Specialist Subcommittee.
For additional copies contact:
COSEWIC Secretariat
c/o Canadian Wildlife Service
Environment and Climate Change Canada
Ottawa, ON
K1A 0H3
Tel.: 819-938-4125
Fax: 819-938-3984
E-mail: COSEWIC E-mail
Website: COSEWIC
Également disponible en français sous le titre Ếvaluation et Rapport de situation du COSEPAC sur la Tortue peinte de l'Ouest (Chrysemys picta bellii), population de la côte du Pacifique, population intramontagnarde – des Rocheuses et population des Prairies / Boréal de l’Ouest - Bouclier canadien au Canada.
Cover illustration/photo:
Western Painted Turtle (Chrysemys picta bellii) northeast of Cranbrook, British Columbia; photo courtesy of Ben Meunier.
COSEWIC assessment summary
Assessment summary – November 2016
- Common name:
- Western Painted Turtle - Pacific Coast population
- Scientific name:
- Chrysemys picta bellii
- Status:
- Threatened
- Reason for designation:
- The distribution of this population overlaps with an area of dense human population in southwestern British Columbia, including the Lower Fraser Valley, where wetland loss has been extensive. Across its range, this population continues to face multiple threats from habitat loss and alteration, road mortality, and introduced species, such as Bullfrog and introduced turtles. Survey efforts within the past 10 years have revealed many new localities, bringing the total number of occupied waterbodies to over 80, grouped within 39 clusters. However, the Canadian population and local subpopulations are small and many, especially in the Lower Fraser Valley, are declining or considered not viable. The long-term persistence of the Canadian population remains precarious.
- Occurrence:
- British Columbia
- Status history:
- Designated Endangered in April 2006. Status re-examined and designated Threatened in November 2016.
- Common name:
- Western Painted Turtle- Intermountain – Rocky Mountain population
- Scientific name:
- Chrysemys picta bellii
- Status:
- Special concern
- Reason for designation:
- This population occurs mainly in larger valleys, which have been subjected to extensive wetland loss and habitat alteration from human activities. The population is suspected to be declining because of continuing loss and fragmentation of habitats and road mortality. The number of turtles is likely small, and the population may become Threatened if threats are neither reversed nor managed with demonstrable effectiveness.
- Occurrence:
- British Columbia
- Status history:
- Designated Special Concern in April 2006. Status re-examined and confirmed in November 2016.
- Common name:
- Western Painted Turtle - Prairie / Western Boreal - Canadian Shield population
- Scientific name:
- Chrysemys picta bellii
- Status:
- Not at Risk
- Reason for designation:
- This population occurs in numerous waterbodies across its wide range. Local declines have undoubtedly occurred from habitat loss, alteration, and fragmentation, and these threats continue. However, there is no evidence of widespread declines or range contraction, and large areas of habitat are still relatively remote and with low threats.
- Occurrence:
- Alberta, Saskatchewan, Manitoba, Ontario
- Status history:
- Designated Not at Risk in April 2006. Status re-examined and confirmed in November 2016.
COSEWIC executive summary
Western Painted Turtle
Chrysemys picta bellii
Pacific Coast population
Intermountain – Rocky Mountain population
Prairie/Western Boreal – Canadian Shield population
Wildlife species description and significance
Western Painted Turtles (Chrysemys picta bellii, Gray 1831) are relatively large-bodied painted turtles with adults reaching up to 25 cm in carapace (dorsal shell) length. The subspecies has a distinct bright orange plastron (ventral shell) with a complex pattern of reticulated black lines.
In Canada, Western Painted Turtles occur in three discrete broad areas, corresponding to the following designatable units: Pacific Coast and Intermountain – Rocky Mountain populations in British Columbia, and Prairie/Western Boreal – Canadian Shield population east of the Rocky Mountains. Western Painted turtles in British Columbia show extensive genetic differentiation, sometimes over short distances. This report recognizes these differences but maintains the three designatable units from the previous COSEWIC assessment (2006), based on considerations of discreteness and significance of the variation.
Distribution
The distribution of the Prairie/Western Boreal – Canadian Shield population extends from the Algoma region of northern Ontario, west across the southern prairies to southeastern Alberta. Its natural range in Alberta is limited to the Milk River watershed, but numerous introduced subpopulations exist, some of which have been well established for close to a century or longer. The Intermountain – Rocky Mountain population occurs primarily in major valley bottoms between mountain ranges across the Southern Interior of British Columbia. Major population centres include the Thompson and Okanagan valleys, the southern East Kootenay Trench, and the southern Cariboo Region. The Pacific Coast population occurs in the Lower Fraser Valley from about Chilliwack to Greater Vancouver, Sunshine Coast north to Powell River, Texada Island, and parts of Vancouver Island including the Capital Regional District, Nanaimo area, and Alberni Valley.
Habitat
Western Painted Turtles are highly aquatic and are found in shallow waters of ponds, lakes, oxbows, and marshes, in slow-moving stream reaches, and in quiet backwater sloughs of rivers. Usually, their habitat contains muddy substrates with emergent aquatic vegetation, exposed vegetation root mats, floating logs, and open banks. Painted Turtles prefer floating logs, branches, or other emergent objects for basking. Nesting habitats are on land adjacent to aquatic foraging habitat, usually within 200 m of the water body, typically on gentle south-facing slopes. Eggs are laid in well-drained sites with soil, sand or gravel substrates that have minimal or no plant cover.
Biology
Adult Western Painted Turtles are omnivorous and forage on aquatic vegetation, carrion, and small live prey in shallow waters during the active season from spring to autumn. Younger turtles tend to be more carnivorous and feed on a variety of invertebrates and tadpoles. Eggs hatch in autumn, but hatchlings usually remain in the nest for their first winter. Hatchlings are freeze-tolerant to at least -10°C. Painted Turtles are considered to be one of the most tolerant vertebrates of hypoxic (oxygen-poor) conditions. Predation on eggs and hatchlings can be very high. Age at maturity is thought to range from 4 to 10 years for males and from 6 to 15 years for females. Generation time is estimated to be approximately 25 to 30 years for the Pacific Coast population and 30 to 40 years for the Intermountain – Rocky Mountain and Prairie/Western Boreal – Canadian Shield populations.
Population size and trends
There are no accurate estimates of population size for any of the three populations. The Pacific Coast population probably consists of approximately 3000 or fewer adults. The Intermountain – Rocky Mountain population may have 5,000 – 10,000 adults, while the Prairie/Western Boreal – Canadian Shield population may have 10,000s of adults. None of these estimates are based on robust methods. Inferred from habitat loss, the Pacific Coast population has most likely declined from historical levels by an unknown percentage. The number of known localities has increased greatly over the past ten years due to search efforts. The Intermountain – Rocky Mountain population has also likely suffered declines from historical levels, especially in the Okanagan Valley, based on habitat trends. Population trends for the Prairie/Western Boreal – Canadian Shield population are unknown, but localized declines are likely.
Threats and limiting factors
The main threats to Western Painted Turtles are from habitat loss and alteration, and road mortality. Habitat loss and alteration result from a variety of threats including residential and industrial development, agricultural activities that drain or infill water bodies, and free-ranging cattle that degrade water bodies. Turtles face threats from road mortality during seasonal migrations, when females move from water bodies to terrestrial nesting areas and when both males and females disperse. Other threats include invasive species, such as American Bullfrogs on the coast that prey on hatchlings and plants that reduce the quality of their nesting grounds. Recreational use can disturb basking and nesting turtles. Off-road vehicle use may degrade ponds and adjacent riparian habitats or damage nesting sites. Pollution runoff may affect water quality; sources include agricultural and septic tank runoff and industrial pollutants. Combined, threats for the Pacific Coast population were scored as “Very High”, for the Intermountain – Rocky Mountain population as “High”, and for the Prairie/Western Boreal – Canadian Shield population as “Medium”.
Protection, status, and ranks
Western Painted Turtle was assessed by COSEWIC as three populations in 2006: Pacific Coast - Endangered; Intermountain-Rocky Mountain - Special Concern; and Prairie/Western Boreal – Canadian Shield - Not at Risk. The Pacific Coast and Intermountain – Rocky Mountain populations were placed on Schedule 1 of the Species at Risk Act (SARA) in their respective designations. A provincial recovery plan for the Pacific Coast population was finalized in June 2016. Critical Habitat has been drafted but not yet identified under SARA. There are no specific habitat protection measures in place for Western Painted Turtles. The species does benefit from some municipal planning measures designed to maintain environmentally sensitive areas and certain water bodies. These measures have limited scope and application.
Technical summary: Pacific Coast population
- Scientific name:
- Chrysemys picta bellii
- English name:
- Western Painted Turtle, Pacific Coast population
- French name:
- Tortue peinte de l’Ouest, population de la côte du Pacifique
- Range of occurrence in Canada:
- British Columbia
Demographic information
Summary items | Information |
---|---|
Generation time (usually average age of parents in the population; indicate if another method of estimating generation time indicated in the IUCN guidelines (2011) is being used) | ~25 to 30 yrs |
Is there an [observed, inferred, or projected] continuing decline in number of mature individuals? | Yes, inferred and projected decline |
Estimated percent of continuing decline in total number of mature individuals within [5 years or 2 generations] | Unknown. Quantifying any decline is difficult because of lack of baseline data. COSEWIC (2006) reported “probably fewer than 250 adults”. Current estimate is in the thousands, but this reflects better inventory, not more turtles. |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over the last [10 years, or 3 generations]. | An inferred and suspected decline of >30% over the past 3 generations (75 – 90 years) is probable due to wetland loss. Over large portions of the range (Lower Fraser Valley and Greater Victoria), the losses have been >70%. |
[Projected or suspected] percent [reduction or increase] in total number of mature individuals over the next [10 years, or 3 generations]. | A suspected decline of >30% is plausible, based on threats and the overlap of the distribution with populated areas (14.3% increase in human population growth is expected over the next 10 years). Threats calculator score of “Very High - High” overall threat impact suggests a decline of 50 – 100% for “Very High” threat or 10 – 70% for “High” threat. |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over any [10 years, or 3 generations] period, over a time period including both the past and the future. | An inferred and suspected decline of >30% is plausible due to habitat loss and continuing threats (see Box 5 above) |
Are the causes of the decline a. clearly reversible and b. understood and c. ceased? |
|
Are there extreme fluctuations in number of mature individuals? | No |
Extent and occupancy information
Summary items | information |
---|---|
Estimated extent of occurrence | 19,256 km2 (including ocean); 12,483 km2 if ocean is excluded |
Index of area of occupancy (IAO) (Always report 2x2 grid value). |
528 km2 based on 2x2 km grid method and known localities; a small number of undocumented localities may exist. |
Is the population “severely fragmented” i.e. is >50% of its total area of occupancy in habitat patches that are (a) smaller than would be required to support a viable population, and (b) separated from other habitat patches by a distance larger than the species can be expected to disperse? |
|
Number of “locations”i (use plausible range to reflect uncertainty if appropriate) | >>>10 “Location” may best be defined as discrete water bodies currently known to support Western Painted Turtles, as each faces a different set threats (n > 80). |
Is there an [observed, inferred, or projected] decline in extent of occurrence? | Possible decline inferred from wetland habitat loss |
Is there an [observed, inferred, or projected] decline in index of area of occupancy? | Decline inferred from wetland habitat loss and projected based on threats, particularly for small populations in the Fraser Valley |
Is there an [observed, inferred, or projected] decline in number of subpopulations? | Yes, inferred and projected decline based on habitat trends and threats. Some specific sites (water bodies) may be at risk of extirpation. |
Is there an [observed, inferred, or projected] decline in number of “locations”i? | Yes, inferred and projected decline. Some water bodies have very few individuals with no observed reproduction. |
Is there an [observed, inferred, or projected] decline in [area, extent and/or quality] of habitat? | Yes, observed, inferred and projected decline. Continuing decline in habitat quantity and quality is projected primarily due to continuing urban and rural development. |
Are there extreme fluctuations in number of subpopulations? | No |
Are there extreme fluctuations in number of “locations”i? | No |
Are there extreme fluctuations in extent of occurrence? | No |
Are there extreme fluctuations in index of area of occupancy? | No |
i Note: See Definitions and abbreviations on COSEWIC website and IUCN (Feb 2014) for more information on this term.
Number of mature individuals (in each subpopulation)
Population | N clones (index of mature individuals) |
---|---|
Subpopulations (give plausible ranges): 39 clustered occurrences, each of which may represent a subpopulation, within the following areas. Lower Fraser Valley (~30% – 43% of population); most subpopulations are small (well below 100 adults); Nicomen Slough may have 300-350 adults. Sunshine Coast/Texada & Nelson islands (~35% – 43% of population): Most subpopulations have <100 adults; one, Garden Bay - Ruby Lake has 355-605 and another, Nelson Island, may have 100 – 400 adults. Alberni Valley/Nanaimo/Gulf Islands (~12% – 16% of population): Subpopulation sizes are unknown. Capital Regional District, Vancouver Island (~10% – 11% of population): Most subpopulations are probably small (well below 100 adults). |
Probably ~3000 adults (could be below 2500 adults), but no robust population estimates are available. Population sizes for many sites on Vancouver Island, in particular, are unknown. |
Quantitative analysis
Summary items | Information |
---|---|
Probability of extinction in the wild is at least [20% within 20 years or 5 generations, or 10% within 100 years] | Not completed due to lack of data. |
Threats (actual or imminent, to populations or habitats, from highest impact to least)
Summary items | Information |
---|---|
High-Medium impact threats: | Invasive and other problematic species and genes |
Medium and Medium-Low impact threats: | Residential and Commercial Development; Transportation & service corridors; Natural system modifications |
Low impact threats: | Agriculture and aquaculture; Energy production and mining; Biological resource use; Human intrusions & disturbance |
Unknown impact threats: | Pollution; Climate change & severe weather |
Was a threats calculator completed for this species? | Yes, on January 27, 2015. Final review: December 2015. |
Rescue effect (immigration from outside Canada)
Summary items | Information |
---|---|
Status of outside population(s) most likely to provide immigrants to Canada. | Washington State: S4S5 Only Painted Turtles in Salish Sea (Puget Sound) area would be feasible to provide rescue. |
Is immigration known or possible? | Possible to Lower Fraser Valley, not Vancouver Island or Sunshine Coast areas |
Would immigrants be adapted to survive in Canada? | Yes |
Is there sufficient habitat for immigrants in Canada? | Currently habitat is available but declining and fragmented. |
Are conditions deteriorating in Canada?ii | In some areas of the population, yes. |
Are conditions for the source population deteriorating?ii | In some areas, yes. |
Is the Canadian population considered to be a sink?+ | No |
Is rescue from outside populations likely? | No. Natural immigration would be only feasible for Lower Fraser Valley turtles but is unlikely, as the area is intensively developed. Rescue is not considered feasible for Vancouver Island and Sunshine Coast areas without human assistance. |
ii See Table 3 (Guidelines for modifying status assessment based on rescue effect).
Data-sensitive species
Summary items | Information |
---|---|
Is this a data sensitive species? | No |
Status history
Summary items | Information |
---|---|
COSEWIC: | Designated Endangered in April 2006. Status re-examined and designated Threatened in November 2016. |
Status and reasons for designation:
Summary items | Information |
---|---|
Status: | Threatened |
Alpha-numeric code: | A2ce+3ce+4ce; C2a(i) |
Reasons for designation: | The distribution of this population overlaps with an area of dense human population in southwestern British Columbia, including the Lower Fraser Valley, where wetland loss has been extensive. Across its range, this population continues to face multiple threats from habitat loss and alteration, road mortality, and introduced species, such as Bullfrogs and introduced turtles. Survey efforts within the past 10 years have revealed many new localities, bringing the total number of occupied water bodies to over 80, grouped within 39 clusters. However, the Canadian population and local subpopulations are small, and many, especially in the Lower Fraser Valley, are declining or considered not viable. The long-term persistence of the Canadian population remains precarious. |
Applicability of criteria:
Summary items | Information |
---|---|
Criterion A (Decline in total number of mature individuals): |
Meets Threatened A2ce based on past wetland loss, which is inferred and suspected to have resulted in a population decline of > 30%. Meets A3ce because there is a suspected population decline of at least 30% based on a combination of habitat loss, as inferred from projected human population growth, and threats calculator results with “very high” (50 – 100% decline) to “high” (10 – 70% decline) threat impact. Threatened A4ce also applies based on past and future inferred habitat loss and suspected declines from multiple threats, as per threats calculator results, which are likely to exceed 30%. Subcriterion “c” applies because a decline in index of area of occupancy, extent of occurrence and/or quality of habitat is inferred and suspected. Subcriterion “e” is a contributing factor because the effects of introduced taxa, mainly due to American Bullfrogs that are predators of hatchling painted turtles and introduced turtles, such as Red-eared Sliders, that may compete with the Western Painted Turtles. |
Criterion B (Small distribution range and decline or fluctuation): |
Does not meet criteria. While EOO and IAO are below thresholds for Threatened, only one subcriterion (b) is met. |
Criterion C (Small and declining number of mature individuals): |
Meets Threatened C2a(i) because there is a continuing inferred and projected decline, the population size is below the threshold of 10,000, and no subpopulation is larger than1000 adults. Close to meeting Endangered C2a(i) because the population could plausibly be less than 2500 adults and most subpopulations consist of much less than 250 adults; however, the estimated size of two and possibly three subpopulations exceeds this threshold value. |
Criterion D (Very small or restricted population): |
Does not meet criteria. The population is neither very small nor very restricted according to criteria. |
Criterion E (Quantitative analysis): |
Does not meet criteria. PVA was not done due to insufficient information. |
Technical summary: Intermountain – Rocky Mountain population
- Scientific name:
- Chrysemys picta bellii
- English name:
- Western Painted Turtle, Intermountain – Rocky Mountain population
- French name:
- Tortue peinte de l’Ouest, population intramontagnarde - des Rocheuses
- Range of occurrence in Canada:
- British Columbia
Demographic information
Summary items | Information |
---|---|
Generation time (usually average age of parents in the population; indicate if another method of estimating generation time indicated in the IUCN guidelines (2011) is being used) | 30 to 40 yrs |
Is there an [observed, inferred, or projected] continuing decline in number of mature individuals? | Yes, inferred past declines likely in some areas (e.g., Okanagan Valley) based on habitat loss; projected decline based on threats. |
Estimated percent of continuing decline in total number of mature individuals within [5 years or 2 generations] | Unknown |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over the last [10 years, or 3 generations]. | Unknown |
[Projected or suspected] percent [reduction or increase] in total number of mature individuals over the next [10 years, or 3 generations]. | Suspected decline of 10% to 70% (“High” threat impact) or 8% - 30% (“Medium” threat impact), based on threats calculation results. |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over any [10 years, or 3 generations] period, over a time period including both the past and the future. | Unknown |
Are the causes of the decline a. clearly reversible and b. understood and c. ceased? |
|
Are there extreme fluctuations in number of mature individuals? | No |
Extent and occupancy information
Summary items | information |
---|---|
Estimated extent of occurrence | 118,454 km2 |
Index of area of occupancy (IAO) (Always report 2x2 grid value). |
1176 km2 |
Is the population “severely fragmented” i.e. is >50% of its total area of occupancy is in habitat patches that are (a) smaller than would be required to support a viable population, and (b) separated from other habitat patches by a distance larger than the species can be expected to disperse? | Probably not
|
Number of “locations”iii (use plausible range to reflect uncertainty if appropriate) | >>>10 Approximately 200 water bodies are estimated to support Western Painted Turtles. These correspond to locations, as each is faced by a separate complement of threats. |
Is there an [observed, inferred, or projected] decline in extent of occurrence? | No |
Is there an [observed, inferred, or projected] decline in index of area of occupancy? | Unknown, probable decline inferred from wetland habitat loss |
Is there an [observed, inferred, or projected] decline in number of subpopulations? | Unknown |
Is there an [observed, inferred, or projected] decline in number of “locations”iii? | Unknown |
Is there an [observed, inferred, or projected] decline in [area, extent and/or quality] of habitat? | Unknown |
Are there extreme fluctuations in number of subpopulations? | No |
Are there extreme fluctuations in number of “locations”iii? | No |
Are there extreme fluctuations in extent of occurrence? | No |
Are there extreme fluctuations in index of area of occupancy? | No |
iiii See Definitions and abbreviations on COSEWIC website and IUCN (Feb 2014) for more information on this term.
Number of mature individuals (in each subpopulation)
Subpopulations There are clusters of occurrences in the following areas: |
Minimum numbers alive: |
---|---|
Okanagan / Thompson / Nicola | Unknown number of turtles and water bodies supporting turtles. Likely >100 water bodies. >1500 estimated (likely including sub-adults) in 13 ponds in one South Okanagan study. |
Creston | > 200 estimated adults, probably more. |
Revelstoke | 160 – 325 adults and sub-adults. |
East Kootenay | Unknown. Minimum 41 water bodies with turtles; none have had recent surveys or population estimates. |
West Kootenay | Unknown. Minimum 13 water bodies with turtles; none have had recent surveys or population estimates. |
Nisconlith Lakes / Shuswap | 462 (likely includes sub-adults) from 15 water bodies; several other water bodies known to support turtles. |
Cariboo | Unknown. Minimum 30 water bodies with turtles, none with population estimates. |
Total | Unknown but thousands; possibly 5000 - 10,000 Discerning adults from sub-adults is difficult and they are rarely differentiated. Most reports provide numbers of individuals observed. Numbers of individuals in any given water body can vary widely from <10 to >100. |
Quantitative analysis
Summary items | Information |
---|---|
Probability of extinction in the wild is at least [20% within 20 years or 5 generations, or 10% within 100 years]. | Not completed due to lack of data |
Threats (actual or imminent, to populations or habitats, from highest impact to least)
Summary items | Information |
---|---|
Medium-Low impact threats: | Transportation and Service Corridors |
Low impact threats: | Residential & commercial development; Agriculture & aquaculture; Biological resource use; Human intrusions & disturbance; Natural system modifications |
Unknown impact threats: | Invasive & other problematic species & genes; Pollution; Climate change & severe weather |
Was a threats calculator completed for this species? | Yes, on January 27, 2015. Final review: December, 2015. |
Rescue effect (immigration from outside Canada)
Summary items | Information |
---|---|
Status of outside population(s) most likely to provide immigrants to Canada. | Washington: S4S5; Idaho: S4; Montana: S4 |
Is immigration known or possible? | Possible but limited |
Would immigrants be adapted to survive in Canada? | Yes |
Is there sufficient habitat for immigrants in Canada? | Yes |
Are conditions deteriorating in Canada?iv | In some areas of DU, yes |
Are conditions for the source population deteriorating?iv | No |
Is the Canadian population considered to be a sink?iv | No |
Is rescue from outside populations likely? | Natural recolonization from the United States is possible but would be very slow, over the course of numerous generations. |
iv See Table 3 (Guidelines for modifying status assessment based on rescue effect).
Data-sensitive species
Summary items | Information |
---|---|
Is this a data sensitive species? | No |
Status history
Summary items | Information |
---|---|
COSEWIC: | Designated Special Concern in April 2006. Status re-examined and confirmed in November 2016. |
Status and reasons for designation:
Summary items | Information |
---|---|
Status: | Special Concern |
Alpha-numeric code: | Not applicable |
Reasons for designation: | This population occurs mainly in larger valleys, which have been subjected to extensive wetland loss and habitat alteration from human activities. The population is suspected to be declining because of continuing loss and fragmentation of habitats and road mortality. The number of turtles is likely small, and the population may become Threatened if threats are neither reversed nor managed with demonstrable effectiveness. |
Applicability of criteria:
Summary items | Information |
---|---|
Criterion A (Decline in total number of mature individuals): |
Does not meet criteria. A decline in numbers of adults is inferred from habitat loss and human population growth and suspected based on threats (“high” to “medium” threat impact, implying 8% - 70% decline over next 3 generations); however, there is much uncertainty about the magnitude of the decline. |
Criterion B (Small distribution range and decline or fluctuation): |
Does not meet criteria. While the IAO is below threshold for Threatened, only one subcriterion (b) is met. |
Criterion C (Small and declining number of mature individuals): |
Does not meet criteria. The population size is probably below the threshold for Threatened (10,000 adults), although there are no robust estimates, and there is a projected and inferred continuing decline. However, there are numerous poorly defined subpopulations, the sizes of which are unknown; hence subcriterion a(i) is not met. |
Criterion D (Very small or restricted population): |
Does not meet criteria. The population is neither very small nor very restricted according to criteria. |
Criterion E (Quantitative analysis): |
PVA was not done due to insufficient information. |
Technical summary: Prairie/Western Boreal – Canadian Shield population
- Scientific name:
- Chrysemys picta bellii
- English name:
- Western Painted Turtle, Prairie/Western Boreal – Canadian Shield population
- French name:
- Tortue peinte de l’Ouest, population des Prairies / Boréale de l'Ouest - Bouclier canadien
- Range of occurrence in Canada:
- Alberta, Saskatchewan, Manitoba, Ontario
Demographic information
Summary items | Information |
---|---|
Generation time (usually average age of parents in the population; indicate if another method of estimating generation time indicated in the IUCN guidelines (2011) is being used). | 30 to 40 yrs |
Is there an [observed, inferred, or projected] continuing decline in number of mature individuals? | Yes, inferred decline; some local declines have undoubtedly occurred, especially on the Prairies due to habitat loss |
Estimated percent of continuing decline in total number of mature individuals within [5 years or 2 generations]. | Unknown |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over the last [10 years, or 3 generations]. | Unknown |
[Projected or suspected] percent [reduction or increase] in total number of mature individuals over the next [10 years, or 3 generations]. | Suspected reduction of 8% to 30% based on “Medium” overall threat impact according to the threats calculator results. The actual value is probably towards the lower end of this range (<10%), based on wide distribution of the turtles, including remote areas. |
[Observed, estimated, inferred, or suspected] percent [reduction or increase] in total number of mature individuals over any [10 years, or 3 generations] period, over a time period including both the past and the future. | Unknown |
Are the causes of the decline a. clearly reversible and b. understood and c. ceased? |
|
Are there extreme fluctuations in number of mature individuals? | No |
Extent and occupancy information
Summary items | information |
---|---|
Estimated extent of occurrence | 449,944 km2 |
Index of area of occupancy (IAO) (Always report 2x2 grid value). |
1336 km2 based on known observations; actual area of occupancy is likely much larger |
Is the population “severely fragmented” i.e. is >50% of its total area of occupancy is in habitat patches that are (a) smaller than would be required to support a viable population, and (b) separated from other habitat patches by a distance larger than the species can be expected to disperse? |
|
Number of “locations”v (use plausible range to reflect uncertainty if appropriate) | >>>10 Maybe a thousand or more discrete water bodies are occupied, each of which is subject to a different complement of threats |
Is there an [observed, inferred, or projected] decline in extent of occurrence? | No |
Is there an [observed, inferred, or projected] decline in index of area of occupancy? | No |
Is there an [observed, inferred, or projected] decline in number of subpopulations? | Inferred decline based on habitat loss; some local subpopulations in individual water bodies have undoubtedly been lost |
Is there an [observed, inferred, or projected] decline in number of “locations”v? | Unknown |
Is there an [observed, inferred, or projected] decline in [area, extent and/or quality] of habitat? | Unknown |
Are there extreme fluctuations in number of subpopulations? | No |
Are there extreme fluctuations in number of “locations”v? | No |
Are there extreme fluctuations in extent of occurrence? | No |
Are there extreme fluctuations in index of area of occupancy? | No |
v See Definitions and abbreviations on COSEWIC website and IUCN (Feb 2014) for more information on this term.
Number of mature individuals (in each subpopulation)
Population | N clones (in each subpopulation) |
---|---|
Total | Unknown but probably tens of thousands, based on the wide distribution of the turtles |
Quantitative analysis
Summary items | Information |
---|---|
Probability of extinction in the wild is at least [20% within 20 years or 5 generations, or 10% within 100 years]. | Not completed due to lack of data |
Threats (actual or imminent, to populations or habitats, from highest impact to least)
Summary items | Information |
---|---|
Low impact threats: | Residential & commercial development; Energy production & mining; Transportation & service corridors; Biological resource use; Human intrusions & disturbance; Natural system modifications. |
Unknown impact threats: | Invasive & other problematic species & genes; Pollution; Climate change & severe weather |
Was a threats calculator completed for this species? | Yes, on January 29, 2015. Final Review: December 2015. |
Rescue effect (immigration from outside Canada)
Summary items | Information |
---|---|
Status of outside population(s) most likely to provide immigrants to Canada. | Montana: S4; North Dakota: S5; Minnesota: S5; Wisconsin: SNR; Michigan: S5 |
Is immigration known or possible? | Possible but limited |
Would immigrants be adapted to survive in Canada? | Yes |
Is there sufficient habitat for immigrants in Canada? | Yes |
Are conditions deteriorating in Canada?vi | No, but local declines are possible |
Are conditions for the source population deteriorating?vi | Not significantly different from Canada |
Is the Canadian population considered to be a sink?vi | No |
Is rescue from outside populations likely? | Possible, but limited based on limited dispersal capabilities of the turtles. |
vi See Table 3 (Guidelines for modifying status assessment based on rescue effect).
Data-sensitive species
Summary items | Information |
---|---|
Is this a data sensitive species? | No. |
Status history
Summary items | Information |
---|---|
COSEWIC: | Designated Not at Risk in April 2006. Status re-examined and confirmed in November 2016. |
Status and reasons for designation:
Summary items | Information |
---|---|
Status: | Not at Risk |
Alpha-numeric code: | No criteria |
Reasons for designation: | This population occurs in numerous water bodies across its wide range. Local declines have undoubtedly occurred from habitat loss, alteration, and fragmentation, and there threats continue. However, there is no evidence of widespread declines or range contraction, and large areas of habitat are still relatively remote and with low threats. |
Applicability of criteria:
Summary items | Information |
---|---|
Criterion A (Decline in total number of mature individuals): |
Does not meet criteria. Local declines have undoubtedly occurred due to habitat loss, alteration, and fragmentation, but the magnitude of the decline for the entire Canadian population is unknown and expected to be low (well below threshold values). |
Criterion B (Small distribution range and decline or fluctuation): |
Does not meet criteria. The calculated IAO is below threshold for Threatened but is likely an underestimate due to incomplete distributional information over the wide range of the population. Furthermore, only one sub-criterion (b) is met. |
Criterion C (Small and declining number of mature individuals): |
Does not meet criteria. While the number of adults is unknown, it is likely to greatly exceed the thresholds. |
Criterion D (Very small or restricted population): |
Does not meet criteria. The population is neither very small nor very restricted according to criteria. |
Criterion E (Quantitative analysis): |
PVA was not done due to insufficient information |
Preface
Advances in knowledge of the Western Painted Turtle since the previous status report (COSEWIC 2006) have been in genetic structure and distribution of British Columbia populations. The entire genome of the Western Painted Turtle is now known (Shaffer et al. 2013), and work in British Columbia has initiated an understanding of the conservation genetics of the subspecies (Jensen 2013; Jensen et al. 2014a). The number of known localities on the southwest coast of British Columbia, especially on Vancouver Island, has increased greatly due to survey efforts over the past 10 years. There remains little knowledge available for the species east of British Columbia, although Western Painted Turtle is now being tracked by the Ontario provincial government as a species of interest.
A provincial recovery strategy for the Pacific Coast population has been posted, including draft Critical Habitat delineation (Western Painted Turtle Recovery Team 2016). An Aboriginal Traditional Knowledge (ATK) source report has been prepared for the Western Painted Turtle (Armstrong 2014). The report lists three potential sources of information for turtles in British Columbia; only one report was available.
COSEWIC history
The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) was created in 1977 as a result of a recommendation at the Federal-Provincial Wildlife Conference held in 1976. It arose from the need for a single, official, scientifically sound, national listing of wildlife species at risk. In 1978, COSEWIC designated its first species and produced its first list of Canadian species at risk. Species designated at meetings of the full committee are added to the list. On June 5, 2003, the Species at Risk Act (SARA) was proclaimed. SARA establishes COSEWIC as an advisory body ensuring that species will continue to be assessed under a rigorous and independent scientific process.
COSEWIC mandate
The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) assesses the national status of wild species, subspecies, varieties, or other designatable units that are considered to be at risk in Canada. Designations are made on native species for the following taxonomic groups: mammals, birds, reptiles, amphibians, fishes, arthropods, molluscs, vascular plants, mosses, and lichens.
COSEWIC membership
COSEWIC comprises members from each provincial and territorial government wildlife agency, four federal entities (Canadian Wildlife Service, Parks Canada Agency, Department of Fisheries and Oceans, and the Federal Biodiversity Information Partnership, chaired by the Canadian Museum of Nature), three non-government science members and the co-chairs of the species specialist subcommittees and the Aboriginal Traditional Knowledge subcommittee. The Committee meets to consider status reports on candidate species.
Definitions (2016)
- Wildlife species
- A species, subspecies, variety, or geographically or genetically distinct population of animal, plant or other organism, other than a bacterium or virus, that is wild by nature and is either native to Canada or has extended its range into Canada without human intervention and has been present in Canada for at least 50 years.
- Extinct (X)
- A wildlife species that no longer exists.
- Extirpated (XT)
- A wildlife species no longer existing in the wild in Canada, but occurring elsewhere.
- Endangered (E)
- A wildlife species facing imminent extirpation or extinction.
- Threatened (T)
- A wildlife species likely to become endangered if limiting factors are not reversed.
-
Special concern (SC)
(Note: Formerly described as “Vulnerable” from 1990 to 1999, or “Rare” prior to 1990.) - A wildlife species that may become a threatened or an endangered species because of a combination of biological characteristics and identified threats.
-
Not at risk (NAR)
(Note: Formerly described as “Not In Any Category”, or “No Designation Required.”) - A wildlife species that has been evaluated and found to be not at risk of extinction given the current circumstances.
-
Data deficient (DD)
(Note: Formerly described as “Indeterminate” from 1994 to 1999 or “ISIBD” [insufficient scientific information on which to base a designation] prior to 1994. Definition of the [DD] category revised in 2006.) - A category that applies when the available information is insufficient (a) to resolve a species’ eligibility for assessment or (b) to permit an assessment of the species’ risk of extinction.
The Canadian Wildlife Service, Environment and Climate Change Canada, provides full administrative and financial support to the COSEWIC Secretariat.
Wildlife species description and significance
Name and classification
The Painted Turtle (Chrysemys picta, Schneider 1783) is a member of the marsh and pond turtle family, Emydidae, and is the sole member of the genus Chrysemys (Ernst 1971). In Canada, three subspecies of Painted Turtle are currently recognized: Western Painted Turtle(C. p. bellii, Gray 1831), Midland Painted Turtle (C. p. marginata, Agassiz 1857), and Eastern Painted Turtle(C. p. picta, Schneider 1783). A fourth subspecies, Southern Painted Turtle(C. p. dorsalis, Agassiz 1857), occurs in the southern United States (Ernst and Lovich 2009). Subspecies differentiation is based largely on morphological features such as body size, and shell colour and pattern (Ernst and Lovich 2009). Recent genetic work on Western Painted Turtle suggests it is clearly a distinctive subspecies within the C. picta species complex (Jensen et al. 2015).
Morphological description
The Western Painted Turtle is a medium-sized freshwater turtle and the largest-bodied subspecies of painted turtles with adults reaching approximately 25 cm in carapace length (Matsuda et al. 2006; Ernst and Lovich 2009). Marchand et al. (2015) recently reported the largest documented C. picta individual, a female from Wascana Marsh (Regina, Saskatchewan) with a straight-line carapace length of 266 mm and weight of 2590 g. Painted Turtles have a low, smooth carapace that is darkly coloured (Figure 1). In the different subspecies, the unhinged plastron (ventral shell) varies from solid yellow to orange with reticulated black patterning (Figure 2). The plastron of the Western Painted Turtle is bright orange or reddish, and a dark mark extends along the ventral midline radiating outwards in a complex pattern of reticulated black lines. The head, tail and limbs are dark with yellow stripes. Shell and appendage colour patterns are present through all life stages.
Adult females tend to be larger than males. Males have longer claws on their webbed forefeet, longer and wider tails, and the cloacal opening is positioned closer to the end of the tail than the carapace (upper shell) compared to females (Stebbins 1966).
Population spatial structure and variability
While detailed genetic information is available from British Columbia (Jensen et al. 2014a), no such information is available for the Prairie/Western Boreal – Canadian Shield population. Given the extent of genetic variation among populations in British Columbia, similar differences are probable within the Prairie/Western Boreal – Canadian Shield population but remain unknown.
The physical geography of southern British Columbia presents significant barriers to turtle movement. The Pacific Coast population is isolated from other populations to the east by the Coast and Cascade mountain ranges. This separation is clearly evident for Western Painted Turtles in western Washington State and in British Columbia (Barela and Olson 2014). Similarly, mountain barriers to turtle movement occur between the Okanagan and Columbia river basins (between Intermountain and Rocky Mountain populations) and within the Rocky Mountain population between the Columbia River and lower Kootenay River (Creston Valley, British Columbia and the upper Kootenay watershed) (East Kootenay region).
At the northern limit of the Western Painted Turtle’s distribution in British Columbia, there is a gap in occurrences between the Kamloops / North Thompson River area and the southern Cariboo region (Bonaparte Plateau). Genetic evidence (Jensen et al. 2014a) suggests that Western Painted Turtles in the Cariboo are distinct from other populations, but this is based on sampling turtles (n = 24) from only one lake near Williams Lake.
The northern limit of the Painted Turtles’ range is thought to be influenced by low winter temperature and/or anoxia in water bodies (St. Clair and Gregory 1990). Despite this, introduced populations have persisted well north of their natural range limit (e.g., north of Grande Prairie and in Edmonton, Alberta, Saskatoon, Saskatchewan, and McBride, British Columbia). Thus, current northern limits may be historical and a reflection of Western Painted Turtles’ range expansion following glaciation rather than due to inability of the turtles to survive farther north (Starkey et al. 2003).
Jensen et al. (2014a) sampled 475 individual Western Painted Turtles captured in 25 water bodies across southern British Columbia (mean = 19 turtles per water body, SD = 6.5, range = 6-37 individuals) and genotyped individuals at nine neutral microsatellite loci. They found a significant amount of pair-wise differentiation among water body comparisons (see Table 2 in Jensen et al. 2014a). Six genetic clusters were identified: three along the south coast, the Cariboo region (based on one water body), the Thompson / Okanagan region (including Revelstoke), and the Kootenay region (Figure 3). Genotypic frequencies varied widely among these clusters, with the six clusters explaining most of the variation (based on Analysis of Molecular Variance, AMOVA) relative to either the status quo of two designatable units in British Columbia, or three faunal provinces (Jensen et al. 2014a). Jensen et al. (2014a) sequenced a subset of the above individuals at the mitochondrial DNA (mtDNA) control region and found no deep divisions. The most common haplotype was shared across the British Columbia distribution, with two novel haplotypes recovered not previously detected in the entire North American range. A star-like haplotype network was reconstructed suggesting no regional structuring, but was consistent with the relatively recent colonization history following the last glaciation as suggested by Starkey et al. (2003).
Designatable units
The Western Painted Turtle was previously assessed by COSEWIC with three designatable units (DUs), based on distribution patterns and combinations of five terrestrial amphibian and reptile faunal provinces (COSEWIC 2013): (1) Pacific Coast, (2) Intermountain and Rocky Mountain (combined), and (3) Prairie/Western Boreal and Canadian Shield (combined). This report maintains these three DUs.
Recent genetic evidence (Jensen et al. 2014a) indicates that Western Painted Turtles have a high degree of genetic variation among regions, and it was suggested that six DUs in British Columbia alone may be warranted. Jensen et al.’s (2014a) divisions are based primarily on genotypic frequencies in each population based on microsatellite analyses. Frequency differences are considered less robust to meet the criterion for discreteness between DUs (COSEWIC 2013). There is also limited, if any, evidence to support the required criterion of “significance” (COSEWIC 2013). There is no genetic evidence of unique local adaptations among Western Painted Turtle in Canada beyond the detection of “novel Control Region haplotypes” in British Columbia that have not been identified elsewhere in North America (Jensen et al. 2014a: p. 269).
Within the two British Columbia DUs, there are no significant differences in ecological settings that would warrant further splitting. Jensen et al.’s (2014a) recommendations are based on Western Painted Turtles from a limited number of water bodies (n = 25 of some 500 water bodies). They recognize a Sunshine Coast population based on two ponds that are 5 km apart (within dispersal capabilities of individual turtles). These two populations (Ruby Lake and Klein Lake) are genetically distinct from West Lake (in their putative “Sunshine Coast-Gulf Island-Mid-Vancouver Island’, [SGV] population) that is just 10 km distant, albeit on Nelson Island, across the ~1.5 km wide marine Agamemnon Channel. West Lake turtles, however, are genetically allied to other “SGV” turtles that are far more isolated (broad marine spans, including the Strait of Georgia) on Texada Island and in the Alberni Valley. That turtles in West Lake have retained similar haplotypes despite an unknown length of isolation from Texada and Alberni Valley turtles but are highly differentiated from nearby turtles on the Sechelt Peninsula makes little ecological sense.
Given the long-standing debate on the origins of Western Painted Turtles on the British Columbia coast (e.g., Storer 1937; McTaggart Cowan 1938; Carl 1952 in Engelstoft and Ovaska 2008) and the question of where turtles are ‘native’ and where they are introduced, a conservative approach is to lump all Western Painted Turtles around British Columbia’s south coast into one DU. While further subdivisions may warrant recognition as management units, there is insufficient evidence for further splitting of the DU at this time.
If the Pacific Coast population is not to be split based on the basis of demonstrated genetic variation and evidence of unique haplotypes, then similarly splitting the Intermountain – Rocky Mountain faunal provinces, based on the same genetic evidence, is not warranted. The geography of British Columbia’s interior is not conducive for turtles dispersing between major valleys (e.g., Cariboo to Okanagan to Columbia to Kootenay), so some level of isolation among turtles in these major valleys is expected. However, there is strong ecological similarity across the Intermountain – Rocky Mountain DU distribution, from the Cariboo to the Okanagan to the East Kootenay. Most turtles occur in small lakes or ponds situated in dry, valley bottom ecosystems, typically Interior Douglas-fir, Ponderosa Pine and Bunchgrass biogeoclimatic zones (see Meidinger and Pojar [1991] and BC Ministry of Forests and Range [undated] for descriptions of biogeoclimatic zones).
The Prairie/Western Boreal – Canadian Shield population may warrant division in the future should more data become available. These two ecological zones are distinct from each other. Western Painted Turtle habitat appears to be quite different between the two zones. Western Painted Turtles on the prairies inhabit mostly riverine habitats, including oxbow lakes associated with relatively slow, meandering prairie rivers (MacCullough and Secoy 1983a). On the Canadian Shield, Western Painted Turtles are found in small lakes, wetlands, beaver ponds, and other such lentic habitats, and generally avoid any water bodies with a significant current (Ernst and Lovich 2009), as is typical of the Canadian Shield rivers. However, there is very little detailed information on Western Painted Turtles east of British Columbia, including lack of genetic data and poor understanding of their distribution and abundance. There is also no apparent gap in their distribution / occurrence along the ecological zone boundary in southeast Manitoba (Figure 4). Therefore, they continue to be lumped together as one DU in this report.
Special significance
The Western Painted Turtle is one of only two extant native freshwater turtles occurring west of Ontario. Although it is not of direct economic value in Canada, it may play an important role in the ecosystem functioning (e.g., litter decomposition) of aquatic systems as previously demonstrated for other species of turtles (Lindsey et al. 2013).
In Canada, the Western Painted Turtle occurs at the northern limit of its geographic distribution (Figure 5). Peripheral populations are often known to genetically diverge from core populations due to added selection pressures, enabling them to inhabit environments with harsher conditions (Safriel et al. 1994; Lesica and Allendorf 1995). Peripheral populations may become more adapted to living in transitional environments and play an important role in the expansion of the species’ range (Lesica and Allendorf 1995; Frazier et al. 2006) in response to changing climates (Hickling et al. 2006). The unique haplotypes in British Columbia Western Painted Turtle populations (Jensen et al. 2014a) support the notion that there has been genetic divergence from more centrally located populations and that this divergence may increase the conservation value of these peripheral populations.
Western Painted Turtles possess characteristics such as environmental sex determination, freeze-tolerance (as hatchlings), and an ability to tolerate extremely anoxic conditions, which make them important model organisms for physiological and genetic studies.
Turtles are significant to First Nation peoples, but at the time of this report, three reports were located but only of them (Jamieson et al. 2009) was available. This report states that the Western Painted Turtle occurs on Shuswap Indian Band land, along with basic ecological notes, but contained no other information relevant to status assessment.
Distribution
Global range
At the species level, Chrysemys picta occurs across the middle latitudes of North America from the Pacific coast in British Columbia and Washington, east to the US Atlantic coast and to Canada’s Maritime provinces (Figure 5). The northernmost natural occurrences for Western Painted Turtle are in the Cariboo Region of central British Columbia (Figure 5; see also Ernst and Lovich 2009).
The Western Painted Turtle subspecies intergrades with C. p. marginata in Michigan’s Upper Peninsula and Ontario’s Algoma district (Weller et al. 2010) south through Illinois and eastern Missouri (Figure 5). The Western Painted Turtle’s range is more or less contiguous across the US and southern Canadian prairies but becomes fragmented through the US southwest. Isolated Western Painted Turtle populations occur in New Mexico, southwest Colorado, Utah and Arizona, though many of these are thought to be introduced. One population is known from Chihuahua in northern Mexico (Dengenhardt et al. 1996). In the west, Western Painted Turtle is present through most of Montana, northern Idaho, the Columbia River basin in Washington, and the Willamette Valley of Oregon. Western Painted Turtles also occur in the Puget Sound region of northwestern Washington, a continuation of the Pacific Coast population that occurs in British Columbia.
Canadian range
In Canada, Western Painted Turtles occur in suitable habitat throughout much of the southern portions of the four western provinces and the southern part of northwestern Ontario (Figure 4). Detailed regional distributions are provided for each population in the following sections.
Pacific Coast population
Western Painted Turtles are known from over 80 discrete water bodies. These represent 39 clustersFootnote1 of occurrences or subpopulations (“population units”) that combine water bodies considered to be within regular and/or reasonable distance for individuals to move among (Western Painted Turtle Recovery Team 2016; Engelstoft and Ovaska unpubl. data 2016). Each cluster consists of 1 to 13 discrete sites or water bodies.
The Pacific Coast population occurs through the Lower Fraser Valley of British Columbia, from approximately Chilliwack to the coast in Greater Vancouver. Other occurrences are on the Sechelt Peninsula / Sunshine Coast and Powell River area northwest of Vancouver, Texada Island, and Vancouver Island. On Vancouver Island, the Western Painted Turtle is found from Sooke through Greater Victoria to the central Saanich Peninsula; several ponds in Nanaimo; one site by Courtenay; several water bodies in the Alberni Valley, and occasional observations between the above areas on the east coast of the island. In the southern Gulf Islands, Western Painted Turtles have been found only on Saltspring Island.
Whether Western Painted Turtles are native to the British Columbia coast has been debated for decades (see COSEWIC 2006 for a discussion). McTaggart Cowan (1938) considered them native, noting that Western Painted Turtles occur on Texada Island, Pender Harbour (n.b. Pender Harbour is a marine inlet and community on the Sechelt Peninsula / Sunshine Coast, not Pender Island in the southern Gulf Islands), and “several small lakes in the Alberni district.” Genetic evidence from various localities in the Pacific Coast population indicates a long postglacial history of Painted Turtles in the region, consistent with them being native to the area (Jensen 2013). However, there is evidence of people moving painted turtles around in both historical (McTaggart Cowan 1936; Carl 1952) and recent times, and without genetic testing it is impossible to know whether particular local occurrences are introduced. Jensen (2013) noted that the occurrences of 1 - 3 turtles per water body may well be the result of translocations.
Intermountain – Rocky Mountain population
The number of discrete water bodies known to support Western Painted Turtles in the Intermountain – Rocky Mountain population is estimated at approximately 200. The number of “population units,” representing connected water bodies, as defined for the Pacific Coast population above, is unknown.
East of the Cascade and Coast mountains, Western Painted Turtles occur primarily in major valley bottoms between mountain ranges. Main occurrences are in the Okanagan Valley, the Thompson River Valley, and the southern Cariboo region, roughly from 70 Mile House to Williams Lake. In the Kootenay / Columbia region, British Columbia, the Western Painted Turtle is known from the southern portions of the West Kootenay region including water bodies near Nelson, Castlegar, Trail, and Salmo. There is no clear ecological explanation for their distribution through the West Kootenays. A significant population inhabits ponds of the Creston Valley wetlands along the Lower Kootenay River (Isaac 2016). In the East Kootenay region, the Western Painted Turtle occurs in numerous water bodies in the Rocky Mountain Trench from the US border at Montana north to the community of Wasa, British Columbia. There are scattered reports through the Columbia River wetlands between Invermere and Donald, including Spillamacheen, Parson (including observed egg-laying events) and Golden. Most reports come from sightings adjacent to the wetlands rather than in the ponds themselves though this may be an artefact of few people accessing the Columbia Wetland ponds. Apparently isolated occurrences include: Revelstoke, Lower Kettle River Valley (including Grand Forks), north end of Kootenay Lake, Invermere, and Fernie.
Ecologically, Western Painted Turtle distribution is best described as suitable ponds and small lakes at low elevations in the drier subzones of Bunchgrass, Ponderosa Pine, and Interior Douglas-fir biogeoclimatic zones (Meidinger and Pojar 1991; BC Ministry of Forests and Range undated). Habitat availability results in the finger-like distribution across the ecologically diverse landscapes of British Columbia’s Southern Interior.
Prairie/Western Boreal – Canadian Shield population
The distribution of Western Painted Turtle across the Prairie/Western Boreal – Canadian Shield population is best described by major southern watersheds draining into lakes Winnipeg, Manitoba, and Winnipegosis, and Lake Superior. Most occurrences are from the Missouri/Mississippi watershed (including the Milk River drainage) and from the Qu’Appelle, Souris, Assiniboine, and Red River watersheds that drain into Hudson Bay, in the southern Prairie Provinces (Figure 6). Occasional records occur beyond these boundaries into the southern portions of the Saskatchewan River watershed (e.g., Swift Current Creek), and in east-central Saskatchewan, but they are generally absent from this watershed. In the Canadian Shield Faunal Province, occurrences are from the Winnipeg, Manitogan, Bloodvein, and English River watersheds that drain into Lake Winnipeg. In the Great Lakes watershed, Western Painted Turtle records are in the Thunder Bay / Lake Nipigon region. They are notably absent from any Canadian Shield watershed draining into Hudson Bay. The easternmost limits of the Western Painted Turtle in Canada are in the Algoma district north of the eastern end of Lake Superior in White River and Michipicoten watersheds. Weller et al. (2010) reported a 130 km gap between Western Painted Turtleand Midland Painted Turtlerecords in the Algoma district of Northern Ontario with intergrades documented mostly from Lake Superior Provincial Park (Figure 6).
Limiting Western Painted Turtle distribution in Alberta to the Missouri (Milk River) watershed is supported by Western Painted Turtle occurrence records from Montana that indicate the species is also absent from the South Saskatchewan watershed in that state (Montana Field Guide 2014). Most other records beyond these watersheds in Alberta (e.g., Moonshine Lake Provincial Park north of Grande Prairie, Rocky Mountain House, Hanna, Crowsnest Pass region, Lethbridge and Waterton Lakes National Park, and others) and Saskatchewan (e.g., Pike Lake) are considered introduced occurrences. Some of these populations may have been established for decades (Pearson 2005; Quinlan pers. comm. 2014; Kendall pers. comm. 2014; Didiuk pers. comm. 2014). For example, turtles at Pike Lake, south of Saskatoon may have been introduced as early as the 1920s when the area was a destination resort (Didiuk pers. comm. 2014). Similarly, Lee’s Lake in the Crowsnest Pass area of southwestern Alberta has supported turtles since at least the 1920s (Pearson 2005). Their origin is suspected to be introduced (Pearson pers. comm. 2014), though considered possibly native by others (Quinlan pers. comm. 2014).
Some Western Painted Turtle occurrences in creeks of the South Saskatchewan watershed may have resulted from natural emigration. Swift Current Creek supports Western Painted Turtles in multiple localities (Figure 6), and these could easily be turtles that naturally colonized oxbows on this river from the adjacent Upper Qu’Appelle and/or Frenchman river drainages. Their northern range limit in Manitoba and eastern Saskatchewan is unclear. Western Painted Turtles may occur north into the Interlake region and north of Riding Mountain National Park. However, the only extant record in these areas is from the Peguis First Nation lands (Figure 6).
Estimating the number of water bodies that support Western Painted Turtles in the Prairie/Western Boreal – Canadian Shield population is difficult due to lack of survey effort. Western Painted Turtles have not been tracked by these provinces (note: Ontario started tracking Western Painted Turtles in 2014), so data are collected opportunistically, and many records are historical. The largely riverine habitats utilized by Western Painted Turtles on the prairies also make identifying discrete water bodies difficult. In northwestern Ontario, Western Painted Turtles could inhabit innumerable remote lakes, wetlands, and beaver ponds.
Extent of occurrence and area of occupancy
The extent of occurrence (EOO) for the Pacific Coast population in Canada is estimated at 19,256 km2 based on the minimum convex polygon method. The index of area of occupancy (IAO) is 528 km2, based on the 2 x 2 km grid method. New occurrences continue to be found with increased search effort, including filling in distribution gaps on the east coast of Vancouver Island, but the actual IAO is unlikely to be much larger.
The EOO for the Intermountain – Rocky Mountain population in Canada is estimated at 118,454 km2 based on minimum convex polygon. The IAO is 1176 km2, based on the 2 x 2 km grid method. These data exclude suspected introduced subpopulations at Fernie and McBride, British Columbia. Undocumented occurrences may exist, increasing the actual IAO.
The EOO for the Prairie/Western Boreal – Canadian Shield population in Canada is estimated at 449,944 km2 based on the minimum convex polygon method. The IAO is 1336 km2, based on the 2 x 2 km grid method. This estimate is based on mapping known observations, including historical records. The actual IAO is probably larger.
Search effort
Western Painted Turtle data were obtained from numerous sources including: unpublished reports for research / monitoring projects (e.g., Engelstoft and Ovaska 2008, 2011, 2013 - 2015; Weller 2009; Ovaska and Engelstoft 2009, 2010, 2012; Hawkes et al. 2013; Isaac 2014; Jensen et al. 2014a; Tesche 2014; Engelstoft and Thorpe 2015), professional biologists, conservation data centres, herpetological atlases, and provincial and federal Canadian agencies including Parks Canada, Canadian Wildlife Service, and Department of National Defence (Table 1). In addition to formal data requests, a questionnaire was developed and distributed to solicit additional input on population abundance, habitat trends, and conservation threats. Nine completed questionnaires were received from respondents ranging from Ontario to coastal British Columbia, and the responses were incorporated into the appropriate sections in the report.
Location | Data Source | Province | Recordeda | # Records | Date range |
---|---|---|---|---|---|
Pacific Coast population | BC Conservation Data Centre | BC | Water body | 93 | unknown |
Pacific Coast population | BC Ministry of Environment | BC | Individuals | 62 | 1931 – 2015 |
Pacific Coast population | Habitat Acquisition Trust | BC | Water bodies | 30 | 2008 – 2015 |
Intermountain – Rocky Mountain population | BC Conservation Data Centre | BC | Water body | 35 | unknown |
Intermountain – Rocky Mountain population | BC Ministry of Environment | BC | Individuals | 585 | 1932 – 2016 |
Intermountain – Rocky Mountain population | Regional Expertsb | BC Kootenays | Water body | 58 | Through 2016 |
Intermountain – Rocky Mountain population | Creston Turtle project (Isaac 2016) |
BC Kootenays | Water body | 26 | 2013-2015 |
Prairie/Western Boreal – Canadian Shield population | Alberta Fisheries and Wildlife Management Information System | AB | Individuals | 56 | 1975-2012 |
Prairie/Western Boreal – Canadian Shield population | SK Conservation Data Centre | SK | Individuals | 128 | 1913-2014 |
Prairie/Western Boreal – Canadian Shield population | Manitoba Herps Atlas (2014) | MB | Individuals | 200 | 1989-2014 |
Prairie/Western Boreal – Canadian Shield population | Ontario Reptile and Amphibian Atlas Program (Ontario Nature) via Ontario Heritage Information Centre | ON | Individuals | 224 | 1924-2012 |
Prairie/Western Boreal – Canadian Shield population | S. Hecnar unpubl. data | ON | Individuals | 28 | 2006-2011 |
a “Recorded” indicates whether the data reported “Individuals” (report of an individual, or multiple turtle sighting at a single location) or “Water body” (report of a pond, lake, wetland or river known to support a Western Painted Turtle population of indeterminate size).
b A. Dzilums pers. comm. 2014.; L. Halverson pers. comm. 2014.; M. Machmer pers. comm. 2014.; P. Ohanjanian pers. comm. 2014.; L-A. Walker pers. comm. 2014.
Area | Regional district | 2015 | 2025 | 10 year % increase | 2041 | 26 year % increase |
---|---|---|---|---|---|---|
Pacific Coast | Powell River | 20,932 | 22,756 | 8.7% | 25,106 | 19.9% |
Pacific Coast | Sunshine Coast | 29,918 | 33,741 | 12.8% | 39,113 | 30.7% |
Pacific Coast | Fraser Valley | 294,008 | 337,141 | 14.7% | 399,752 | 36.0% |
Pacific Coast | Greater Vancouver | 2,505,357 | 2,877,627 | 14.9% | 3,407,191 | 36.0% |
Pacific Coast | Capital | 377,535 | 420,006 | 11.2% | 471,729 | 24.9% |
Pacific Coast | Alberni-Clayoquot | 31,181 | 32,617 | 4.6% | 34,258 | 9.9% |
Pacific Coast | DU Total | 3,258,931 | 3,723,888 | 14.3% | 4,377,149 | 34.3% |
Intermountain – Rocky Mountain | Cariboo | 63,212 | 65,338 | 3.4% | 66,246 | 4.8% |
Intermountain – Rocky Mountain | Thompson-Nicola | 133,141 | 144,657 | 8.6% | 157,358 | 18.2% |
Intermountain – Rocky Mountain | North Okanagan | 83,170 | 91,611 | 10.1% | 103,259 | 24.2% |
Intermountain – Rocky Mountain | Central Okanagan | 190,388 | 224,890 | 18.1% | 276,858 | 45.4% |
Intermountain – Rocky Mountain | [South] Okanagan-Similkameen | 82,218 | 88,280 | 7.4% | 95,134 | 15.7% |
Intermountain – Rocky Mountain | [West] Kootenay-Boundary | 30,740 | 30,758 | 0.1% | 29,857 | -2.9% |
Intermountain – Rocky Mountain | Central Kootenay | 59,378 | 62,100 | 4.6% | 64,909 | 9.3% |
Intermountain – Rocky Mountain | East Kootenay | 57,779 | 60,249 | 4.3% | 61,843 | 7.0% |
Intermountain – Rocky Mountain | DU Total | 700,026 | 767,883 | 9.7% | 855,464 | 22.2% |
Habitat
Habitat requirements
Western Painted Turtles are highly aquatic and are found in shallow waters of ponds, lakes, oxbows and marshes, in slow-moving stream reaches, and quiet backwater sloughs of rivers. Optimal Western Painted Turtle habitat contains muddy substrates with emergent aquatic vegetation, exposed Cattail (Typha sp.) mats, floating logs, and open banks (Matsuda et al. 2006). Painted Turtles prefer floating logs, branches, or other emergent objects that lie offshore or over deeper water for basking (Nussbaum et al. 1983; Macartney and Gregory 1985).
The majority of seasonal activities, such as feeding, basking, mating, and other activities, are generally carried out in the water (Matsuda et al. 2006). Time spent on land is minimal and restricted to brief excursions during the summer nesting season and occasional terrestrial dispersal movements between water bodies, particularly if ponds dry up (McAuliffe 1978).
For nesting, females select exposed patches of soil, sand, or gravel often at the margins of fields, pastures, beaches, or roadsides where digging is possible (Nussbaum et al. 1983; Matsuda et al. 2006). Nest site soils have good drainage, loose surface layers, fairly compact subsurface layers, and are composed of a mixture of small to medium size gravels, fine silts, and sands with low organic content (Macartney and Gregory 1985). Gentle slopes, warm southern exposures, and reduced shrub overstorey are necessary (Schwarzkopf and Brooks 1987; Refsnider et al. 2013). Most nests are within 200 m of their water body with rare records up to 600 m (Ernst and Lovich 2009).
Water features used by Western Painted Turtles appear to be somewhat different in the Prairie portion of the Prairie/Western Boreal faunal province. While elsewhere turtles are primarily found in generally small water bodies with minimal flow, such as ponds, small lakes, or sloughs (St. Clair and Gregory 1990; Basaraba 2014; Isaac 2014; Tesche 2014), on the Prairies, Western Painted Turtles primarily use either riverine habitats or oxbow lakes associated with rivers (MacCulloch and Secoy 1983b; Watkins pers. comm. 2014). Very few, if any, records are from natural prairie wetlands. The extensive research library of the Institute for Wetland and Waterfowl Research focusing on prairie wetlands has no record of turtles (Glass pers. comm. 2014). This suggests they are at least not common in typical prairie pothole wetlands. Many of these wetland ponds are susceptible to drying in the summer months and/or freezing solid in the winter. Either situation would be lethal to Western Painted Turtles. Many larger lakes that are not ephemeral have high salt loads that would also be intolerable to turtles.
Prairie rivers are often described as slow, meandering and “sluggish” (MacCullough and Secoy 1983a), ideal conditions for Painted Turtles who tend to avoid water bodies with strong currents (Ernst and Lovich 2009). Water is deep enough to avoid drying out or freezing but with enough current to keep saline levels low and provide sufficient resources for turtles.
Habitat trends
Pacific Coast population
Continuing urban and agricultural land development, particularly in the Lower Fraser Valley and southern Vancouver Island, is likely to reduce habitat quantity and quality for Western Painted Turtles. Suitable habitat often occurs in isolated patches within human modified landscapes. Human population projections indicate significant growth over the next 10- and 26-year periods (maximum extent of demographic projections; Table 2) in the British Columbia’s south coast region where Western Painted Turtle occurs. Additional human population density is likely to increase development pressure, road building, and traffic on roads, posing habitat isolation and movement problems for Western Painted Turtles.
In the Lower Fraser Basin, only about 1% of the original wetlands remained in 1990 (compared to pre-settlement in1820s), while urban and agricultural lands had increased to cover 26% of the basin landscape by 1990 (Boyle et al. 1997). In the Fraser River Delta, about 70% of the original wetlands have been altered by diking and drainage schemes (Habitat Group 1978). This includes virtually all of the seasonal wet meadows and 84.6% of the bog habitat (Butler and Campbell 1987). Sumas Lake wetlands (formerly one of North America’s most productive wetlands) were drained for agricultural uses in the 1920s (Environment Canada 1992). After World War II, over 2,800 hectares were diked and drained between Pitt Lake and Pitt River, creating the Pitt Polder, a lowland area converted to agriculture by diking and draining. Portions of Cheam Lake, Pitt Polder, and Hatzic Lake were also drained.
Since 1990, wetland losses have continued. Between 1989 and 1999 one in five wetlands in the Fraser Lowlands were lost to agricultural and urban encroachment with a quarter of the remaining wetlands experiencing a further 5 to 15% loss in area (Moore et al. 2003). Between 1989 and 2009, 1352 ha of the original 29,448 ha (4.6%) were lost (Major et al. 2009). How many of these wetlands may have supported Western Painted Turtles is unknown. Primary sources of natural wetland loss were identified as: agriculture (primarily cranberry and other berry production 43%), golf courses (18%), housing development (15%), and landfill (11%). Combined, these account for 87% of observed wetland loss (Major et al. 2009).
On Vancouver Island, Western Painted Turtle habitat has been impacted especially in the Greater Victoria area and along the east coast. Approximately 70% of the original wetlands have been lost in the “Victoria region” (presumably referring to Greater Victoria) (Wetland Stewardship Partnership 2010). On the east side of Vancouver Island and the Gulf Islands, only 1.7% of the land base remains as natural wetlands in 1992 (original coverage not given), and there was a 2% wetland loss during from 1992 – 2002, based on air-photo interpretation (Wetland Stewardship Partnership 2010).
Urban development and extensive road networks have fragmented suitable habitat, and habitat conditions have been further degraded by exotic species introductions (Ovaska and Engelstoft 2012). In the Alberni Valley, habitats are within active forestry lands. Wetlands, especially shallow water pond types preferred by Western Painted Turtle, are not abundant on southeastern Vancouver Island (Ward et al. 1998), and on Vancouver Island the Western Painted Turtle has been found in only 33 (13%) of 245 water bodies surveyed from 2008 to May 2016 (Engelstoft and Ovaska 2008, 2011, 2013 – 2015; Ovaska and Engelstoft 2009, 2010, 2012; Engelstoft and Thorpe 2015; Engelstoft unpubl. data 2016), indicating patchy distribution. In contrast, the introduced Red-eared Slider (Trachemys scripta) was found in 54 (22%) of the water bodies, suggesting that at least some of the unoccupied water bodies provided habitat suitable for turtles. Estimates of historical wetland loss on southern Vancouver Island were not available (McPhee et al. 2000).
Approximately 65% of individuals in the entire Pacific Coast population may be on the Sunshine Coast and Texada Island (Figure 7), so habitat trends and threats are especially meaningful there, but no information was found on recent or historical wetland trends. Wetland loss can be inferred from residential development along coastal regions between Gibsons and Powell River, which has increased over the past decade. Looking forward, further development pressure is expected in this area, as projected human population growth rates are not much lower than in the Lower Fraser Valley (Table 2). A further 12.8% increase in population growth is predicted for the next 10-year period. Development (housing, roads) in this area is concentrated in the same narrow, relatively flat coastal plain where suitable Painted Turtle habitat exists. Forestry also continues to modify habitats, especially in low elevations along the coast (Sunshine Coast Regional District 2003).
Intermountain – Rocky Mountain population
Overall, Western Painted Turtle habitat is considered abundant in localized areas within the range of this population. Questionnaire respondents considered Western Painted Turtle habitat trends to vary considerably among regions. Some areas (e.g., Nisconlith Lake) may experience an increase in habitat due to changes to water flows that are providing more water to kettle lakes and other turtle habitat in the area (Ballin pers. comm. 2014). In the Cariboo region of central British Columbia, increased road densities including highway twinning and greater traffic volumes have increased road mortality. This trend is expected to continue (Steciw pers. comm. 2014).
In the ecologically critical South Okanagan area 85% of the natural wetlands have now been lost to stream channelization, agricultural drainage, and housing (Sarrell 1990). Historical ecosystem mapping completed for the Okanagan Valley by Lea (2008) found that greater than 90% of some wetland ecological community types have been lost. The Okanagan region experienced large declines of 85% and over 90% of some wetland ecological community types between 1800 and 2003 (Sarrell 1990; Lea 2008). More recent rates of wetland loss are unknown, but pressure from human activities continues. Elsewhere (Kootenay and Cariboo regions), wetlands have been drained for agricultural purposes or their functioning reduced by cattle. Dams on the Columbia, Kootenay and Duncan rivers have inundated thousands of hectares of valley-bottom lands, including wetlands, where turtles are most numerous.
Sources of wetland loss and degradation include agricultural activities such as orchards, vineyards, cultivation agriculture, and water body trampling by grazing livestock (see Threats and Limiting Factors). Impacts on turtles result from direct infilling of wetlands and altering of groundwater regimes that recharge many of the lakes, ponds, and wetlands within British Columbia’s Southern Interior (Iverson et al. 2008). There is also increasing pressure from linear developments that increase road mortality especially for nesting females and dispersing turtles. Ongoing urban development, both housing and industrial, may affect turtle habitat, notwithstanding increased habitat protection from development under municipal bylaws designed to maintain sensitive environmental values and watercourses (see Habitat Protection and Ownership).
Where Western Painted Turtle are most vulnerable in the region – the Okanagan Valley – human population growth and increased agricultural water demand under most predicted climate change scenarios are expected to increase local water use by 5% to 40% or more under worst-case scenarios (Polar Geoscience 2012). Human population growth is projected to be greatest in the Okanagan (Table 2), especially the central region, including Kelowna. The more rural Kootenays and Cariboo regions are projected to have much lower human population growth. Increased human population increases development pressures on natural areas and likely increases road and traffic densities that threaten turtles.
Prairie/Western Boreal – Canadian Shield population
Historical trends of Western Painted Turtle habitat in the Prairie/Western Boreal – Canadian Shield population are uncertain. Wetland habitats are known to have declined from historical levels (Watmough and Schmoll 2007), and declines are likely to continue. Western Painted Turtles utilize more riverine habitats on the prairies, not pothole wetlands, so they may not be exposed to as much habitat loss. The extent to which riverine and oxbow habitats have declined over both short and long term is unknown.
Habitat trends in the Prairie ecosystems are likely to range from relatively stable to decreasing over the next ten years. Threats to turtle habitat are from activities that impact water levels, both surface waters in rivers and oxbow sloughs and groundwater reserves that may help recharge surface water areas. The drainages in which Western Painted Turtles occur on the prairies are not fed by glacier melt in the Rocky Mountains (Schindler and Donahue 2006) but are reliant on snow melt and rainfall. Any changes in precipitation levels may, therefore, directly impact water levels and Painted Turtle habitat. The Prairie Pothole Region (where Western Painted Turtle occur but do not necessarily utilize pothole wetlands) has experienced drying conditions throughout the 20th century (Werner et al. 2013), and water scarcity is anticipated to be a major challenge in the region (Sauchyn and Kulshreshtha 2008). Most work has examined pothole wetlands and glacier-fed rivers (e.g., North and South Saskatchewan River watersheds; Schindler and Donahue 2006; Werner et al. 2013), but general drying conditions can be expected to impact the waters inhabited by Western Painted Turtle as well. This compounds already high surface water use (e.g., domestic use, irrigation) within much of the Prairie distribution of Western Painted Turtle in Canada (Environment Canada 2012). The extent to which petroleum exploration and development will impact turtle habitat is uncertain. The largest habitat impact of this activity is likely the associated increase in road network and elevated threat from road mortality.
Habitat trends in northwestern Ontario are likely to be stable overall, but Western Painted Turtle subpopulations there appear to be small and unevenly distributed, increasing their vulnerability to any losses of habitat. Some potential threats to Western Painted Turtle habitat exist in localized mining exploration and development and where forestry practices impinge on inhabited water bodies either by harvest or roads.
Biology
Life cycle and reproduction
Western Painted Turtles exhibit a fairly typical pond turtle life history. In early spring as the water warms, courtship and mating begins and takes place in shallow waters (Ernst and Lovich 2009). Mating has been documented to occur also in the autumn (Pearce and Avise 2001). The majority of females mate prior to each nesting period; however, they also have the ability to store viable sperm for up to 4 years (Pearce and Avise 2001).
Females begin nesting in late May-June and search for well-drained soil or sandy substrates often along roadways, fields, and beaches that face south to southwest (Schwarzkopf and Brooks 1987; COSEWIC 2006). Once a suitable site is located, females dig a 4-14 cm deep, flask-shaped nest and lay ~12 eggs in the late afternoon to early evening (Pearse and Avise 2001; COSEWIC 2006). Females provide no maternal care once the eggs are laid and the nest is covered.
Eggs incubate in the nest for approximately 76 days and hatch in late summer or fall of the same season (COSEWIC 2006). The sex of many freshwater turtles, including Western Painted Turtle, is determined by incubation temperature (Bull 1980). In Canada, newly hatched turtles typically overwinter in the nest and emerge the following spring (Packard et al. 2002; Costanzo et al. 2004). These northern neonates can remain in their natal nest because they are freeze-tolerant and can survive temperatures below -10 ˚C (Packard et al. 2002).
Adult and juvenile Western Painted Turtles spend the warm summer months basking and foraging and move to suitable overwintering habitats in the fall when air and water temperatures decrease. Outside the courtship and mating period, male and female Painted Turtlesgenerally avoid each other (Munoz 2004). Painted turtles hibernate in shallow water below the freezing limit. During winter, turtles can make small movements but become dormant in muddy substrates when conditions become anoxic (Taylor and Nol 1989).
Sexual maturity of painted turtles is thought to be more a function of size than age (Ernst and Lovich 2009) and so may differ regionally. Citing several sources, Ernst and Lovich (2009) suggested male Western Painted Turtles mature at a plastron length of 7.0 to 9.5 cm, “usually in years 2-4, but possibly as late as the sixth year in some northern populations.” Females mature at a larger size, with a plastron length of 9.7 to 12.8 cm and up to 17.7 cm in some populations, typically at 6-10 years of age (Ernst and Lovich 2009).
There is very limited survivorship and age of maturity data available for Western Painted Turtles. Studying Midland Painted Turtles in central Ontario, Samson (2003) estimated sexual maturity at 7-10 years for males (n = 15, mean = 8.3, SD = 0.93) and 12-15 years for females (n = 32, mean = 14.1, SD not available). Samson found the annual adult mortality rate was very low at 0.03. Lifespan for Painted Turtles is considered to be between at least 30 and 40 years (Congdon et al. 2003; Ernst and Lovich 2009) and up to 60 years (supporting information in Midwood et al. 2015). Given the large climatic differences across the Western Painted Turtle’s range in Canada, from the temperate west coast to the continental climate of the Prairies and northwestern Ontario, generation time may vary significantly among the three designatable units. It is likely shortest for the Pacific Coast population, estimated to be between 25 to 30 years, while the Intermountain – Rocky Mountain and Prairie/Western Boreal – Canadian Shield populations probably have generation times from 30 to 40 years. The latter two estimates are consistent with those for Midland and Eastern painted turtles (Moldowan pers. comm. 2015).
Physiology and adaptability
Basking is a commonly observed behaviour in a variety of freshwater turtle species. It serves the primary purpose of rapidly raising the body temperature in ectothermic turtles (Boyer 1965; Ernst 1972; Lefevre and Brooks 1995) and has several benefits. Basking facilitates increased metabolic and digestive rates (Avery et al. 1993; Hammond et al. 1988), helps eliminate ectoparasites (Ryan and Lambert 2005), and accelerates egg development in females (Carrière et al. 2008). In addition, basking may be an integral component of skin and shell maintenance by synthesizing vitamin D3 (Acierno et al. 2006) and aiding in the periodic shedding of carapacial scutes (Boyer 1965).
During winter, Western Painted Turtles become dormant and hibernate on the muddy substrates of ponds, lakes, or other types of slow-moving aquatic environments. While dormant, their need for oxygen is greatly decreased (Ultsch et al. 1999), and they may absorb oxygen from the water through their skin, throat linings and thin-walled sacs in the cloaca. It appears, however, that Painted Turtles are unable to maintain aerobic metabolism throughout an extended hibernation. Instead, they survive on anaerobic respiration, by using calcium and magnesium carbonates taken from their shell to buffer lactate accumulation in their tissues (Jackson 2000). This extreme tolerance of anaerobic conditions has been associated with regulatory changes in broadly conserved vertebrate genes, suggesting a genetic basis (Shaffer et al. 2013).
Conversely, some neonates overwinter terrestrially within the natal nest chamber (Ultsch 1989). Because hatchlings usually do not emerge from the nest chamber until the following spring, they may be exposed to temperatures as low as -10°C during hibernation. Winter survival is promoted by freeze-tolerance and supercooling abilities, depending on body temperatures. Hatchlings freeze when body temperatures remain above -4°C (Storey et al. 1988; Churchill and Storey 1992; Costanzo et al. 1995) whereas they use supercooling when body temperatures drop below this level (Packard et al. 1997).
Diet
Small juvenile Painted Turtles feed primarily on tadpoles and aquatic invertebrates such as insects, crayfish and snails. Turtles include bigger prey items in their diets such as frogs and fish as they grow in size (Marchand 1942; Matsuda et al. 2006). As turtles mature and their growth rate declines, individuals become increasingly omnivorous, feeding on live animals and carrion as well as the abundant wetland plant life (Raney and Lachner 1942; Matsuda et al. 2006). Northern populations have been shown to exhibit a greater degree of carnivory (MacCollough and Secoy 1983a; Lindeman 1996).
Dispersal and migration
Overland movements of several hundred metres are not uncommon (House et al. 2010), as individuals presumably attempt to increase the frequency of encounters with potential mates (Thomas and Parker 2000), gain access to resources not available in a previous aquatic habitat (Stone 2001), or escape dramatic declines in quality of habitat (Roe and Georges 2008). Some turtles use different wintering and breeding ponds, and must travel between the two in spring and fall (Ernst and Lovich 2009). Long-distance migrations and dispersal are equally possible in the drier parts of this species’ range in Canada, and turtles must make movements overland from one water body to another or linearly along streams (MacCulloch and Secoy 1983b). Along rivers or where there is aquatic connectivity among water bodies, turtles can readily move up and down along these waterways (Ernst and Lovich 2009). Males in the riverine Saskatchewan habitats moved 21 to 26 km and females less than half that distance, 7 to 8 km (MacCullough and Secoy 1983a). Turtles in ponds and wetlands likely move significantly shorter distances (Ernst and Lovich 2009).
Interspecific interactions
The egg stage is a vulnerable phase of the turtle’s life cycle. Nest predators learn to find nests next to water bodies and can easily dig up the shallow clutch of eggs (Spackman and Hughes 1995). Consequently, depredation on Western Painted Turtle eggs is often very high (Macartney and Gregory 1985; Clark and Grueing 2002). Predators of Painted Turtle eggs include Raccoon (Procyon lotor), Coyote (Canis latrans), skunks (Mephites spp.), mustelids, Black Bear (Ursus americanus), sciurids, corvids, as well as domestic cats (Felis catus)and dogs (Canis familiaris) (see Maltby 2000; Clark and Gruenig 2002; Marchand and Litvaitis 2004; Ernst and Lovich 2009).
Red-eared Sliders are known to occur throughout much of Western Painted Turtle range and may compete with them for basking or nesting sites. While Sliders have been frequently observed to dig nests, there is little evidence of successful hatching under natural conditions. However, live young have been dug out from a nest in southwestern British Columbia recently (Welstead pers. comm. 2015a), suggesting that they at least occasionally survive the winter in the mild climates along the coast. Genetic material from introduced Eastern Painted Turtles has been demonstrated to occur in Western Painted Turtles at Burnaby Lake in the Pacific Coast population (Jensen et al. 2014b), indicating probable interbreeding with released non-native subspecies.
Population sizes and trends
Sampling effort and methods
A population estimate for the Pacific Coast population was provided by a working group based primarily on expert opinion. Minimum number alive data are presented where available; however, away from the Lower Fraser Valley, which has been surveyed intensively, these are typically the number of individuals captured or sighted at any one time during surveys aimed at delineating the distribution of the species or other field projects for which local population estimation was not an objective (e.g., Engelstoft and Ovaska 2011, 2013, 2014, 2015; Jensen 2013).
Abundance
Painted turtle populations (across all subspecies) are highly variable in size, capable of reaching very high densities or subsisting at low numbers (Ernst and Lovich 2009; Eskew et al. 2010). Density of turtles varies widely among water bodies (Ballin unpubl. data 2014; Tesche 2014). Riverine populations (which occur in the Prairie provinces) tend to occur at lower densities because of the ease of dispersal and movement up and down these waterways (Ernst and Lovich 2009). Thus, extrapolating a regional population estimate from an estimate of mean number of turtles per water body is not possible.
No reliable abundance estimates are available for any Western Painted Turtle population in Canada. Visual counts at any water body generally do not produce reliable estimates. They are confounded by an inability to distinguish between adults and juveniles (Ernst and Lovich 2009) and widely variable ability to observe turtles above water at any one time. In order to accurately determine age class, turtles must be closely examined in hand. Because most abundance estimates are based on visual counts from a distance, total counts generally lump adults and juveniles. Age ratios vary widely from site to site (Basaraba 2014; Tesche 2014), so there is no overall ratio that can reliably be applied across sites.
Pacific Coast population
There are no robust population estimates for this population, as surveys outside the Lower Fraser Valley have focused mainly on documenting distribution patterns. However, it is unlikely that the population is much greater than 3000 adults based on the low numbers observed during surveys at most sites and the number of occupied water bodies (tables 3 and 4). Population sizes for many sites on Vancouver Island, in particular, are unknown, as surveys have focused on clarifying distribution, and mark-recapture has been conducted at only a few sites. Approximately 35 - 43% of the population occurs on the Sunshine Coast and Texada Island. Approximately 30% - 43% of the population occurs in the Lower Mainland / Fraser Valley. Southern Vancouver Island (Capital Regional District) may support approximately 10 - 11% and the Alberni Valley / Nanaimo / Gulf Island components approximately 12 – 16% of the population (Table 3). New occurrences continue to be found with increased search effort, especially on Vancouver Island north of the Capital Regional District, and the percentage of the population on the island may be greater than indicated above.
Region | Lower limit # | % of Low | Higher limit # | % of High |
---|---|---|---|---|
Alberni, Nanaimo, and Gulf Islandsc | 208 | 12.0 | 492 | 15.8 |
Capital Regional District, Vancouver Islandc | 167 | 9.6 | 350 | 11.2 |
Lower Mainland, Fraser Valley | 755 | 43.4 | 930 | 29.8 |
Sunshine Coast, Texada Island | 609 | 35.0 | 1351 | 43.3 |
Totals | 1739 | blank | 3123 | blank |
c Several sites were visited only once in the Alberni Valley and Capital Regional District, Vancouver Island, to clarify distribution. For Lower limit, no correction was applied for detectability; for Higher limit, small wetlands indicated as “unknown” in Table 4 were assumed to contain 10 or 20 adults and large wetlands 50 adults for the purpose of this table.
At least 24 sites are known to have Western Painted Turtles throughout the Lower Fraser River Valley, from Chilliwack to the coast at Alaksen National Wildlife Area. Many of these sites, however, do not have self-sustaining populations. In many instances only one or two turtles are known, suggesting these animals were either introduced or the populations have declined to critically low levels. Given the lengthy lifespan of painted turtles (30 to 40 years, Ernst and Lovich 2009), a population of one or two turtles may persist for decades without any recruitment.
Each of the 39 clusters of extant sites can be considered a subpopulation (see Table 4 for a detailed breakdown). While most subpopulations are small, consisting of less than 10 or 100 adults, a few are presumed to be larger with population size up to 400 (Western Painted Turtle Recovery Team 2016). The largest subpopulations are Garden Bay – Ruby Lake on the Sunshine Coast with estimated 355 – 605 adults, Nicomen Slough in the Lower Fraser Valley with 300 – 350 adults, and Nelson Island with 100 – 400 adults. The size of many of subpopulations, especially in the Alberni Valley on Vancouver Island, is unknown.
Table 4. Status of known Western Painted Turtle sites in the Pacific Coast population, by subpopulation (cluster of observations) and region. Modified and updated from Appendix 1/Table 4 in the provincial recovery plan (Western Painted Turtle Recovery Team 2016). Cluster numbers 1 – 37 are as per the above document and include 1 with recovery habitat only (#23) and 1 historical/recovery site (#5), while numbers 38 – 41 represent additional clusters/subpopulations (not in 2016 recovery plan).
Augmented: head-started juveniles have been released or adults translocated to an area with poor population viability.
Reintroduction: translocation of adults or release of head-started juveniles at a historical site.
“# of adults” is based on the minimum number of turtles alive observed per site without correction for detectability. A few cases sites on the Lower Mainland and Sunshine Coast are based on estimates from mark-recapture data.
Location | Cluster ID | Cluster name by region | Site | Status | Possible # of adults | Comments |
---|---|---|---|---|---|---|
Sunshine Coast and Texada Island | 29 | Cranberry | Cranberry Lake | Extant | 5 | blank |
Sunshine Coast and Texada Island | 30 | Dogleg Pond | Dogleg Pond | Extant | 1 | blank |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Brown Lake | Extant | <10 | Site has not been systematically trapped |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Daniel Point Wetland | Extant | <5 | blank |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Garden Bay Lake | Extant | <5 | Road mortality is an issue, and small numbers are further dwindling |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Hotel Lake | Extant | 20-40 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Iris Griffith Centre wetland | Extant | <5 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Katherine Lake | Extant | 30-50 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Klein Lake | Extant | 20-40 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Little Goose Lake | Extant | <10 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Mixal Lake and wetland | Extant | 10-30 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | North Lake | Extant | 70-100 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Ruby Lake | Extant | 20-40 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Ruby Lake Lagoon | Extant | 40-70 | Mark-recapture |
Sunshine Coast and Texada Island | 28 | Garden Bay - Ruby Lake | Sakinaw Lake | Extant | 70-120 | Mark-recapture |
Sunshine Coast and Texada Island | 31 | Madeira Park | Francis Point Pond 1 | Extant | 50-80 | Mark-recapture |
Sunshine Coast and Texada Island | 31 | Madeira Park | Francis Point Pond 2 | Extant | Unknown | Small wetland, never surveyed systematically |
Sunshine Coast and Texada Island | 31 | Madeira Park | Lily (Paq) Lake | Extant | 80-120 | Mark-recapture |
Sunshine Coast and Texada Island | 34 | Nelson Island | Cockburn Bay Pond | Extant | <10 | blank |
Sunshine Coast and Texada Island | 34 | Nelson Island | West Lake | Extant | 100-400 | Limited survey effort; very rough estimate |
Sunshine Coast and Texada Island | 37 | Texada Island | Cap Sheaf Lake | Extant | 10-50 | blank |
Sunshine Coast and Texada Island | 37 | Texada Island | Case Lake | Extant/ augmented | <10 | blank |
Sunshine Coast and Texada Island | 37 | Texada Island | Emily (Turtle) Lake | Extant/ augmented | 15-50 | blank |
Sunshine Coast and Texada Island | 37 | Texada Island | Priest Lake | Extant | <10 | blank |
Sunshine Coast and Texada Island | 32 | Trout Lake/ Halfmoon Bay | Trout Lake | Extant | 10-30 | Limited survey effort |
Sunshine Coast and Texada Island | 32 | Trout Lake/ Halfmoon Bay | Halfmoon Bayd | Extant | 15-30 | Never surveyed systematically; new site not in recovery plan |
Lower Fraser Valley | 1 | Alaksen Wildlife Refuge | Alaksen Wildlife Refuge | Extant | 3 | blank |
Lower Fraser Valley | 2 | Aldergrove Lake | Aldergrove Lake | Extant | 22-25 | blank |
Lower Fraser Valley | 3 | Burnaby/Deer lakes | Burnaby Lake | Extant/ augmented | 200-225 | blank |
Deer Lake | Extant | 25-30 | blank | |||
Lower Fraser Valley | 4 | Campbell Valley - Livingstone Lake | Campbell Valley Regional Park-McLean Pond | Extant/ augmented | 46-50 | blank |
Lower Fraser Valley | 4 | Campbell Valley - Livingstone Lake | Livingston Lake/ Murchie Road | Extant | 5-20 | blank |
Lower Fraser Valley | 5 | Coquitlam | Colony Farm | Extant | 1-5 | blank |
Lower Fraser Valley | 5 | Coquitlam | Como Creek (culvert) | Extant | 1 | blank |
Lower Fraser Valley | 5 | Coquitlam | Como Creek (east) | Historical/ recovery habitat | 0 | blank |
Lower Fraser Valley | 5 | Coquitlam | Como Lake | Extant | 1 | blank |
Lower Fraser Valley | 5 | Coquitlam | Lafarge Lake | Extant | missing data | blank |
Lower Fraser Valley | 5 | Coquitlam | Lost Lake, Mundy Park | Extant/ Augmented | 5-10 | blank |
Lower Fraser Valley | 6 | Cultus Lake | Cultus Lake | Extant | 1 | blank |
Lower Fraser Valley | 7 | Great Blue Heron Nature Reserve | Great Blue Heron Nature Reserve | Extant | 1-5 | blank |
Lower Fraser Valley | 8 | Iona | Iona Beach | Extant | 5-10 | blank |
Lower Fraser Valley | 9 | Jerry Sulina | Jerry Sulina | Extant | 1 | blank |
Lower Fraser Valley | 10 | Kanaka Creek | Haney Bypass and Kanaka Creek area | Extant | 1-5 | blank |
Lower Fraser Valley | 11 | Lakemount Marsh | Lakemount Marsh | Extant | 1 | blank |
Lower Fraser Valley | 12 | Lost Lagoon/Stanley Park | Lost Lagoon | Extant | 1 | blank |
Lower Fraser Valley | 13 | Marshall Creek | Marshall Creek | Extant | 1 | blank |
Lower Fraser Valley | 14 | Mill Lake | Mill Lake | Extant | 5-10 | blank |
Lower Fraser Valley | 15 | Minnekhada - Pitt-Addington | Deboville Slough/Mclean Creek | Extant | 10-20 | blank |
Lower Fraser Valley | 15 | Minnekhada - Pitt-Addington | Minnekhada Regional Park- | Extant/ Augmented | 26-30 | blank |
Lower Fraser Valley | 15 | Minnekhada - Pitt-Addington | Pitt Addington Marsh | Extant/ Reintroduction | 25 | blank |
Lower Fraser Valley | 16 | Nicomen Slough | Nicomen Slough | Extant | 300-350 | blank |
Lower Fraser Valley | 17 | Queen Elizabeth Park | Queen Elizabeth Park | Extant | 1 | blank |
Lower Fraser Valley | 18 | Sardis Pond | Sardis Pond | Extant | 5-10 | blank |
Lower Fraser Valley | 19 | Silvermere Lake | Silvermere Lake | Extant | 5-10 | blank |
Lower Fraser Valley | 20 | Vicarro Ranch | Vicarro Ranch Estates, McKee Creek Watershed | Extant | 25-50 | blank |
Lower Fraser Valley | 21 | Westcreek Wetland | Westcreek Wetland | Extant/ Reintroduction | 32 | blank |
d new observations not in provincial recovery strategy (source: Evelyn pers. comm. 2016)
Location | Cluster ID | Cluster name by region | Site | Status | Max. # seen/ survey | Possible # of adults | Comments |
---|---|---|---|---|---|---|---|
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Adam Kerr Park | Extant | 1 | NA | In pool in creek; probably transient |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Elk-Beaver Lake Regional Park | Extant | 34 | 50-100 | Repeated surveys of lakes and associated ponds |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Eagles Lake & associated ponds | Extant | 2 | Unknown | Backwaters not surveyed |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Florence Lake | Extant | 2 | 2 | Repeated surveys of small lake |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Glen Lake | Extant | 3 | <5 | Repeated surveys of small lake |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Langford Lake | Extant | 37 | 50-100 | Repeated surveys |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Maltby Lake | Extant | 1 | Unknown | Landowner report with photos |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | McKenzie Lake | Extant | 4 | Unknown | blank |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Metchosin Rd. Ponds | Extant | 10 | Unknown | blank |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Olympic View | Extant | 25 | Unknown | blank |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Swan Lake | Extant | 11 | <15 | Mark-recapture conducted in 2010-2013 |
Capital Regional District, Vancouver Island | 22 | Langford - Saanich | Viaduct Ponde | Extant | 1 | <10 | Small pond |
Capital Regional District, Vancouver Island | 24 | Rocky Point | Matheson Lake | Extant | 1 | <10 | Repeated surveys |
Capital Regional District, Vancouver Island | 24 | Rocky Point | Rocky Point Roade | Extant | 1 | NA | Based on observation of one adult female crossing road |
Capital Regional District, Vancouver Island | 25 | Sooke - Metchosin | Kemp Lake | Extant | 1 | <10 | Repeated surveys |
Alberni Valley, Nanaimo, and Gulf Islands | 41e | Alberni Valley - Summit Lake | Summit Lake (slough)e | Extant | 9 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 36 | North Alberni | McLaughlin Lake | Extant | 1 | Unknown | 1 adult seen on nearby road |
Alberni Valley, Nanaimo, and Gulf Islands | 36 | North Alberni | Turnbull Lake | Extant | 5 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Airport wetlands | Extant | 56 | 50-150 | Repeated surveys |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Ash Main, at 26 kme | Extant | 4 | Unknown | Possibly seasonal habitat |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Ash Main, at 6 kme | Extant | 1 | Unknown | Possibly seasonal habitat |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Devil's Den Lake | Extant | 10 | 10-20 | Repeated surveys |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | HydroLine Pond 1e | Extant | 10 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Little Turtle Lake | Extant | 2 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | McKenzie Slough, Stamp River | Extant | 4 | Unknown | Only small proportion of extensive wetland surveyed once |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Patterson Lake | Extant | 1 | Unknown | Several diggings seen on island and shoreline |
Alberni Valley, Nanaimo, and Gulf Islands | 35 | South Alberni | Sumner Lake | Extant | 9 | Unknown | Erroneously identified as “historical only” in 2016 Recovery Plan. Regular movement from Patterson to Sumner Lake is a possibility |
Alberni Valley, Nanaimo, and Gulf Islands | 38e | Chemainus | Chemainus Lakee | Extant | 2 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 39e | Cobble Hill | Kinsol Tresslee | Extant | 1 | Unknown | Incidental observation |
Alberni Valley, Nanaimo, and Gulf Islands | 40e | Comox Valley | Maple Lake, Cumberlande | Extant | 1 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 33 | Nanaimo | Buttertubs Marsh | Extant | 3 | Unknown | Only small proportion of wetland surveyed |
Alberni Valley, Nanaimo, and Gulf Islands | 33 | Nanaimo | Cathers Lakee | Extant | 1 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 33 | Nanaimo | Diver Lake | Extant | 13 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 33 | Nanaimo | Morrell Lake, Westwood Lake Parke | Extant | 1 | Unknown | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 23 | Pender Island | Greenburn Lake | Not occupied | NA | NA | Identified in BC Recovery plan as suitable recovery habitat; only Eastern Painted Turtles (introduced subspecies) have been found at this site. |
Alberni Valley, Nanaimo, and Gulf Islands | 27 | North Saltspring | Bullock Lake | Extant | 8 | <10 | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 27 | North Saltspring | St. Mary’s Lake | Extant | 46 | Unknown | Survey data from 2016 and higher than in previous years but includes juveniles |
Alberni Valley, Nanaimo, and Gulf Islands | 26 | South Saltspring | Cusheon Lake | Extant | 2 | <5 | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 26 | South Saltspring | Fulford Valley | Extant | 2 | <5 | Introduced by humans |
Alberni Valley, Nanaimo, and Gulf Islands | 26 | South Saltspring | Isabella Point | Extant | 1 | <5 | blank |
Alberni Valley, Nanaimo, and Gulf Islands | 26 | South Saltspring | Mountain Road | Extant | 3 | <5 | Introduced by humans |
Alberni Valley, Nanaimo, and Gulf Islands | 26 | South Saltspring | Stowel Lake | Extant | 12 | Unknown | blank |
e new observations not in provincial recovery strategy (source: C. Engelstoft and K. Ovaska unpubl. data 2016)
Intermountain – Rocky Mountain population
No reliable population estimate is available for the Intermountain – Rocky Mountain population. Numerous site-specific projects provide estimates of minimum number alive and bounded population estimates are available from some field studies in (Table 5). As above, few studies differentiate between adult and subadult turtles. Thus the estimates shown should be assumed to include both, except where noted. Based on extrapolation of these limited site-specific abundance estimates, there may be upwards of 5000 mature adults in the population, possibly less than 10,000, but these are very rough estimates.
Location | Area | MNA (Western Painted Turtle)f | Year(s) | Notes | Source |
---|---|---|---|---|---|
Pacific Coast | Vancouver Island | total of 879 observations of 1 – 56 turtles/site/survey (mostly adults) | Annually from 2008 to May 2016 | 245 water bodies were surveyed for presence, found in 33. | Engelstoft and Ovaska 2008, 2011, 2013-2014; Ovaska and Engelstoft 2009, 2010, 2012; Engelstoft and Thorpe 2015; Engelstoft unpubl. data 2016 |
Pacific Coast | 8 sites across entire DU (see Figure 3) | 139 turtles observed, age not noted | 2011-2012 | Turtles sampled at 8 sites for genetic analyses. Mean number sampled per site = 17.4 (sd: 5.1, range = 10 to 27) | Jensen 2013 |
Intermountain – Rocky Mountain | Okanagan | 826, age not noted | 2009 | 13 water bodies with MNA = 1 to 322 turtles per water body. 1534 total turtles estimated (1215 – 1852 95% C.I.)g | Tesche 2014 |
Intermountain – Rocky Mountain | Creston Valley | 236 total 199 adults |
2013-2014 | >25 water bodies sampled. Recaptures not high enough to use in mark-recapture analyses, suggesting much higher population size. | Isaac 2014; 2016 |
Intermountain – Rocky Mountain | Nisconlith / Shuswap | 462, age not noted | 2009 | 15 water bodies with MNA = 1 to 98 turtles per water body | Ballin 2010 |
Intermountain – Rocky Mountain | Revelstoke – Airport Marsh and Montana Slough | 43 adults | 2010-2011 | 57 adults captured at 32 sites in 2010, 43 adults captured at same sites in 2011; total MNA adults and MNA juveniles = 76 (2010) and 57 (2011) at same sites. | Schiller and Larsen 2012 |
Intermountain – Rocky Mountain | Revelstoke – Airport Marsh, Montana Slough, Williamson Lake | 81 adult females, 13 adult males | 2010-2011 | Estimate of 242 turtles (95% CI: 160-325) “excluding neonates” – i.e. adults and juveniles calculated using Lincoln-Petersen method. | Basaraba 2014 |
Intermountain – Rocky Mountain | 17 sites throughout DU (see Figure 3) | 336, age not noted | 2011-2012 | Turtles sampled at 17 sites for genetic analyses. Mean number of turtles sampled per site = 19.8 (sd = 7.0, range = 6 to 37) | Jensen 2013 |
f MNA = Minimum Number Alive
g Sum of Chapman modified Petersen mark-recapture population estimates across 13 ponds.
Prairie/Western Boreal – Canadian Shield population
Similarly, no population-wide abundance estimate is available for the Prairie/Western Boreal – Canadian Shield population. Given the number of water bodies that are known to support Western Painted Turtles in the Canadian Shield faunal province and high probability of many other water bodies without records supporting turtles, the overall population estimate is probably over 10,000 adult turtles in the Canadian Shield faunal province alone. The situation on the Prairies is less certain. Turtle range narrows north to south toward the west, with native range limited to the Missouri watershed in southeastern Alberta (Figure 6). Abundance likely dwindles toward the western limits of the population because of reduced range and limited amount of suitable habitat, compared to the water-rich Canadian Shield.
Fluctuations and trends
With very limited present population estimates and virtually no historical information beyond a few occurrence records, there is no information available on population trends. A long-term population decline can be inferred from habitat loss in some areas, including much of the Pacific Coast population, especially the Lower Mainland and southern Vancouver Island areas where human population growth and development have been greatest (see Habitat Trends for rates of wetland loss). Precipitous losses of wetland habitat have occurred in the Lower Fraser Valley and Capital Regional District over the past 75 – 90 years (corresponding to 3 generations of the turtles). These two areas make up almost 50% of the range of the Pacific Coast population. While the rate of wetland loss within the remainder of the range is largely unknown, losses have almost certainly occurred. It can be inferred that there has been a habitat loss of at least 35% (70% of the habitat of approximately half the population) over the past three generations.
Looking forward, human population growth is projected to be from 14% over 10 years to 30% over 26 years in the Sunshine Coast where 65% of the Pacific Coast population occurs, with similar figures across most of the DU (Table 2).
A similar situation exists in the Intermountain – Rocky Mountain population where historical habitat loss has occurred through much of the Okanagan Valley and where human development is projected to continue to increase (Table 2). In the East Kootenays, the lack of Western Painted Turtle sightings from the Columbia River wetlands between Invermere and Golden is surprising. They were possibly more widespread throughout this area historically (Larsen pers. comm. 2015), but currently are known from only three localities in a wetland complex stretching over 140 km in length. Similarly Western Painted Turtles were frequently observed along the Eagle River between Revelstoke and Sicamous, British Columbia in the 1970s (Larsen pers. comm. 2015); however, there are no recent records from this area. The interpretation is complicated by lack of systematic surveys over much of the distribution of this DU.
No overall population trend data can be inferred for the Prairie/Western Boreal – Canadian Shield population.
Rescue effect
The ability for natural recolonization of Western Painted Turtle in Canada is primarily limited by the species’ natural dispersal limitations (see Dispersal and Migration). If a population of turtles was to become extirpated, natural recolonization from adjacent United States populations would likely take generations.
Pacific Coast population
The Western Painted Turtle occurs west of the Coast / Cascade Mountains in the Puget Sound region of Washington State and Oregon’s Willamette Valley (Barela and Olson 2014), so extant populations do exist to potentially assist with rescue for the Pacific Coast population. However, the capacity of the species to naturally recolonize is doubtful. The habitat on the Lower Mainland of British Columbia is highly fragmented hindering or preventing movements from the United States. On Vancouver Island and other smaller surrounding islands, there is no possibility of rescue, as they are surrounded by salt water that freshwater turtles cannot cross. Recolonization of extirpated populations would, therefore, have to be through human intervention and reintroduction. The highly variable genetic profiles of Western Painted Turtles on the British Columbia coast (Jensen et al. 2014a) complicate any proposed reintroduction.
Intermountain – Rocky Mountain population
Western Painted Turtle populations in the interior of British Columbia appear to be generally contiguous with adjoining areas in the United States (Barela and Olson 2014). Movement and rescue would be along the generally north-south valley bottoms inhabited by the turtles (e.g., south Okanagan, East Kootenay Trench). Long-distance east-west movements within this population are unlikely to occur given the rugged mountain ranges that lie between each valley bottom. Natural recolonization from the United States is possible, but would be very slow, over the course of numerous generations.
Prairie/Western Boreal – Canadian Shield population
Western Painted Turtle populations across the Prairies are contiguous with those in the United States. The Missouri, Souris and Red River watersheds are all transboundary, facilitating cross-border movements within these waterways. No significant barriers exist between these watersheds and the more northern Qu’Appelle and Assiniboine drainages, in which the vast majority of Western Painted Turtles occur in Saskatchewan and Manitoba. Farther east into northwestern Ontario, Lake Superior and the more rugged Canadian Shield landscape reduce the likelihood of natural recolonization. Western Painted Turtles are thought to have moved into the Algoma district east of Lake Superior from Michigan’s upper peninsula (Weller et al. 2010), where they have intergraded with Midland Painted Turtles.
Threats and limiting factors
Limiting factors
Western Painted Turtles are thought to be limited in their northern distribution by either low winter temperatures and/or severe winter hypoxia (St. Clair and Gregory 1990). However, persistence and evidence of breeding of Western Painted Turtles in Moonshine Lake Provincial Park north of Peace River, Alberta (Kirtley-Wark pers. comm. 2014; Figure 4) since at least the mid-1990s suggests that Western Painted Turtles’ cold tolerance is greater than previously thought. Distribution may be more limited by dispersal capability to colonize novel watersheds.
The “slow” life history, which includes late maturity, small clutch size, and longevity, limits the potential of local populations to recover after a disturbance. Because turtles may live for decades, the presence of turtles in a pond, even for many years, may not represent a viable population.
Threats
Western Painted Turtles face a wide variety of threats across their range in Canada. Broadly categorized, the main threats are habitat loss/alteration from anthropogenic sources and road mortality, as supported by questionnaire respondents, across all populations. Habitat loss and alteration accrue from a variety of sources including residential and industrial development; agricultural activities that drain or infill water bodies; ranging cattle that degrade water bodies; invasive non-native plants, both terrestrial and aquatic, that degrade nesting habitat and water bodies, respectively, and non-native turtles that may outcompete Western Painted Turtles (Red-eared Slider) or hybridize with them (other Painted Turtle subspecies).
Overall threat impact scores are Very High - High for the Pacific Coast population, High - Medium for the Intermountain – Rocky Mountain population, and Medium for the Prairie/Western Boreal – Canadian Shield population (Table 6; see Appendices 1 – 3 for threat calculator spreadsheets). Individual Level 1 threats frequently score differently for each population, so they are discussed here in order of threat number.
# | Threat | Pacific Coast |
Intermtn / Rocky Mtn |
Prairie / Cdn Shield |
---|---|---|---|---|
1 | Residential & commercial development | Medium | Low | Low |
1.1 | Housing & urban areas | Medium | Low | Low |
1.2 | Commercial & industrial areas | Low | Low | Negligible |
1.3 | Tourism & recreation areas | Low | Low | Negligible |
2 | Agriculture & aquaculture | Low | Low | Negligible |
2.1 | Annual & perennial non-timber crops | Low | Low | Negligible |
2.2 | Wood & pulp plantations | blank | blank | blank |
2.3 | Livestock farming & ranching | Low | Low | Negligible |
2.4 | Marine & freshwater aquaculture | blank | blank | blank |
3 | Energy production & mining | Low | Negligible | Low |
3.1 | Oil & gas drilling | blank | blank | Negligible |
3.2 | Mining & quarrying | Low | Negligible | Low |
3.3 | Renewable energy | blank | blank | blank |
4 | Transportation & service corridors | Medium | Medium - Low | Low |
4.1 | Roads & railroads | Medium | Medium - Low | Low |
4.2 | Utility & service lines | Negligible | Negligible | Negligible |
4.3 | Shipping lanes | blank | blank | blank |
4.4 | Flight paths | blank | blank | blank |
5 | Biological resource use | Low | Low | Low |
5.1 | Hunting & collecting terrestrial animals | Low | Low | Low |
5.2 | Gathering terrestrial plants | blank | blank | blank |
5.3 | Logging & wood harvesting | Low | Negligible | Low |
5.4 | Fishing & harvesting aquatic resources | Unknown | Low | Unknown |
6 | Human intrusions & disturbance | Low | Low | Low |
6.1 | Recreational activities | Low | Low | Low |
6.2 | War, civil unrest & military exercises | blank | blank | blank |
6.3 | Work & other activities | Low | Negligible | blank |
7 | Natural system modifications | Medium - Low | Low | Low |
7.1 | Fire & fire suppression | blank | Unknown | Unknown |
7.2 | Dams & water management/use | Medium - Low | Low | Low |
7.3 | Other ecosystem modifications | Low | Negligible | Unknown |
8 | Invasive & other problematic species & genes | High - Medium | Unknown | Unknown |
8.1 | Invasive non-native/alien species | High - Medium | Unknown | Unknown |
8.2 | Problematic native species | Unknown | Unknown | Unknown |
8.3 | Introduced genetic material | Negligible | Negligible | Negligible |
9 | Pollution | Unknown | Unknown | Unknown |
9.1 | Household sewage & urban waste water | Unknown | Unknown | Unknown |
9.2 | Industrial & military effluents | Unknown | Negligible | Negligible |
9.3 | Agricultural & forestry effluents | Unknown | Unknown | Unknown |
9.4 | Garbage & solid waste | blank | Unknown | blank |
9.5 | Air-borne pollutants | blank | blank | blank |
9.6 | Excess energy | blank | blank | blank |
10 | Geological events | blank | Negligible | blank |
10.1 | Volcanoes | blank | blank | blank |
10.2 | Earthquakes/tsunamis | blank | blank | blank |
10.3 | Avalanches/landslides | blank | Negligible | blank |
11 | Climate change & severe weather | Unknown | Unknown | Unknown |
11.1 | Habitat shifting & alteration | blank | blank | blank |
11.2 | Droughts | Unknown | Unknown | Unknown |
11.3 | Temperature extremes | Unknown | Unknown | Unknown |
11.4 | Storms & flooding | Unknown | Unknown | Unknown |
blank | Overall Threat Impact (high range / low range): | Very High / High | High / Medium | Medium / Medium |
The highest scored threat was Threat 8 (Invasive & other problematic species & genes), which scored High-Medium for the Pacific Coast population but was “Unknown” for Intermountain – Rocky Mountain and Prairie/Western Boreal – Canadian Shield. Medium and Medium-Low threats include Threat 1 (Residential & commercial development) for the Pacific Coast population, Threat 4 (Transportation & service corridors) for the Pacific Coast and Intermountain – Rocky Mountain populations and Threat 7 (Natural system modifications) for the Pacific Coast population. The Prairie/Western Boreal – Canadian Shield population scored only Low threats (see Table 7 for a comparison of threat categories for each population).
Threat impact | Pacific Coast | Intermountain – Rocky Mountain | Prairie/Western Boreal – Canadian Shield |
---|---|---|---|
High - Medium | 8. Invasive & other problematic species & genes | blank | blank |
Medium | 1. Residential & commercial development 4. Transportation & service corridors |
blank | blank |
Medium - Low | 7. Natural system modifications | 4. Transportation & service corridors | blank |
Low | 2. Agriculture & aquaculture 3. Energy production & mining 5. Biological resource use 6. Human intrusions & disturbance |
1. Residential & commercial development 2. Agriculture & aquaculture 5. Biological resource use 6. Human intrusions & disturbance 7. Natural system modifications |
1. Residential & commercial development 3. Energy production & mining 4. Transportation & service corridors 5. Biological resource use 6. Human intrusions & disturbance 7. Natural system modifications |
Unknown | 9. Pollution 11.Climate change & severe weather |
8. Invasive & other problematic species & genes 9. Pollution 11.Climate change & severe weather |
8. Invasive & other problematic species & genes 9. Pollution 11.Climate change & severe weather |
Threat 1: Residential and commercial development
Habitat loss, both of productive pond habitat and natural nesting habitat, is a primary threat to the Western Painted Turtle in parts of its range. Complete habitat loss often results when wetlands are filled in for the purposes of residential and commercial development. Habitats that are not lost are often altered by habitat fragmentation of summer and nesting areas, riparian shoreline degradation, changes to local hydrology, and water contamination. Development rates are discussed in the Habitat Trends section for each population. New housing and commercial development is mostly a threat for the Pacific Coast population and particular areas within the Intermountain – Rocky Mountain (e.g., Okanagan Valley) and Prairie/Western Boreal – Canadian Shield (e.g., Regina) populations.
As well as direct threats to Western Painted Turtle habitat, new residential and commercial development also compounds many other threats, especially increased road networks close to water bodies, thereby raising risk of road mortality (Threat 4), invasive species (Threat 8), loss of basking structures and alterations to nesting habitat (Threat 7), increased potential for collecting individuals for pets or consumption (Threat 5), and increased pollution (Threat 9).
Threat 2: Agriculture and aquaculture
In agricultural settings, habitat loss often involves converting wetland to arable lands or pastures. Habitats that are not lost may be impacted by activities such as changes to local hydrology, or nest site degradation due to tilling. Disturbance of shallow wetlands by cattle can cause significant degradation of shoreline and riparian zones in open landscapes of the prairie, foothill and semi-desert rangelands. This physical habitat disturbance is likely more of an issue than cattle fouling water quality. Lindsay and Dorcas (2001) found Painted Turtles in North Carolina were not overly impacted by cattle accessing water bodies. The removal of native plant cover, erosion of banks, soil compaction and water pollution (or eutrophication, if a wetland is overburdened with nitrogenous waste) that follow can all affect turtles. Few new lands are anticipated to be converted for agricultural purposes over the next ten years; however intensification of existing farmlands can be expected, particularly in the agricultural areas of the Pacific Coast population.
Threat 3: Energy production and mining
Energy production and mining are not considered significant threats to populations in British Columbia. Few new mines are anticipated to be opened at the low elevations where Western Painted Turtles occur in British Columbia, and there is no petroleum exploration or development within Western Painted Turtle range in the province. However, in the Prairie/Western Boreal – Canadian Shield population, both petroleum exploration and development, and mining present potential threats. Extensive petroleum development is underway in the southern Saskatchewan Williston basin (Morgan 2014), which directly overlaps with Western Painted Turtle distribution. The greatest impacts are likely the increased road network raising the risk of road mortality (see Threat 4: Transportation and Service Corridors). The amount of direct disturbance to turtles and/or turtle habitat is unknown but may include altered water quantity and quality, especially potential groundwater disturbance from fracking methods used to access petroleum. Mining is a potential localized threat in northwestern Ontario, where there are numerous exploration sites.
Threat 4: Transportation and service corridors
Roads built through or near wetlands are a significant mortality source for Western Painted Turtles and create barriers to migration and dispersal (Gillies and St. Clair 1997; COSEWIC 2006; Griffin 2007; Engelstoft and Ovaska 2013). Mortality has been documented as high as 13% of the estimated local turtle population (Griffin 2007) in a year when western Montana wetland habitats dried up, forcing turtles to move to other ponds. Questionnaire respondents for this report consistently reported road mortality as the primary or secondary threat facing Western Painted Turtles across their range. However, road mortality does not necessarily translate into local population declines. Dorland et al. (2014) tested whether ponds in close proximity to roads suffered population declines relative to ponds without the threat of nearby roads and found no differences.
Road density varies tremendously across the Western Painted Turtle’s Canadian range (Figures 8 and 9). For example, roads are relatively sparse in northwestern Ontario. In British Columbia, however, road densities can be quite high, particularly in the Lower Fraser Valley part of the Pacific Coast population. In the Intermountain – Rocky Mountain population, most high-volume roads are in valley bottoms, the same location as Western Painted Turtles. In the Prairie/Western Boreal – Canadian Shield population, roads are distributed more evenly across the landscape, especially on the Prairies. Traffic volumes on these roads also vary significantly. Petroleum exploration across the southern prairies may significantly increase road densities in the next decade or more in the Prairie/Western Boreal – Canadian Shield population.
Some studies suggest roads impact females primarily because they bisect movement routes between aquatic environments and nearby nesting habitat (Baldwin et al. 2004). Consequently, populations with male-biased sex ratios in wetlands associated with areas of high road density have been observed (Aresco 2004; Steen and Gibbs 2004). Others have found no sex-bias in road mortality (Griffin 2007). Hatchlings are also impacted because they also follow this bisected route from their natal nests back to water bodies.
Roads may also act as an attractant to nesting females as the fill material or exposed cutbanks along roadsides may be ideal nesting substrate. This was the case in Cranbrook, British Columbia, in the late 1990s when Western Painted Turtles in Elizabeth Lake suffered high mortality crossing Highway 3 to access an exposed cutbank as nesting habitat (Gillies and St. Clair 1997).
Road mortality has the potential to alter the structure of turtle populations because turtle life histories are characterized by low annual recruitment rates, high adult survival rates, and delayed sexual maturity (Steen and Gibbs 2004). Together, these features severely constrain the ability of turtle populations to cope with added adult mortality (e.g., Brooks et al. 1991, but see Dorland et al. 2014). Roads also impact genetic diversity of Painted Turtles. Laporte et al. (2013) reported reduced mitochondrial DNA diversity (up to three times fewer haplotypes) in Midland Painted Turtle populations close to roads in eastern Quebec relative to populations without the threat of roads.
Roads have a negative impact on wetland quality, and their influence can extend more than 100 m away (Forman and Deblinger 2000). Road construction immediately adjacent to wetlands can also destroy turtle nests directly (Maltby 2000). Roadways also act as linear corridors facilitating dispersal and foraging strategy of turtle predators including Raccoons, skunks, Coyotes, and foxes (Frey and Conover 2006). Roads surrounding wetlands may thus increase predation rates significantly, particularly for small slow-moving turtles and their relatively accessible eggs.
Threat 5: Biological Resource Use
Western Painted Turtle are sometimes collected as pets, particularly by families with young children. Whether the collection of individuals is great enough to affect local populations is not known, but if it happens repeatedly over the course of a season in an area with an already low turtle population it may be possible to lower local viability. More of a concern, perhaps, is the identification and management of water bodies that are native vs. introduced Western Painted Turtles. Introducing a mid-level predator such as Western Painted Turtle to a new water body is likely to have ecological impacts on that ecosystem. If Western Painted Turtles are already present, introducing potentially very different haplotypes to that population could have fitness consequences.
Collection of long-lived turtles can be problematic because their longevity is associated with low fecundity, delayed sexual maturity, and high adult survivorship: populations cannot remain stable (or grow) when adults and older juveniles are removed at high rates (Congdon et al. 1993; Kiester and Olson 2011). While the pet trade and harvest for food present threats to many turtle species (Gibbons et al. 2000; Kiester and Olson 2011), this is not considered a major threat to Western Painted Turtle in Canada at this time, but it may be an emerging problem for some subpopulations, especially on the Sunshine Coast (Evelyn pers. comm. 2016). Western Painted Turtle harvest in Minnesota was concluded to have likely impacted populations, but whether the substantial harvest was sustainable was unclear (Gamble and Simons 2004). Angling also contributes to turtle mortality; turtles have been found dead as a result of having the bottom of their jaws torn open by hooks, preventing them from feeding (COSEWIC 2006; Welstead pers. comm. 2015).
Forestry impacts are largely restricted to a few sites in the Pacific Coast population in the Sunshine Coast and Alberni Valley areas (Western Painted Turtle Recovery Team 2016) and northwestern Ontario. In British Columbia, regulations rarely require a riparian buffer over 30 m during harvest, which Semlitsch and Bodie (2003) concluded is insufficient for protecting reptiles and amphibians. Forestry activities also require extensive road networks further exposing local populations to road mortality (Threat 4). Forestry activity is considered a negligible threat to Western Painted Turtle in the Intermountain – Rocky Mountain population because there are few merchantable forests around most Western Painted Turtle inhabited wetlands.
Threat 6: Human Intrusions and Disturbance
Adult turtles can be sensitive to disturbance by people and their pets near their nesting grounds (Gervais et al. 2009). Nesting females could abandon their nest excavation attempt if they are bothered by humans or loose pets (Maltby 2000), which could result in their return to the wetland and a new nesting attempt later. This increases the time they spend out of the water and their exposure to predators and road mortality.
Humans can also affect Western Painted Turtles directly by disturbing them at their basking or nesting sites, which is a common occurrence in popular recreation sites (Maltby 2000; COSEWIC 2006) or by capturing turtles for pets (Orchard 1986). Unintended disturbance by digging in sand / fine gravel beaches may disturb eggs or increase the likelihood of nest predation after humans have left. Disease can be a secondary expression of other environmental stressors associated with habitat degradation (Gibbons et al. 2000).
Threat 7: Natural System Modifications
Surface and/or groundwater use may impact turtle habitat (water quantity). Water quantity, particularly in the southern Prairies may be an issue for Painted Turtles. The 30 year (1980 to 2009) average water usage in Missouri and Souris drainages was all considered ‘High’ (more than 40% of available surface water is used) indicating “Severe Stress” (Environment Canada 2012). The Assiniboine watershed was ranked “Moderate” (10 to 20% is used) for the same time period. The only watershed in British Columbia analyzed was the Okanagan. It was ranked “Medium” (20 to 40% of available water is used indicating both water supply and water demand need to be managed). Other areas are deemed to have ‘Low’ water quantity threats with <10% of available water used (Environment Canada 2012).
The overgrowth of nesting grounds with grasses and invasive plants is an important threat to turtles because it limits the amount of available nesting habitat. Vegetation could be used by nesting females for hiding cover but the plant roots can make nest excavation difficult and shading can lower soil temperatures (Maltby 2000). Lower soil temperatures could alter the temperatures of the nests themselves, and thus affect temperature dependent sex determination and sex ratios in hatchlings (Refsnider and Janzen 2012). The lack of nest availability and poor quality of nesting sites close to wetlands may cause turtles to seek more suitable areas to nest, which could lead to increased movement across roadways.
In addition to reducing nesting habitat, invasive plants also pose a direct threat to turtle hatchlings during development. Plant roots have the ability to grow into nests beneath the ground thereby penetrating into eggs and entangling hatchlings (Maltby 2000), causing direct mortality. The roots can physically constrict hatchlings from emerging or encase them completely, causing mortality (Maltby 2000). Increased hatchling mortality compounds naturally low hatchling survivorship (Iverson 1991) and further reduces recruitment (Gervais et al. 2009).
Threat 8: Invasive and Other Problematic Species & Genes
Bullfrogs (Lithobates catesbeianus) are known to predate on hatchlings of both Western Painted Turtles (Jancowski and Orchard 2013) and Western Pond Turtles (Actinemys marmorata) (Sloan 2012). This threat is most pronounced in the Pacific Coast population on Vancouver Island and British Columbia’s Lower Mainland. However, Bullfrogs are also known to occur in the Intermountain – Rocky Mountain population at several locations including: South Okanagan (BC Frogwatch 2015); Nelway, BC, in the West Kootenays (Anderson pers. comm. 2015); within 7 km of the Canadian border in Idaho, upstream of Creston, BC (Beaucher pers. comm. 2015) and a small lake near Brisco, British Columbia (Conroy pers. comm. 2016).
Red-eared Sliders are often released as unwanted pets in many water bodies, mostly documented in the Pacific Coast population. Sliders are now known to successfully breed, at least occasionally, in southwestern British Columbia (Welstead pers. comm. 2015a). In the Lower Mainland, 15% of Western Painted Turtles captured and intended for transplantation had respiratory diseases, possibly transmitted from Red-eared Sliders (Welstead pers. comm. 2015c). There is much uncertainty, however, of the population effects of introduced species, and hence a range is used for the threat severity rating (moderate - serious).
Turtle nest predation by various predators such as Raccoons, skunks, Coyotes, and foxes is very common. In Quebec, raccoons were identified as the number one predator of Painted Turtle nests: 85.7% of nests were destroyed the same night they were laid (Christens and Bider 1987). Nests are at a high risk of predation if they are clumped together and near the shoreline because raccoons are known to forage near pond edges (Marchand and Litvaitis 2004). Predator-destroyed nests are an immediate threat to hatchling survival because eggs are consumed. A nest that has been preyed upon will not only have zero hatchling survival but this will impact the overall structure of the population because no juveniles will be recruited into the population.
Numbers of gulls and Racoons, human commensals, appear to be increasing at some localities, as do those of Great Blue Herons (Ardea herodias) and skunks, which are predators of nests and hatchling turtles. Seasonal cyanobacteria blooms at several sites (e.g., Swan Lake and Beaver Lake on Vancouver Island) may adversely affect turtles, but there are no data. Nest predation in Burnaby Lake is 100% if nests are not protected (Western Painted Turtle Recovery Team 2016). Separation of natural background predation levels from increased predation resulting from human-caused habitat modification is difficult. Therefore, the severity of this threat in the calculators is scored as “unknown”.
There is evidence of hybridization with other subspecies of painted turtles in Burnaby Lake (Jensen et al. 2014b), probably associated with the release of introduced C. picta subspecies sold in pet stores. Long-term impacts of this intra-specific hybridization are not clear.
Threat 9: Pollution
The number of chemicals used for industrial and agricultural purposes continues to grow. Effects of these pollutants on reptiles are poorly known (Pauli et al. 2010). Given that Western Painted Turtles frequently inhabit water bodies within urban areas that frequently collect runoff and discharge from various sources and their opportunity to accumulate toxins over a relatively long lifespan, Western Painted Turtles may be considered to be at significant risk due to pollution. Contaminant exposure is considered one of the six main causes of global reptile declines (Gibbons et al. 2000).
Polychlorinated biphenyls (PCBs), organochlorine pesticides, dioxins and furans can accumulate in the tissues of aquatic organisms, including turtles. In the industrial region of southern Ontario, toxic residues in the liver and adipose tissue of Snapping Turtles (Chyledra serpentina) are commonly above human consumption guidelines (de Solla and Fernie 2004). High levels of these toxins bioaccumulate in long-lived Snapping Turtles. Given that Painted Turtles live at least as long as Snapping Turtles (Congdon et al. 2003; Samson 2003), adult Painted Turtles may be expected to also carry high levels of such residues at sites where these chemicals are at high concentrations in the aquatic environment. In a study of Eastern Spiny Softshells (Apalone spinifera) in southern Ontario, for example, de Solla et al. (2003) found that PCB and pesticide contaminant concentrations were positively correlated with egg viability, although there was no evidence for any negative effect of PCBs or pesticides upon hatching success. Crews et al. (1995) noted that PCBs can alter Painted Turtle population structure by reversing gonadal sex at otherwise male-producing temperatures. Although central and western Canada are not generally exposed to the same intensity of industrialization, pesticides, herbicides and chemical fertilizers are used throughout rangelands, croplands, vineyards, and orchards. Some wetlands may be more affected than others by toxic infusions depending on bathymetry, hydrology, and exposure to the chemicals (proximity and concentrations). Despite their widespread applications, very little research has been conducted on the effects of these pesticides on reptiles, including turtles (Pauli et al. 2010).
Glyphosate herbicides have been observed being sprayed over Western Painted Turtle nests at Nicomen Slough in the Pacific Coast population. In Red-eared Sliders, glyphosate has been shown to reduce hatching success and result in genetic deformities, though at higher doses than are typical in most applications (Sparling et al. 2006 in de Solla 2010).
A number of emerging pollutants including fungicides, perfluorinated chemicals (PFCs), brominated flame retardants, anionic surfactants and antibiotic materials also have been shown to accumulate in various turtle species (McConnell and Sparling 2010). Few impacts have yet been shown, mostly due to lack of research. One study found sex-reversal in snapping turtles during incubation at temperatures that typically favour males (Place et al. 2001).
Most pollution contamination occurs in large urban areas, including British Columbia’s Lower Mainland (Pacific Coast population). Lost Lagoon in Vancouver’s Stanley Park is primarily a storm water retention pond. Many other water bodies in British Columbia are also very close to roadways and will suffer from contaminated runoff. Many lakes in the Lower Mainland are also closed to public swimming due to high coliform levels. Impacts of this pollution on Western Painted Turtles are not known, though in North Carolina, Painted Turtles did not show adverse effects from cattle accessing and fouling the water (Lindsay and Dorcas 2001).
Threat 11: Climate Change and Severe Weather
Climate change is likely to have variable impacts throughout the Western Painted Turtle’s range. In British Columbia, particularly in the Southern Interior, predicted changes are generally for warmer and wetter conditions overall. However, most precipitation is anticipated in the winter months (as more rain than snow, particularly at low elevations where turtles occur), while summers and early autumn are predicted to be much drier (Murdock and Werner 2011; Hamlet et al. 2013). On the Prairies, more significant drying is also anticipated (Sauchyn and Kulshreshtha 2008). Climate change may also impact water availability, compounding other demands on water (see Threat 7: Natural System Modifications).
Climate change is hypothesized to negatively impact species with temperature-dependent sex determination, such as Painted Turtles, by biasing sex-ratios (Janzen 1994). Female turtles have been shown to show plasticity in the timing of nesting and selection of nesting sites, suggesting that females may exert some control over the thermal conditions of their nests (Janzen and Morjan 1997; Schwanz and Jansen 2008). As such, the ability of females to adapt their breeding phenology in response to changing environmental temperatures is possible, although summer temperatures post-laying may have a stronger effect in determining hatchling sex-ratios (Schwanz and Janzen 2008).
An increase in mean temperature associated with climate change could severely impact turtles by resulting in single sex populations (Mitchell et al. 2008); however, others suggest temperature fluctuations may result in different outcomes (Escobedo-Galvan 2013). This may not be important for Canadian populations, however, that exist at the northern limits of the species’ global distribution, which extends much farther south where populations are naturally experiencing temperatures similar to those expected under climate change.
Number of locations
The most logical threat-based location for Western Painted Turtle would be at the water body or drainage level. For British Columbia and Ontario, this would be a pond or small lake that could be removed or have its habitat altered relatively rapidly by some threat (e.g., chemical spill, infill, drying up), affecting all turtles within the site. In some cases, this may a larger wetland complex (e.g., Creston Valley wetlands in southeast British Columbia may be one “location”).
If the water body level is used, there are 82 known locations in the Pacific Coast population (BC Ministry of Forests, Lands & Natural Resource Operations unpubl. data). However many of these likely do not support self-sustaining populations. The Intermountain – Rocky Mountain population has approximately 200 discrete water bodies with turtle observations, which may qualify as locations.
Estimates for the Prairie/Western Boreal – Canadian Shield population is more difficult because Western Painted Turtles on the prairies are more riverine than elsewhere, though many of their occurrences are in isolated oxbow lakes. The best fit of a location may then be some unquantified distance or reach of a river. Regardless, the number of locations for the DU is well into the hundreds when inhabited lakes and ponds in the Canadian Shield faunal province are taken into account.
If numerous water bodies in close proximity are taken as a location, then the number of locations will be reduced (e.g., the Pacific Coast has 36 “population units” that combine water bodies in close proximity). Potential for catastrophic wildfire, disease outbreak, drought or other threats could potentially threaten Western Painted Turtles at a more regional scale. The total number of locations under this scenario is more difficult to estimate, but still likely to be well over ten for each population
Protection, status and ranks
Legal protection and status
The Pacific Coast population (also known as “Pop. 1” in British Columbia) and Intermountain – Rocky Mountain population (“Pop. 2” in British Columbia) of the Western Painted Turtle are both listed on Schedule 1 of the federal Species at Risk Act in 2007 as Endangered and Special Concern, respectively.
In British Columbia, Western Painted Turtles are included under the provincial Wildlife Act, which prohibits the killing, collection, and harassment of all native vertebrates without a permit. General possession of Western Painted Turtles is not permitted under provincial Wildlife Acts for British Columbia, Alberta, and Saskatchewan, except by permit or licence. In Manitoba, the Western Painted Turtle was declared a protected species in 2015 and moved into Division 6 of the provincial Wildlife Act; as a result taking of individuals for personal use is no longer allowed. Ontario’s Fish & Wildlife Conservation Act prohibits possessing or killing the Western Painted Turtle, which is listed as a “specially protected reptile” under that Act’s Schedule 9. Although Alberta ranks Western Painted Turtle as S1 (Table 8) based on very limited native range, it is not included on the province’s list of Endangered Species under the Alberta Wildlife Act (Government of Alberta 2014).
Rank level | Jurisdiction | Taxon | Nature Serveh |
---|---|---|---|
Global | blank | C. picta | G5 |
Global | blank | C.p. bellii | G5T5 |
Global | blank | C.p. bellii, Pacific Coast | G5T2 |
Global | blank | C.p. bellii Intermountain – Rocky Mountain | G5T2/T3 |
Global | blank | C.p. bellii Prairie /Western – Cdn Shield | G5TNR |
National | Canada | C. picta | N5 |
National | Canada | C.p. bellii | N4N5 |
National | Canada | C.p. bellii, Pacific Coast | N2 |
National | Canada | C.p. bellii Intermountain – Rocky Mountain | N2N3 |
National | Canada | C.p. bellii Prairie /Western – Cdn Shield | NNR |
National | United States | C. picta | N5 |
National | United States | C.p. bellii | N5 |
Subnational: Canada | British Columbia | C.p. bellii, Pacific Coast | S2 |
Subnational: Canada | British Columbia | C.p. bellii Intermountain – Rocky Mountain | S2S3 |
Subnational: Canada | Alberta | C.p. bellii Prairie /Western – Cdn Shield | S1 |
Subnational: Canada | Saskatchewan | C.p. bellii | SNR |
Subnational: Canada | Manitoba | C.p. bellii | S4 |
Subnational: Canada | Ontario | C.p. bellii | S3? |
Subnational: United States | Washington | C. picta | S4S5 |
Subnational: United States | Oregon | C. picta | S2 |
Subnational: United States | Idaho | C. picta | S4 |
Subnational: United States | Montana | C. picta | S4 |
Subnational: United States | Wyoming | C.p. bellii | S4 |
Subnational: United States | Utah | C. picta | SNA |
Subnational: United States | Colorado | C.p. bellii | S5 |
Subnational: United States | Arizona | C.p. bellii | S1 |
Subnational: United States | New Mexico | C.p. bellii | SNR |
Subnational: United States | North Dakota | C. picta | SNR |
Subnational: United States | South Dakota | C. picta | S5 |
Subnational: United States | Nebraska | C. picta | S5 |
Subnational: United States | Kansas | C. picta | S5 |
Subnational: United States | Oklahoma | C.p. bellii | S2 |
Subnational: United States | Texas | C.p. bellii | S1 |
Subnational: United States | Minnesota | C. picta | S5 |
Subnational: United States | Wisconsin | C.p. bellii | SNR |
Subnational: United States | Michigan | C. picta | S5 |
Subnational: United States | Iowa | C. picta | S5 |
Subnational: United States | Missouri | C.p. bellii | S5 |
Subnational: United States | Illinois | C.p. bellii | S5 |
h NatureServe rankings: G: Global; N: National; S: Subnational; 1: critically imperilled; 2: imperilled; 3: vulnerable to extirpation or extinction; 4: apparently secure; 5: demonstrably widespread; abundant; and secure; NA: not applicable; NR: unranked (Rank not yet assessed). A range of ranks indicates uncertainty. T: indicates an infraspecific taxon ranking.
Non-legal status and ranks
Western Painted Turtle has a global ranking of G5T5 (“demonstrably widespread; abundant; and secure”). National rankings at the subspecies level also indicate the subspecies is secure when its entire range is taken into account (Table 8). Subnationally, status ranks for Western Painted Turtle vary taxonomically by jurisdiction. Many United States states within the Western Painted Turtle’s range do not rank it to the subspecies level (Table 8). Subnational status ranks in Canada range from S1 (Alberta) to S4 (Manitoba). Several states rank Painted Turtle or Western Painted Turtle as S5, but no jurisdiction in Canada considers it demonstrably secure (ranking of S5).
In British Columbia, the Pacific Coast (Pop. 1) population is “red listed” by the BC Conservation Data Centre, while the Intermountain – Rocky Mountain (Pop. 2) population is “blue listed”. These listings are analogous to their respective federal ‘Endangered” and “Special Concern” status but carry no legislated protection.
Habitat protection and ownership
Across their Canadian range, Western Painted Turtles inhabit a range of crown (mostly provincial, some municipal and federal) lands and private lands. A provincial recovery plan for the Pacific Coast population (SARA Schedule 1 ‘Endangered’) has been finalized, including Critical Habitat description (Western Painted Turtle Recovery Team 2016), but Critical Habitat has not been identified under SARA. Where they occur on federal land, Western Painted Turtles in the Pacific Coast population receive protection under SARA. The following sites occupied by Western Painted Turtle are federal land: Alaksen National Wildlife Area, Nicomen Slough, Silvermere, and the Great Blue Heron Nature Reserve, all within the Lower Mainland/Fraser River Valley (turtles in Greenburn Lake, Pender Island, within the Gulf Islands National Park Reserve appear to be C. p. picta rather than C. p. bellii; Paleczny pers. comm. 2014). The Western Painted Turtle Recovery Team (2016) states that 36% of the known sites occur on private lands and that “most” sites occur in parks or protected areas managed by regional/municipal, provincial, or federal governments.
In the Intermountain – Rocky Mountain population, Western Painted Turtles occur in the Vaseux-Bighorn National Wildlife Area in the Okanagan and may occur in the Columbia National Wildlife Area in the East Kootenay region of British Columbia. They occur in numerous provincial parks and regional / municipal parks.
In the Prairie/Western Boreal – Canadian Shield population, Western Painted Turtles are occasionally reported from Waterton Lakes National Park, but these are considered introduced (Johnston pers. comm. 2014). They are known from both Grasslands National Park in Saskatchewan and Riding Mountain National Park in Manitoba.
In British Columbia, threats posed by residential and commercial development may be addressed at least partially at the municipal level. Best management practices are available (Ovaska et al. 2004) but have no legal backing. Numerous regional districts (analogous to counties) have bylaws under official community plans that require development permit approvals. Such municipal tools may help reduce or mitigate development but are seldom legally binding. Other provincial legislation in British Columbia may provide some protection to Western Painted Turtle habitat features: Riparian Areas Regulation, Fish Protection Act, and the Water Sustainability Act.
Acknowledgements and authorities contacted
Cover photo by Ben Meunier (Cranbrook, British Columbia). GIS work by Jenny Wu (COSEWIC Secretariat). Logistic support by Kristiina Ovaska (COSEWIC Amphibians and Reptiles Co-chair), Monique Goit, Bev McBride and Angele Cyr (COSEWIC Secretariat). We thank all staff and representatives of the provincial ministries, federal departments, and conservation data centres, and the researchers and consultants who provided data, responded to requests for information, and reviewed drafts of this report. Special thanks to Kristiina Ovaska for shepherding the report through numerous edits and stages and very helpful edits and recommendations. Comments by the Amphibian and Reptile SSC members greatly improved this report.
Adama, Doug. Wildlife Biologist, LGL Environmental Research Consultants Ltd. Sidney, BC.
Basaraba, Nicole. Summit Environmental Consultants. Vernon, BC.
Beaucher, Marc-André. Head of Operations Creston Valley Wildlife Management Area, Creston, BC.
Didiuk, Andrew. Wildlife Biologist. Canadian Wildlife Service. Saskatoon, SK.
Dzilums, Andy. River Guide (former). Fairmont Hot Springs Resort. Fairmont Hot Springs, B.C.
Englestoft, Christian. Wildlife Biologist. Alula Consulting. Victoria, BC.
Evelyn, Michelle. Research Affiliate, UBC Biodiversity Research Centre, University of British Columbia, Vancouver, BC.
Gregory, Patrick. Professor, University of Victoria. Victoria, BC.
Halverson, Larry. Park Naturalist (ret’d), Kootenay National Park, Parks Canada. Radium Hot Springs, BC.
Hawkes, Virgil. Wildlife Biologist, LGL Environmental Research Consultants Ltd. Sidney, BC.
Hobbs, Jared. Wildlife Biologist, Hemmera Inc. Victoria, BC.
Johnston, Barb. Wildlife Biologist. Waterton Lakes National Park. Waterton Lakes, AB.
Kendell, Kris. Senior Biologist, Alberta Conservation Association. Edmonton, AB.
Leeming, Amy. Graduate Student, Thompson River’s University. Kamloops, BC.
Machmer, Marlene. Wildlife Biologist. Pandion Ecological Research. Nelson, BC.
Matthias, Laura. Biologist, Salt Spring Island Conservancy, Ganges, British Columbia.
Ohanjanian, Penny. Wildlife Biologist. Kimberley, BC.
Ovaska, Kristiina. Wildlife Biologist. Biolinx Environmental Research Ltd., Victoria, BC.
Quinlan, Richard. Instructor - Environmental Science, Lethbridge College. Lethbridge, AB.
Rutherford, Pamela. Associate Professor, Brandon University. Brandon, MB.
Walker, Lee-Anne. Naturalist. Fernie, B.C.
Watkins, Bill. Biodiversity Conservation Zoologist. Manitoba Conservation and Water Stewardship. Winnipeg, MB.
Wind, Elke. Consulting Herpetologist. Nanaimo, BC.
Information sources
Acierno, M.J., M.A. Mitchell, M.K. Roundtree, and T.T. Zachariah. 2006. Effects of ultraviolet radiation on 25-hydroxyvitamin D3 synthesis in red-eared slider turtles (Trachemys scripta elegans). American Journal of Veterinary Research 67:2046-2049.
Anderson, Lindsay, pers. comm. 2015. E-mail to L.A. Isaac. August, 2015. Species at Risk Biologist, BC Ministry of Forests, Lands and Natural Resource Operations. Nelson, British Columbia.
Aresco, M.J. 2004. The effect of sex-specific terrestrial movements and roads on the sex ratio of freshwater turtles. Biological Conservation 123:37-44.
Armstrong, J. 2014. Aboriginal Traditional Knowledge source report for the Western Painted Turtle. Unpubl. report prepared for the COSEWIC ATK Subcommittee. 16 pp.
Avery, H.W., J.R. Spotila, J.D. Congdon, R.U. Fischer Jr., E.A. Standora, E.A., and S.B. Avery. 1993. Roles of Diet Protein and Temperature in the Growth and Nutritional Energetics of Juvenile Slider Turtles, Trachemys scripta. Physiological Zoology 66:902-925
Baldwin, E. A., M.N. Marchard, and J.A. Litvalis. 2004. Terrestrial habitat use by nesting Painted Turtles in landscapes with different levels of fragmentation. Northwestern Naturalist 11:41-48.
Ballin, P. 2010. Annual report for HCTF #3-275. Habitat Conservation Trust Foundation, Victoria, BC. (interim project report). 17pp.
Ballin, Peter, pers. comm. 2014. Email correspondence to L.A. Isaac. July 2014. Biologist. Vancouver Community College, Vancouver, British Columbia.
Barela, K.L., and D.H. Olson. 2014. Mapping the Western Pond Turtle (Actinemys marmorata) and Painted Turtle (Chrysemys picta) in western North America. Northwestern Naturalist 95:1-12.
Basaraba, N.R.C. 2014. The ecology of Western Painted Turtles (Chrysemys picta belli) in a northern Canadian reservoir. M.Sc. thesis. Thompson Rivers University, Kamloops, British Columbia.
BC Frogwatch. 2015. Bullfrog. BC Ministry of Environment. Web site: [Accessed December 2015].
BC Ministry of Forests and Range. Undated. Biogeoclimatic ecosystem classification 1074 program. [Accessed July 2016].
BC Stats. 2014. Population estimates. BC Ministry of Technology, Innovation and Citizens' Services. [Accessed December 2014].
Beaucher, Marc-André, pers. comm. 2015. Phone conversation with L.A. Isaac. July 2015. Creston Valley Wildlife Management Area, Creston, British Columbia.
Boyer, D.R. 1965. Ecology of basking habitat in turtles. Ecology 46:99-118.
Boyle, C.A., L. Lavkulich, H. Schreier, and E. Kiss. 1997. Changes in land cover and subsequent effects on Lower Fraser Basin ecosystems from 1827 to 1990. Environmental Management 21(2): 185-196.
Brooks, R.J., G.P. Brown, and D.A. Galbraith. 1991. Effects of a sudden increase in natural mortality of adults on a population of the common snapping turtle (Chelydra serpentina). Canadian Journal of Zoology 69:1314-1320.
Bull, J.J. 1980. Sex determination in reptiles. Quarterly Review of Biology 55:3–21.
Butler, R. and W. Campbell. 1987. The Birds of the Fraser River Delta: Populations, Ecology and International Significance. Canadian Wildlife Service, Environment Canada, Occasional Paper 65, 16pp.
Carl, C. 1952. Western painted turtle gets around. Victoria Naturalist 9:25-26.
Carrière M-C., N. Rollinson, A.N. Suley, and R.J. Brooks. 2008. Thermoregulation When The Growing Season Is Short: Sex-Biased Basking Patterns in a Northern Population of Painted Turtles (Chrysemys picta). Journal of Herpetology 42:206-209.
Christens, E., and J.R. Bider. 1987. Nesting activity and hatchling success of the Painted Turtle (Chrysemys picta marginata) in southwestern Québec. Herpetologica 43:55-65.
Churchill, T.A., and K.B. Storey. 1992. Natural freezing survival by Painted Turtles Chrysemys picta marginata and C.p. bellii. American Journal of Physiology 262:R530–37.
Clark, R., and A. Grueing. 2002. Painted Turtle (Chrysemys picta bellii) nest site enhancement and monitoring, Elizabeth Lake, Cranbrook, B.C. Columbia Basin Fish and Wildlife Compensation Program, Nelson, British Columbia.
Congdon, J.D., A.E. Dunham, and R.C. van Loben Sels. 1993. Delayed sexual maturity and demographics of Blanding’s turtles (Emydoidea blandingii): implications for conservation and management of long-lived organisms. Conservation Biology 7:826-833.
Congdon, J.D., R.D. Nagle, O.M. Kinney and R.C. van Loben Sels, T. Quinter, and D.W. Tinkle. 2003. Testing hypotheses of aging in long-lived Painted Turtles (Chrysemys picta). Experimental Gerontology 38:765-772.
Conroy, Cathy, pers. comm. 2015. E-mail to L.A. Isaac. January 2016. Wildlife Biologist, Kimberley, British Columbia.
COSEWIC. 2004. COSEWIC assessment and update status report on the Red-legged Frog Rana aurora in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vi + 46 pp.
COSEWIC. 2006. COSEWIC assessment and status report on the western Painted Turtle Chrysemys picta bellii (Pacific Coast population, Intermountain-Rocky Mountain population and Prairie/Western Boreal - Canadian Shield population) in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa: vii + 40 pp.
COSEWIC 2013. Guidelines for recognizing Designatable Units. Committee on the Status of Endangered Wildlife in Canada. Web site: http://www.cosewic.gc.ca/eng/sct2/sct2_5_e.cfm [Accessed February 2014].
Costanzo, J.P., J.B. Iverson, M.F. Wright, and R.E. Lee Jr. 1995. Cole hardiness and overwintering strategies of hatchlings in an assemblage of northern turtles. Ecology 76:1772-1785.
Costanzo, J.P., S.A. Dinkelacker, J.B. Iverson, and R.E. Lee. 2004. Physiological ecology of overwintering in the hatchling Painted Turtle: multiple-scale variation in response to environmental stress. Physiological and Biochemical Zoology 77:74-79.
Crews, D., J.M. Bergeron and J.A. McLachlan. 1995. The role of estrogen in turtle sex determination and the effect of PCBs. Environmental Health Perspectives 103 (suppl. 7):73-77.
de Solla, S.R. 2010. Organic contaminants in reptiles. Pp. 289-324 in D.W. Sparling, G. Linder, C.A. Bishop and S.K. Krest (eds.). Ecotoxicology of Amphibians and Reptiles. 2nd Ed. SETAC Press, Pensacola, Florida.
de Solla, S.R., and K.J. Fernie. 2004. Characterization of contaminants in snapping turtles (Chelydra serpentina) from Canadian Lake Erie areas of Concern: St. Clair River, Detroit River, and Wheatley Harbour. Environmental Pollution 132:101-112.
de Solla, S.R., M.L. Fletcher, and C.A. Bishop. 2003. Relative contributions of organochlorine contaminants, parasitism, and predation to reproductive success of eastern spiny softshell turtles (Apalone spiniferus spiniferus) from southern Ontario, Canada. Ecotoxicology 12:261-270.
Degenhardt, W.G., C.W. Painter and A.H. Price. 1996. Amphibians and reptiles of New Mexico. University of New Mexico Press. 100 pp.
Didiuk, Andrew. pers. comm. 2014. Phone conversation with I. Adams. June 2014. Wildlife Biologist. Canadian Wildlife Service. Saskatoon, Saskatchewan.
Dorland, A., T. Rytwinski, and L. Fahrig. 2014. Do roads reduce painted turtle (Chrysemys picta) populations? PLoS One 9:e98414.
Dzilums, A., pers. comm. 2014. Email correspondence to I. Adams. November 2014. Guide/Naturalist. Fairmont Hot Springs, British Columbia.
Dyer, O., pers. comm.. 2015. Phone conversation during threats calculator conference call, January 2015. Recovery planning biologist, BC Ministry of Environment, Penticton, British Columbia.
Engelstoft, C., and K. Ovaska. 2008. Western Painted Turtle surveys on Galiano, Pender, and Vancouver Island, 2008, including surveys in selected CRD Regional Parks. Unpubl. report Prepared for CRD Parks and Habitat Acquisition Trust, Victoria, British Columbia. 46 pp.
Engelstoft, C. and K. Ovaska. 2011, 2013-2015. Western Painted Turtle surveys and stewardship activities on Vancouver Island in 2010. Annual reports prepared for Habitat Acquisition Trust, Victoria, British Columbia. [Accessed May 2016].
Engelstoft, C. and K. Ovaska, unpubl. data, 2016. Data files from Habitat Acquisition Trust, Victoria, British Columbia.
Engelstoft, C., and S. Thorpe. 2015. Western Painted Turtle visual surveys and eDNA sampling on the east coast of Vancouver Island, 2014. Unpubl. report prepared for Ministry of Forests, Lands and Natural Resource Operations, Nanaimo, British Columbia. 21 pp.
Environment Canada. 1992. State of the Environment for the Lower Fraser River Basin, Ottawa: Environment Canada and BC Ministry of Environment, Lands and Parks, 66 pp.
Environment Canada. 2012. Canada Water Act: Annual Report for April 2011 to March 2012. Environment Canada. Gatineau, QC. x + 47 pp.
Ernst, C.H. 1971. Population dynamics and activity cycles of Chrysemys picta in Southeastern Pennsylvania. Journal of Herpetology 5:151-160.
Ernst, C.H. 1972. Temperature-activity relationship in the Painted Turtle, Chrysemys picta. Copeia 1972:217-222.
Ernst, C.H,. and J.E. Lovich. 2009. Turtles of the United States and Canada. 2nd edition. The Johns Hopkins University Press, Baltimore, MD. xii + 827 pp.
Escobedo-Galvan, A.H. 2013. Temperature-dependent sex determination in an uncertain world: advances and perspectives. Revista Mexicana de Biodiversidad 84:727-730.
Eskew, E.A., S.J. Price, and M.E. Dorcas. 2010. Survivorship and population densities of Painted Turtles (Chrysemys picta) in recently modified suburban landscapes. Chelonian Conservation and Biology 9:244-249.
Evelyn, M., pers. comm. 2016. E-mail correspondence to K. Ovaska. September – November, 2016.Research Affiliate, UBC Biodiversity Research Centre, University of British Columbia, Vancouver, British Columbia.
Forman, R.T.T., and R.D. Deblinger. 2000. The ecological road-effect zone of a Massachusetts (U.S.A.) suburban highway. Conservation Biology 14:36–46.
Frazier, M.R., R.B. Huey, and D. Berrigan. 2006. Thermodynamics constrains the evolution of insect population growth rates: “warmer is better”. The American Naturalist 168:512-520.
Frey, S.N., and M.R. Conover. 2006. Habitat use by meso-predators in a Corridor Environment. Journal of Wildlife Management 70:1111-1118.
Gamble, T. and A.M. Simons. 2004. Comparison of harvested and nonharvested painted turtle populations. Wildlife Society Bulletin 32:1269–1277.
Gervais, J., D. Rosenberg, S. Barnes, C. Puchy, and E. Stewart. 2009. Conservation Assessment For The Western Painted Turtle In Oregon (Chrysemys picta bellii). Version 1.1. US Bureau of Land Management, US Fish & Wildlife Service, US Forest Service, Oregon Department of Fish and Wildlife, City of Portland. Portland, Oregon.
Gibbons, J.W., D.E. Scott, T.J. Ryan, K.A. Buhlmann, T.D. Tuberville, B.W. Metts, J.L. Greene, T. Mills, Y. Leiden, S. Poppy, and C.T. Winne. 2000. The Global Decline of Reptiles, Déjà Vu Amphibians. Bioscience 50:653-666.
Gillies, C., and R. St. Clair. 1997. Painted turtle crossing assessment, Elizabeth Lake, Cranbrook, B.C. Prepared for Columbia Basin Fish and Wildlife Compensation Program, Nelson, British Columbia.
Glass, Ian, pers. comm. 2014. Email correspondence to I. Adams. June 2014. Librarian, Institute for Wetland and Waterfowl Research, Ducks Unlimited Canada. Stonewall, MB.
Government of Alberta. 2014. Species assessed by Alberta’s Endangered Species Conservation Committee. July 4, 2014. Alberta Environment and Sustainable Resource Development. Edmonton, Alberta. 2 pp.
Grayson, K.L., and M.E. Dorcas. 2004. Seasonal temperature variation in the Painted Turtle (Chrysemys picta). Herpetologica 60:325-336.
Griffin, K.A. 2007. Spatial population dynamics of Western Painted Turtles in a wetland ecosystem in northwestern Montana. PhD dissertation. University of Montana. Missoula, MT. vii + 221 pp.
Habitat Group. 1978. Fraser River Estuary Study - Habitat Report. Fraser River Estuary Steering Committee, Government of Canada and Province of British Columbia. 181 pp.
Halverson, Larry, pers. comm. 2014 Email correspondence to I. Adams. November 2014. Park Naturalist (ret’d.), Kootenay National Park, Radium Hot Springs, BC.
Hamlet, A.F. M. McGuire Elsner, G.S. Mauger, S-Y. Lee, I. Tohver, and R.A. Norheim. 2013. An Overview of the Columbia Basin Climate Change Scenarios Project: Approach, Methods, and Summary of Key Results. Atmosphere-Ocean 51:392-415
Hammond, K.A., J.R. Spotila, and E.A. Standora. 1988. Basking behavior of the turtle Pseudemys scripta: effects of digestive state, acclimation temperature, sex and season. Physiological and Biochemical Zoology 61:69–77.
Hawkes, V.C., K. Tuttle, A. Leeming, and D. Adama. 2013. CLBMON-11B3 Revelstoke Reach Painted Turtle Monitoring Program. Annual Report – 2012. LGL Report EA3414. Unpubl. report by Okanagan Nation Alliance and LGL Limited environmental research associates, Sidney, British Columbia, for BC Hydro Generation, Water Licence Requirements, Burnaby, British Columbia. 34 pp.
Hecnar, Steve, pers. comm. 2014. Email correspondence to L.A. Isaac. December 2014. Professor, Department of Biology, Lakehead University, Thunder Bay, ON.
Hickling, R., D.G. Roy, J.K. Hill, R. Fox, and C.D. Thomas. 2006. The distributions of a wide range of taxonomic groups are expanding poleward. Global Change Biology 12:450-455.
House, W.J., Nall, I.M., and B. Thomas. 2010. Interpond movements of Western Painted Turtles (Chrysemys picta) in East-Central Kansas. The Southwestern Naturalist 55:403-410.
Isaac, L.A. 2014. Ecology of a focal wetland species: the Western Painted Turtle in the Creston Valley. Report to Columbia Fish and Wildlife Compensation Program. Castlegar, British Columbia.
Isaac, L.A. 2016. Ecology of a focal wetland species: Western Painted Turtle in the Creston Valley Year 3. Report to Columbia Fish and Wildlife Compensation Program. Castlegar, British Columbia.
Iverson, J.B. 1991. Patterns of survivorship in turtles (Testudines). Canadian Journal of Zoology. 69:385-391.
Iverson, K., D., Curran, T. Fleming, and A. Haney. 2008. Sensitive Ecosystems Inventory – Okanagan Valley: Vernon to Osoyoos, 2000 – 2007. Methods, Ecological Descriptions, Results and Conservation Tools. Technical Report Series No. 495, Canadian Wildlife Service, Pacific and Yukon Region, Delta, British Columbia. xiii + 224 pp.
Jackson D.C. 2000. How a turtle’s shell helps it survive prolonged anoxic acidosis. News in Physiological Science 15:181–185.
Jamieson, B., M. Thomas, T. Kinley and M. Worgan. 2009. A Management strategy for species at risk in a semi-urban landscape on the Shuswap Reserve Lands at Invermere, B.C. Report for Kinbasket Developoment Corporation and the Shuswap Indian Band. Invermere,British Columbia. 86pp.
Jancowski, K. and S.A. Orchard. 2013. Stomach contents from invasive American bullfrogs Rana catesbeianus (= Lithobates catesbeianus) on southern Vancouver Island, British Columbia, Canada. NeoBiota 16: 17–37
Janzen, F.J. 1994. Climate change and temperature-dependent sex determination in reptiles. Proceedings of the National Academy of Sciences of the United States of America 91:7487-7490.
Janzen, F.J., and C.L. Morjan. 1997. Repeatability of microenvironment-specific nesting behaviour in a turtle with environmental sex determination. Animal Behaviour 62:73-82.
Jensen, E.L. 2013. Genetic assessment of taxonomic uncertainty and conservation units in Painted Turtles, with a focus on the at-risk Chrysemys picta bellii in British Columbia. M.Sc. thesis. University of British Columbia Okanagan, Kelowna, British Columbia.
Jensen, E.L., P. Govindarajulu, and M.A. Russello. 2014a. When the shoe doesn’t fit: Applying conservation unit concepts to western Painted Turtles at their northern periphery. Conservation Genetics 15:261–274.
Jensen, E.L., P. Govindarajulu, J. Madsen and M.A. Russello. 2014b. Extirpation by introgression? Genetic evidence reveals hybridization between introduced Chrysemys picta and endangered Western Painted Turtles (C.p.bellii) in British Columbia’. Herpetological Conservation and Biology 9:342-353.
Jensen, E L., P. Govindarajulu, and M.A. Russello. 2015. Genetic Assessment of Taxonomic Uncertainty in Painted Turtles. Journal of Herpetology 49:314-324.
Johnston, Barb, pers. comm. 2014. Email correspondence to I. Adams. July 2014. Wildlife Biologist. Waterton Lakes National Park, Waterton Lakes, Alberta.
Kendell, K., pers. comm. 2014. Email correspondence to L.A. Isaac. August 2014. Senior Biologist, Alberta Conservation Association, Sherwood Park, Alberta.
Kiester, A.R., and D.H. Olson. 2011. Prime time for turtle conservation. Herpetological Review 42:198–204.
Kirtley-Wark, Monica, pers. comm.2014. Email correspondence to L.A. Isaac. December 2014. Conservation Officer. Alberta Ministry of Justice and Solicitor General. Grande Prairie, Alberta.
Laporte, M., C-O Silva Beaudry, and B. Angers. 2013. Effects of road proximity on genetic diversity and reproductive success of the Painted Turtle (Chrysemys picta). Conservation Genetics 14:21-30.
Larsen, Karl, pers. comm. 2015. Discussion with I. Adams. June 2015. Professor. Department of Natural Resource Sciences, Thompson Rivers University. Kamloops, British Columbia.
Lea, T. 2008. Historical (pre-settlement) ecosystems of the Okanagan Valley and Lower Similkameen Valley of British Columbia – pre-European contact to the present. Davidsonia 19:3-36.
Lefevre, K., and R.J. Brooks. 1995. Effects of sex and body size on basking behavior in a northern population of the Painted Turtle, Chrysemys picta. Herpetologica 51:217-224.
Lesica, P., and F.W. Allendorf. 1995. When are peripheral populations valuable for conservation? Conservation Biology 9:753-760.
Lindeman, P.V. 1996. Comparative life history of Painted Turtles (Chrysemys picta) in two habitats in the inland Pacific Northwest. Copeia 1996:114-130.
Lindsay, S. D., and M. E. Dorcas. 2001. Effects of cattle on reproduction and morphology of pond dwelling turtles in North Carolina. The Journal of the Elisha Mitchell Scientific Society 117:249-257.
Lindsey, M.K., Zhang, Y., Forstner, M.R.J., and D. Hahn. 2013. Effects of the freshwater turtle Trachemys scripta elegans on ecosystem functioning: an approach in experimental ponds. Amphibia-Reptilia 34:75-84.
Macartney, M.J., and P.T. Gregory. 1985. The western Painted Turtle in Kikomun Creek Provincial Park. Department of Biology, University of Victoria, Victoria, British Columbia. 95 pp.
MacCulloch, R.D., and D.M. Secoy. 1983a. Demography, growth, and food of western painted turtles, Chrysemys picta bellii (Gray), from southern Saskatchewan. Canadian Journal of Zoology 61:1499-1509.
MacCulloch, R.D., and D.M. Secoy. 1983b. Movement in a river population of Chrysemys picta bellii in southern Saskatchewan. Journal of Herpetology 17:283-285.
Machmer, Marlene, pers. comm. 2014. Email correspondence to I. Adams. November 2014. Wildlife Biologist, Pandion Ecological Research, Ltd. Nelson, British Columbia.
McTaggart Cowan, I. 1938. Distribution of turtles in coastal British Columbia. Coepia 1938:91.
Major, D., K. Moore, D. Buffett, and T. Tam. 2009. An Analysis of Loss and Conservation Prioritization of Fraser Lowland Wetlands 1989-2009. Web site: http://www.verney.ca/assets/SSEC_Presentations/Session%209/9D_DanBuffett_Abstract.pdf [Accessed December 2014].
Maltby, J. 2000. Painted Turtle (Chrysemys picta) nest site enhancement and monitoring, Red Devil Hill nest site. Unpubl. report prepared for Columbia Basin Fish and Wildlife Compensation Program. 18 pp.
Marchand, K.A., A. Stulberg, C.M. Somers and R.G. Poulin. 2015. Western Painted Turtle - Record Carapace Length. Herpetological Review 46:617.
Marchand, L.J. 1942. A contribution to the knowledge of the natural history of certain freshwater turtles. MSc. Thesis, University of Florida. Gainsville, Florida.
Marchand, M.N., and J.A. Litvaitis. 2004. Effects of landscape composition, habitat features and nest distribution on predation rates of simulated turtle nests. Biological Conservation 117:243-251.
Matthias, L., pers. comm. 2016. E-mail correspondence to K. Ovaska. September, 2016. Biologist, Salt Spring Island Conservancy, Ganges, British Columbia.
Matsuda, B., D. Green, and P.T. Gregory. 2006. Amphibians & Reptiles of British Columbia. Royal BC Museum, Victoria, British Columbia. 288 pp.
McAuliffe, J.R. 1978. Seasonal Migration Movements of a Population of the Western Painted Turtle, Chrysemys picta bellii (Reptilia, Testudines, Testudinae). Journal of Herpetology 12:143-149.
McConnell, L.L., and D.W. Sparling. 2010. Emerging contaminants and their potential effects on amphibians and reptiles. Pp. 487-509 in D.W. Sparling, G. Linder, C.A. Bishop and S.K. Krest (eds.). Ecotoxicology of Amphibians and Reptiles. 2nd Ed. SETAC Press, Pensacola, Florida.
McPhee, M., P. Ward, J. Kirkby, L. Wolfe, N. Page, K. Dunster, N. K. Dawe, and I. Nykwist. 2000. Sensitive Ecosystems Inventory: East Vancouver Island and Gulf Islands, 1993 - 1997. Volume 2: Conservation Manual. Canadian Wildlife Service, Pacific and Yukon Region, Delta, British Columbia. xiv + 224 pp.
McTaggart Cowan, I. 1936. A review of reptiles and amphibians of British Columbia. Pp K16-25 in Report of the provincial museum of natural history. Province of British Columbia,Victoria, British Columbia.
Meidinger, D., and J. Pojar (eds.). 1991. Ecosystems of British Columbia. British Columbia Ministry of Forests Special Report Series No. 6, Victoria, British Columbia. 330 pp.
Midwood J.D., N.A. Cairns, L.J. Stoot, S.J. Cooke and G. Blouin-Demers. 2015. Bycatch mortality can cause extirpation in four freshwater turtle species. Aquatic Conservation: Marine and Freshwater Ecosystems 25:71–80.
Moldowan, Patrick, pers. comm. 2015. Email correspondence with I. Adams. December 2015. Wildlife Biologist. Laurentian University, Sudbury, Ontario.
Montana Field Guide. 2014. Chrysemys picta. Montana Natural Heritage Program and Montana Fish, Wildlife and Parks. [Accessed June 2014].
Moore, K, P. Ward, and K. Roger. 2003. Urban and agricultural encroachment onto Fraser Lowland Wetlands – 1989 to 1999 [PDF; 156 Kb]. 2003 Georgia Basin/Puget Sound Research Conference Proceedings. Abstract only. [Accessed December 2014].
Morgan, G. 2014. Saskatchewan’s Torquay play slowly proving up its potential. Alberta Oil. September 2014 issue. [Accessed December 2014].
Munoz, A. 2004. Chemo-orientation using conspecific chemical cues in the stripe- necked terrapin (Mauremys leprosa). Journal of Chemical Ecology 30:519-530.
Murdock, T.Q., and A.T. Werner. 2011. Canadian Columbia Basin Climate Trends and Projections: 2007- 2010 Update. Pacific Climate Impacts Consortium, University of Victoria, Victoria, British Columbia. viii + 43 pp.
National Hydro Network. 2007. Natural Resources Canada, Earth Sciences Sector, Mapping Information Branch, Centre for Topographic Information – Sherbrooke, Quebec. Web site: GeoBase Data Collections [Accessed November 2014].
NatureServe. 2016. NatureServe Explorer: An online encyclopedia of life [web application]. NatureServe, Arlington, Virginia. [Accessed June 2016].
Nussbaum, R.A., E.D. Brodie Jr., and R.M. Storm. 1983. Amphibians and Reptiles of the Pacific Northwest. University of Idaho Press, Moscow, Idaho.
Ohanjanian, P. pers. comm. 2014. Email correspondence to L.A. Isaac. October 2014. Wildlife Biologist. Kimberley, British Columbia.
Orchard, S. 1986. Painted turtle (Chrysemys picta) habitat use information and habitat suitability index model. Unpubl. report for Research Branch, Ministry of Forests, Victoria, British Columbia. 24 pp.
Ovaska, K., and C. Engelstoft. 2009. Surveys for the endangered Western Painted Turtle within CRD Regional Parks in 2009. Unpubl. report prepared for CRD Parks, Victoria, British Columbia. 33 pp.
Ovaska, K., and C. Engelstoft. 2010, 2012. Western Painted Turtle surveys and stewardship activities on Vancouver Island and the Gulf Islands in 2009 and 2011. Annual reports prepared for Habitat Acquisition Trust, Victoria, British Columbia. [Accessed May 2016].
Ovaska, K., S. Lennart, C. Engelstoft, L. Matthias, E. Wind and J. MacGarvie. 2004. Best management practices for amphibians and reptiles in urban and rural environments in British Columbia. Report prepared for the BC Ministry of Water Land and Air Protection, Nanaimo, British Columbia. 151 pp.
Place, A.R., J. Lang, S. Gavasso and P. Jeyasuria. 2001. Expression of P4arom in Malaclemys terrapin and Chelydra serpentina: a tale of two sites. J. Exp. Zool. 290:673--690
Packard, G.C., and M.J. Packard. 2001. The Overwintering strategy of hatchling painted turtles, or how to survive in the cold without freezing. Bioscience 51:199-207.
Packard, G.C., S.L. Fasano, M.B. Attaway, L.D. Lohmiller, and T.L. Lynch. 1997. Thermal environment for overwintering hatchlings of the Painted Turtle (Chrysemys picta). Canadian Journal of Zoology 13:401–406.
Packard, G.C., M.J. Packard, C.L. Morjan, and F.J. Janzen. 2002. Cold-tolerance of hatchling Painted Turtles (Chrysemys picta bellii) from the southern limit of distribution. Journal of Herpetology 36:300-304.
Paleczny, Michelle, pers. comm. 2014. Email correspondence to L.A. Isaac. August 2014. Resource Management Officer. Gulf Islands National Park, Sidney, British Columbia.
Pauli, B.D., S. Money and D.W. Sparling. 2010. Ecotoxicology of pesticides in reptiles. Pp. 201-224 in D.W. Sparling, G. Linder, C.A. Bishop and S.K. Krest (eds.). Ecotoxicology of Amphibians and Reptiles. 2nd Ed. SETAC Press, Pensacola, FL.
Pearse, D.E., and J.C. Avise. 2001. Turtle mating systems: behavior, sperm storage, and genetic paternity. Journal of Heredity 92:206-211.
Pearson, K.J. 2005. Southern headwaters at risk project (SHARP) amphibian and western Painted Turtle (Chrysemys picta) surveys, 2003-2004. Alberta Sustainable Resource Development, Fish and Wildlife Division, Alberta Species at Risk Report No. 97. Edmonton, Alberta. vii + 29 pp.
Pearson, Kimberley, pers. comm. 2014 Phone conversation with I. Adams. November 2014. Wildlife Biologist. Waterton Lakes National Park, Waterton Lakes, Alberta.
Place, A.R., J. Lang, S. Gavasso and P. Jeyasuria. 2001. Expression of P4arom in Malaclemys terrapin and Chelydra serpentina: a tale of two sites. Journal of Experimental Zoology 290:673--690.
Polar Geoscience. 2012. Phase 3 Okanagan Basin Water Supply and Demand Project: Projected Water Supply and Use in the Okanagan Basin (2011-2040) - Okanagan Basin Water Accounting Model Results. Okanagan Basin Water Board, Kelowna, British Columbia. vii + 58 pp + Appendices.
Quinlan, Richard, pers. comm. 2014. Email correspondence to L.A. Isaac in 2014. Fish and Wildlife Technology Instructor, Lethbridge College. Lethbridge, Alberta.
Raney, E.C., and E.A. Lachner. 1942. Summer food of Chrysemy picta marginata in Chautauqua Lake, New York. Copeia 1942:83-85.
Regional District of East Kootenay. 2014. Development Permit Area - Procedures and Application Information Regional District of East Kootenays. Cranbrook, BC. [Accessed December 2014].
Regional District of Okanagan Similkameen. 2014. Environmental Planning. Regional District of Okanagan Similkameen. Penticton, BC. Web site: http://www.rdos.bc.ca/departments/development-services/planning/environmental-planning/ [Accessed December 2014]
Refsnider J. M., and F.J. Janzen. 2012. Behavioural plasticity may compensate for climate change in a long-lived reptile with temperature-dependent sex determination. Biological Conservation 152:90-95
Refsnider, J.M., Warner, D.A., and F.J. Janzen. 2013. Does shade cover availability limit nest-site choice in two populations of a turtle with temperature-dependent sex determination? Journal of Thermal Biology 38:152-158.
Roe, J.H., and A. Georges. 2008. Maintenance of variable responses for coping with wetland drying in freshwater turtles. Ecology 89:485–494.
Ryan, T.J., and A. Lambert. 2005. Prevalence and colonization of Placobdella on two species of freshwater turtles (Graptemys geographica and Sternotherus odoratus). Journal of Herpetology 39:284-287.
Safriel, U.N., S. Volis, and S. Karr. 1994. Core and peripheral populations and global climate. Israel Journal of Plant Science 42:331-345.
Salafsky, N., D. Salzer, A.J. Stattersfield, C. Hilton-Taylor, R. Neugarten, S.H.M. Butchart, B. Collen, N. Cox, L.L. Master, S. O’Connor, and D. Wilkie. 2008. A standard lexicon for biodiversity conservation: unified classifications of threats and action. Conservation Biology 22:897-911.
Samson. J. 2003. The life history strategy of a northern population of midland Painted Turtle (Chrysemys picta marginata). M.Sc. thesis, University of Guelph, Guelph, Ontario. 154 pp.
Sarell, M. 1990. Survey of Relatively Natural Wetlands in the South Okanagan.BC Ministry of Environment, Lands and Parks. Penticton, BC.
Sauchyn, D., and S. Kulshreshtha 2008. Prairies. Pp 275-328 in D.S. Lemmen, F.J. Warren, J. Lacroix and E. Bush (eds.) From Impacts to Adaptation: Canada in a Changing Climate 2007. Government of Canada, Ottawa, Ontario.
Schiller, N.R., and K.W. Larsen. 2012. Revelstoke Reach Western Painted Turtle monitoring program. Kamloops, British Columbia. Unpubl. report prepared for BC Hydro. Burnaby, British Columbia. 77 pp.
Schindler, D.W., and W.F. Donahue. 2006. An impending water crisis in Canada’s western prairie provinces. Proceedings of the National Academy of Science USA 103:7210–7216.
Schwanz, L.E., and F. J. Janzen. 2008. Climate Change and Temperature-Dependent Sex Determination: Can Individual Plasticity in Nesting Phenology Prevent Extreme Sex Ratios? Physiological and Biochemical Zoology 81:826-834.
Schwarzkopf, L., and R.J. Brooks. 1987. Nest-site selection and offspring sex ratio in Painted Turtles, Chrysemys picta. Copeia 1987:53-61.
Semlitsch, R.D. and J.R. Bodie. 2003. Biological criteria for buffer zones around wetlands and riparian habitats for amphibians and reptiles. Conservation Biology 17:1219–1228.
Shaffer, H.B. et al. (59 authors). 2013. The western painted turtle genome, a model for the evolution of extreme physiological adaptations in a slowly evolving lineage. Genome Biology 14:R28.
Sloan, L.M. 2012. Population structure, life history, and terrestrial movements of western pond turtles (Actinemys marmorata) in lentic habitats along the Trinity River, California. M.S. thesis. Humboldt State University. Arcata, California. xv + 96 pp.
Spackman, S.C., and J.W. Hughes. 1995. Assessment of minimum stream corridor width for biological conservation: species richness and distribution along mid-order streams in Vermont, USA. Biological Conservation 71:325-332.
Sparling, D.W., G. Linder, C.A. Bishop and S.K. Krest. (eds.). 2010. Ecotoxicology of amphibians and reptiles. 2nd Ed. SETAC Press, Pensacola, Florida. 944 pp.
St. Clair, R.J., and P.T. Gregory. 1990. Factors affecting the northern range limit of Painted Turtles (Chrysemys picta) – winter acidosis or freezing. Copeia 1990:1083-1089.
Starkey, D.E., H.B. Shaffer, R.I. Burke, M.R. Forstner, J.B. Iverson, F.J. Janzen, A.G.J. Rhodin, and G.R. Ultsch. 2003. Molecular systematics, phylogeography, and the effects of Pleistocene glaciation in the Painted Turtle (Chrysemys picta) complex. Evolution 57:119-128.
Stebbins, R.C. 1966. A Field Guide to Western Reptiles and Amphibians. The Peterson Field Guide Series. Sponsored by the National Audubon Society. Houghton Mifflin Co., Boston, Massachusetts. 279 pp.
Steciw, Julie., pers. comm. 2014. Email correspondence to Ian Adams. August 2014. Species at Risk Biologist. BC Ministry of Forests, Lands and Natural Resource Operations. Williams Lake, British Columbia.
Steen, D.A., and J.P. Gibbs. 2004. Effects of Roads on the Structure of Freshwater Turtle Populations. Conservation Biology 18:1143-1148.
Stone, P.A. 2001. Movements and demography of the Sonoran mud turtle, Kinosternon sonoriense. Southwestern Naturalist 46:41–53.
Storer, T.I. 1937. Further notes on the turtles of the north Pacific coast of North America. Copeia 1:9-11.
Storey, K.B., J.M. Storey, S.P.J. Brooks, T.A. Churchill, and R.J. Brooks. 1988. Hatchling turtles survive freezing during winter hibernation. Proceedings of the National Academy of Sciences USA 13:8350–8354.
Sunshine Coast Regional District. 2003. Sunshine Coast Habitat Atlas; forest cover map [PDF; 8.8 Mb]. [Accessed July 2016].
Taylor, G.M., and E. Nol. 1989. Movements and hibernation sites of overwintering Painted Turtles in southern Ontario. Canadian Journal of Zoology 67:1877-1881.
Tesche, M.R. 2014. Effective sampling and detecting biogeographic trends of the Painted Turtle, Chrysemys picta. M.Sc. thesis. University of British Columbia Okanagan. Kelowna, British Columbia. vii + 63 pp.
Thomas, R.B., and W.S. Parker. 2000. Intrasexual variations in overland movements of slider turtles. Journal of Herpetology 34:469–472.
Ultsch, G.R. 1989. Ecology and physiology of hibernation and overwintering among freshwater fishes, turtles, and snakes. Biological Reviews 64:435-515.
Ultsch, G.R., M.E. Carwile, C.E. Crocker, and D.C. Jackson. 1999. The physiology of hibernation among Painted Turtles: The eastern Painted Turtle Chrysemys picta picta. Physiological and Biochememical Zoology 72:493–501.
Ultsch, G.R., G.M. Ward, B.R. Kuhajda, and E.R. Steward. 2001. Intergradation and origins of subspecies of the turtle Chrysemys picta: morphological comparisons. Canadian Journal of Zoology 79:485-498.
Walker, Lee Anne, pers. comm. 2014. Email correspondence to I. Adams. June 2014. Naturalist. Fernie, British Columbia.
Ward, P., G. Radcliffe, J. Kirkby, J. Illingworth, and C. Cadrin. 1998. Sensitive Ecosystems Inventory: East Vancouver Island and Gulf Islands 1993-1997. Volume 1: Methodology, Ecological Descriptions and Results. Technical Report Series No. 320, Canadian Wildlife Service, Pacific and Yukon Region, Delta, British Columbia. x + 146 pp.
Watkins, Bill, pers. comm. 2014. Email correspondence to I. Adams. December 2014. Biodiversity Conservation Zoologist Manitoba Conservation and Water Stewardship. Winnipeg, Manitoba.
Watmough, M.D. and M.J. Schmoll. 2007. Environment Canada’s Prairie and Northern Region Habitat Monitoring Program Phase II: Recent habitat trends in the Prairie Habitat Joint Venture. Technical Report Series No. 493. Environment Canada, Canadian Wildlife Service, Edmonton, Alberta Canada.
Weller, W. 2009. New Distribution Records for Painted Turtles, Chrysemys picta, from Northwestern and Northeastern Ontario. The Canadian Field-Naturalist. 123:375-376.
Weller, W.F., J.S. Hecnar, D.R. Hecnar, G.S. Casper, and F.N. Dawson. 2010. Quantitative assessment of intergradation between two subspecies of Painted Turtles, Chrysemys picta bellii and C.p. marginata, in the Algoma District of West Central Ontario, Canada. Herpetological Conservation and Biology 5:166–173.
Welstead, K., pers. comm. 2015a. E-mail to L.A. Isaac. February, 2015. Chair, Pacific Coast Western Painted Turtle Recovery Team and Species at Risk Biologist, BC Ministry of Forests, Lands and Natural Resource Operations. Surrey, British Columbia.
Welstead, K., pers. comm. 2015b. E-mail to I. Adams. November, 2015. Chair, Pacific Coast Western Painted Turtle Recovery Team and Species at Risk Biologist, BC Ministry of Forests, Lands and Natural Resource Operations. Surrey, British Columbia.
Weldstead, K, pers. comm. 2015c. Phone communication during threats calculator call. January, 2015. Chair, Pacific Coast Western Painted Turtle Recovery Team and Species at Risk Biologist, BC Ministry of Forests, Lands and Natural Resource Operations. Surrey, British Columbia.
Welstead, Kym, pers. comm. 2016. E-mail correspondence to K. Ovaska. August, 2016. Chair, Pacific Coast Western Painted Turtle Recovery Team and Species at Risk Biologist, BC Ministry of Forests, Lands and Natural Resource Operations. Surrey, British Columbia.
Werner, B.A., W.C. Johnson, and G.R. Guntenspergen. 2013. Evidence for 20th century climate warming and wetland drying in the North American Prairie Pothole Region. Ecology and Evolution 3:3471-3482.
Western Painted Turtle Recovery Team. 2016. Recovery plan for the Painted Turtle – Pacific Coast Population (Chrysemys picta pop. 1), in British Columbia. B.C. Ministry of Environment, Victoria, BC. 89 pp.
Wetland Stewardship Partnership. 2010. A Wetland Action Plan for British Columbia. Wetland Stewardship Partnership. Web site: http://bcwetlands.ca/wp-content/uploads/BCWetlandActionPlan_WSP_2010.pdf [Accessed July 2016].
Wikimedia Commons. 2014. Painted Turtle. Web site: http://en.wikipedia.org/wiki/Painted_turtle [Accessed July 2014].
Biographical summary of report writers
Ian Adams has over 20 years of wildlife biology experience, working from Ontario to the west coast and Yukon. He specializes in species at risk management and recovery. This is his third COSEWIC status report, previously writing American Badger (2012) and Southern Flying Squirrel (2006). Ian holds an MSc in Wildlife Ecology from University of Guelph and has been based in the East Kootenay region of British Columbia since 1997.
Leigh Anne Isaac specializes in reptile and amphibian ecology. She has participated in various inventory and assessment projects for Western Painted Turtle in the Kinbasket and Revelstoke reservoirs in British Columbia. Most recently, Leigh Anne completed fieldwork on a multi-year study of Painted Turtles at Creston, BC (Intermountain-Rocky Mountain DU) which focused on population structure, habitat use, movement patterns and threat impact assessment that will directly inform recovery work for this species. As an adjunct professor at Thompson Rivers University, Leigh Anne sits on graduate student committees contributing to master’s projects such as Western Painted Turtle winter ecology.
Collections examined
No collections were examined for the preparation of this status update report.
Appendix 1. Threats assessment for the Western Painted Turtle – Pacific Coast Population.
Threats assessment worksheet
- Species or ecosystem scientific name:
- Chrysemys picta bellii, pop. 1 (Pacific Coast Population)
- Element ID:
- 24166
- Elcode:
- ARAAD01015
- Date:
- 1/27/2015
- Assessor(s):
- I. Adams & L-A Isaac (report writers), K. Ovaska (facilitator), B. McBride (COSEWIC Secretariat), G. Wilson, J. Steciw, O. Dyer, K. Welstead, P. Govindarajulu, M-A. Beaucher, R. Reudink, J. Bogart; some scores were subsequently adjusted based on review by the team and other reviewers over email.
- References:
- Draft Recovery Strategy; Draft COSEWIC status report update (2015)
Threat impact | Threat impact (descriptions) | Level 1 threat impact counts: high range |
Level 1 threat impact counts: low range |
---|---|---|---|
A | Very high | 0 | 0 |
B | High | 1 | 0 |
C | Medium | 3 | 3 |
D | Low | 4 | 5 |
- | Calculated overall threat impact: | Very High | High |
- Assigned overall threat impact:
- AB = Very High - High
- Impact adjustment reasons:
- -
- Overall threat comments:
-
Generation time estimated at 15 years, so 45 year horizon was used for severity of impact. Population size is unknown but likely <5,000 mature individuals.
Note: COSEWIC 2016 status report revised the generation time to 25-30 years for this population. It is unlikely that the change would change the assessments, which become increasingly uncertain when projected far into the future.
# | Threat | Impact (calculated) | Impact (description) | Scope (next 10 yrs) | Severity (10 yrs or 3 gen.) | Timing | Comments |
---|---|---|---|---|---|---|---|
1 | Residential & commercial development | C | Medium | Restricted (11-30%) | Serious (31-70%) | High (Continuing) | blank |
1.1 | Housing & urban areas | C | Medium | Restricted (11-30%) | Serious (31-70%) | High (Continuing) | Impacts are mostly on riparian habitat and nesting sites. Scope mostly reflects development trends in Lower Mainland and on Sunshine Coast. On Vancouver Island, there is some new development (e.g., Langford Lake: recent and ongoing development at north/west end), but development within Capital Regional District is largely already in existence and mostly historical. In Lower Mainland, Nicomen Slough has a future housing development, Silvermere has housing proposals & dock development; there is also expanding development in the Abbottsford area. On Sunshine Coast, Ruby Lake has cottage development and docks, and Sakinaw Lake has dense cottages with increasing dock development. While many sites are in regional parks (e.g., Aldergrove Lake, Beaver-Elk Lake, Buttertub Marsh), parks still have impacts from surrounding development. (Docks are considered in this category if on private lands rather than part of recreational facilities, in which case they go to 1.3). |
1.2 | Commercial & industrial areas | D | Low | Small (1-10%) | Extreme (71-100%) | High (Continuing) | There are some examples from the Lower Mainland of ongoing industrial development: Burnaby Lake (behind and north of the lake park boundary is a large industrial area); Silvermere Lake has a wood processing plant, and logs get moved across the lake - wave action may affect basking turtles. The scope is <1% on Vancouver Island (one example: back-waters of Langford Lake at Kettle Lake were developed recently for industrial purposes). |
1.3 | Tourism & recreation areas | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | Scope reflects recreational facility development mainly in Lower Mainland and Sunshine coast (>1%). Examples from Lower Mainland: Nicomen Slough - dock development; Burnaby Lake - beach development, olympic-sized rowing lanes, and proposal for a large rowing club building. Examples from Sunshine Coast: Ruby and Sakinaw lakes have possible campground development, and Catherine Lake campground may be expanded. Scope on Vancouver Island and Saltspring Island is below 1%. |
2 | Agriculture & aquaculture | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | blank |
2.1 | Annual & perennial non-timber crops | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | While habitat loss to agricultural development is mostly historical, it continues to impact turtle habitats in Lower Mainland, resulting in a scope of >1%. In Lower Mainland, ~1% of the current range (60 ha of forest) is under conversion to agriculture at Nicomen Slough; a large turtle population of 350 - 400 adults is exposed to this threat. Agriculture is increasing faster than expected in this area. Also, conversion of land to pasture and greenhouses is ongoing on Lower Mainland. Some converted land is now vegetated for part of the season. In some cases conversion of forest to agriculture may increase nesting areas, but overall impacts were considered negative. |
2.2 | Wood & pulp plantations | blank | blank | blank | blank | blank | blank |
2.3 | Livestock farming & ranching | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | Not an issue on Sunshine Coast or Vancouver Island. In Lower mainland, conversion of pasture to intensive livestock farming (chickens, dairy cattle) is increasing; also, some trampling from livestock (horses) has been observed around Nicomen. Scope is scored “Small” but is closer to 1% than to 10%. While livestock farming may have some beneficial effects in creating nesting areas, these could become population sinks; the net impact is probably negative, especially when intensive practices are used. |
2.4 | Marine & freshwater aquaculture | blank | blank | blank | blank | blank | blank |
3 | Energy production & mining | D | Low | Small (1-10%) | Moderate - Slight (1-30%) | High (Continuing) | blank |
3.1 | Oil & gas drilling | blank | blank | blank | blank | blank | blank |
3.2 | Mining & quarrying | D | Low | Small (1-10%) | Moderate - Slight (1-30%) | High (Continuing) | Mostly occurs in Lower Mainland, but some small-scale quarrying occurs for forestry road building & maintenance in Alberni Valley. Placer mining is a possibility in some areas, but while there are many claims, it is unknown whether are in turtle habitat or whether they will be developed. In the Nicomen area, dyking commissioner’s gravel source (not active right now) is right beside a turtle nesting site, and extraction of gravel could crush nests (~50% of Lower Mainland turtle population is in the Nicomen area); this could become sink habitat. Mining tenures occur across Texada island with many being renewed as recently as 2012, but their development is uncertain. Emily Lake has concerns about sticklebacks, but impacts on turtles have not been addressed. Road construction dugouts/borrow pits may at first have a positive impact on turtles by providing nesting habitat but may turn into population sinks. Uncertainty of impacts is reflected in the severity score range. |
3.3 | Renewable energy | blank | blank | blank | blank | blank | blank |
4 | Transportation & service corridors | C | Medium | Pervasive (71-100%) | Moderate (11-30%) | High (Continuing) | blank |
4.1 | Roads & railroads | C | Medium | Pervasive (71-100%) | Moderate (11-30%) | High (Continuing) | Construction of new roads and mortality on existing roads are included in this category. Road density and traffic are increasing everywhere across this DU's range. There is literature on impact of roads on turtles (e.g., Baldwin et al. 2004). Ruby Lake (Sunshine Coast) is one example of observed road mortality where nesting roadkill has been observed at a site immediately adjacent to a main road (within metres; Gordon Bay Rd.); also roadkill and severe declines have been noted elsewhere due to traffic related to increasing cottage density despite of mitigation measures (fencing and safe nesting site). In the Nicomen area, turtles are nesting on dike and killed during road grading. Railroads are estimated to quadruple due to transport of bitumen on the Lower Mainland - pose barriers to dispersal & unsafe nesting areas, but roads are the main problem. On Vancouver Island, turtle habitats within Greater Victoria are fragmented by a network of roads, logging roads are adjacent to turtle wetlands in Alberni Valley; however, documented roadkill is low, despite Habitat Acquisition Trust's efforts to solicit observations from the public (in contrast, reports of turtle sightings from ponds and lakes are frequent). Also, populations seem to persist within urban and rural landscapes (e.g., Langford Lake, Elk-Beaver Lake, Swan Lake). While the scope is pervasive, the overall average impact across the DU's range has much uncertainty. |
4.2 | Utility & service lines | blank | Negligible | Negligible (<1%) | Slight (1-10%) | High (Continuing) | Hydro lines and pipelines occur or are proposed across Lower Mainland (Kinder-Morgan pipeline expected to traverse to Burnaby Lake and perhaps other turtle habitats). Pipes either underground or elevated, so impacts would be during the construction phase only. |
4.3 | Shipping lanes | blank | blank | blank | blank | blank | blank |
4.4 | Flight paths | blank | blank | blank | blank | blank | blank |
5 | Biological resource use | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | blank |
5.1 | Hunting & collecting terrestrial animals | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | Scope is large because collection of turtles for pets or translocation to other water bodies may occur through much of the range within urban and rural areas. On Vancouver Island and Sunshine Coast, some populations are in the backcountry and less likely to be exposed to collecting. In Lower Mainland, Deer Lake had turtle traps, possibly depleting turtles from the site. There is also anecdotal information of turtles being removed from lakes in Sunshine Coast and translocation of individual turtles on Vancouver Island by the public. Population level impacts are unknown, but the average impact of collection is probably slight across the broad areas where they are exposed. |
5.2 | Gathering terrestrial plants | blank | blank | blank | blank | blank | blank |
5.3 | Logging & wood harvesting | D | Low | Restricted (11-30%) | Slight (1-10%) | High (Continuing) | Texada Island is slated for possible logging. Emily and Priest Lake have proposed cutblocks, and West of Ruby Lake Lagoon has a giant cutblock. Cranberry Lake has cutblocks. In Lower Mainland, valley bottom has already been logged, but clearcutting going on at small scale on private lands, e.g., in Nicomen slough area. On Sunshine Coast and Vancouver Island (Alberni Valley) turtles occur in forestry landscapes. Impacts are to dispersal and pose barriers to movements. Riparian buffer strips are supposed to be established, but no guarantee, especially if logging is on private land. Largest threat from forestry is likely road construction (scored elsewhere). |
5.4 | Fishing & harvesting aquatic resources | blank | Unknown | Large (31-70%) | Unknown | High (Continuing) | This category includes harvesting of turtles for food and by-catch mortality from angling. Collection for food has occurred in the Nicomen area. Intensive recreational fishing occurs in many turtle lakes. Impacts are from mortality due to fishing lures getting caught in turtles' mouths; adults are usually caught as young are often too small to take the hook. In Lower Mainland, 3 of a population of ~1000 were brought in within 1 year with hooks in the mouth. There are no reports from Sunshine Coast or Vancouver Island, but recreational fishing occurs in many lakes where turtles occur, even in parks. Impacts could be locally high if reproductive adults are removed, but averaged across the large scope, they are probably slight, but there is not enough information to assess what the population effects might be, except that they are negative. |
6 | Human intrusions & disturbance | D | Low | Pervasive (71-100%) | Slight (1-10%) | High (Continuing) | blank |
6.1 | Recreational activities | D | Low | Pervasive (71-100%) | Slight (1-10%) | High (Continuing) | Many sites are in parks or recreational areas. Impacts are mostly on nesting sites, nesting females or hatchlings, including children digging in the sand disturbing nests (examples from Saltspring Island), dogs and dog walkers, and trampling of riparian vegetation. On Sunshine Coast, there are impacts from motor boats and wake action, campgrounds, and ATV users. In Lower Mainland, ATVs are using the dyke at Nicomen and barriers and fences are not discouraging this activity. While most occupied sites are exposed to recreational activities to some degree and the scope is pervasive, there are sites, especially on Vancouver Island where turtles seem to either co-exist with recreational users (several sites within Capital Regional District) or where recreational activities appear to have minimal impacts on the turtles (Alberni Valley). Therefore, the average severity is scored slight across the DUs range. |
6.2 | War, civil unrest & military exercises | blank | blank | blank | blank | blank | blank |
6.3 | Work & other activities | D | Low | Small (1-10%) | Moderate - Slight (1-30%) | High (Continuing) | Aquatic weed removal from lakes could potentially result in mortality. This occurs in several areas on Lower Mainland: Mill and Burnaby Lake (lily-cutters – boats with big blades cut up all vegetation); Vancouver Island: Langford Lake (up to 6 turtles per hour caught in rollers during weed removal and thrown back apparently unharmed - anecdotal information from boat operators); Elk-Beaver Lake (CRD recently purchased a new weed harvester for use in these lakes to improve water quality). There is much uncertainty about population effects of this activity. |
7 | Natural system modifications | CD | Medium - Low | Large (31-70%) | Moderate - Slight (1-30%) | High (Continuing) | blank |
7.1 | Fire & fire suppression | blank | blank | blank | blank | blank | blank |
7.2 | Dams & water management/use | CD | Medium - Low | Large (31-70%) | Moderate - Slight (1-30%) | High (Continuing) | Water withdrawal and human alteration of hydrology occur across the range of this DU. On Sunshine Coast, there is water extraction from turtle habitats, in Lower Mainland, there is dyking including maintenance that involves vegetation removal, wetland draining, and ditch maintenance (dredging); Nicoman Slough is an example. On Texada Island, Priest and Emily Lakes are used as water source. Impacts are from drying of wetlands (larger lakes are often used as a water source, and would have minimal impact on turtles). It is possible that overwintering sites are affected. Beaver control and removal of old dams (aging infrastructure across the range) is also a potential problem, leading to drying of wetlands or floods that inundate nests. |
7.3 | Other ecosystem modifications | D | Low | Small (1-10%) | Slight (1-10%) | High (Continuing) | In-growth of wetlands through natural succession is a problem at some sites e.g., Colony Farms in Lower Mainland and Patterson Lake on Vancouver Island; Invasive plants are transforming shoreline habitat (Saltspring - Purple Loosestrife, Yellow-flag Iris; Nicomen Slough: Eurasian Water Milfoil. Removal of basking logs is also a concern at some sites. Beaver control that naturally creates wetland habitat is also occurring across the range of the turtles. |
8 | Invasive & other problematic species & genes | BC | High - Medium | Pervasive (71-100%) | Serious - Moderate (11-70%) | High (Continuing) | blank |
8.1 | Invasive non-native/alien species | BC | High - Medium | Pervasive (71-100%) | Serious - Moderate (11-70%) | High (Continuing) | Predation of hatchlings by introduced Bullfrogs is a problem on Vancouver Island and Lower Mainland; Orchard (2013) reported hatchling Painted Turtles from Bullfrog stomachs. There is also information on turtle-bullfrog interactions from California ("Western Pond Turtle Population Health in Lentic Habitats along the Trinity River, California" by Leah Sloan, where ponds with no bullfrogs had more juvenile turtles). Dogs can disturb nesting turtles. Red-eared Sliders (former pets) continue to be released in water bodies; there is now evidence that they can successfully breed in BC (Sandhill Crane seen to dig out a nest of sliders with live hatchlings at Reifel Sanctuary). In the Lower Mainland, 15% of turtles used for transplantation have respiratory diseases, possibly transmitted from Red-eared Sliders. There is much uncertainty, however, of the population effects of introduced species, and hence a range is used for severity (moderate - serious). |
8.2 | Problematic native species | blank | Unknown | Pervasive (71-100%) | Unknown | High (Continuing) | Numbers of gulls and Racoons, human commensals, appear to be increasing, as well as those of Great Blue Herons and skunks, which are predators of nests and hatchling turtles. There is cyanobacteria blooms at several sites (e.g., Swan Lake and Beaver Lake on Vancouver Island), which may adversely affect turtles, but there are no data. Ducks and Geese around Burnaby Lake dig up substrate and take over basking habitat. Nest predation Burnaby Lake is 100%, if nests are not protected. Separation of natural background predation levels from predation that is increasing such as a result of human-caused habitat modification is difficult. Therefore, the severity is scored as "unknown". |
8.3 | Introduced genetic material | blank | Negligible | Restricted (11-30%) | Negligible (<1%) | High (Continuing) | Hybridization mainly with other painted turtle subspecies and maintaining genetic integrity between sub-units, as revealed by micro-satellite analysis, are included in this threat. There is evidence of hydridization with other subspecies of Painted Turtles in Burnaby Lake (Burnaby Lake & Pender Island populations will be trapped in summer 2015 for further genetic testing). Eastern & Midland subspecies of the Painted Turtle have been sold in pet stores. |
9 | Pollution | blank | Unknown | Pervasive (71-100%) | Unknown | High (Continuing) | blank |
9.1 | Household sewage & urban waste water | blank | Unknown | Pervasive (71-100%) | Unknown | High (Continuing) | Run-off could be a problem on the Sunshine Coast, where most sites are surrounded by residential developments and where roads often run along wetlands and lakes. Yard run-off, sewage, and storm water run-off contribute to contamination of turtle sites. However, whether septic tank leakages are detrimental to turtles is questionable - high nutrient loads may even improve habitat through eutrophication. High levels of E. coli have been reported from many occupied lakes, and malformation in turtles has been observed in Stanley Park. Pharmaceuticals and endocrine disruptors are of particular concern. The impacts on turtles are largely unknown. |
9.2 | Industrial & military effluents | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Industrial pollutants may be an issue at some sites on Lower Mainland, and include contamination of water bodies from treated logs and oil run-off Some turtles have been observed with tumours from unknown causes. Great Blue Heron Nature Reserve (GBHER) has military effluents; management plan for GBHER has many references for effects on a variety of species from pollutants (PAHs). Although minimum impact has been shown for adults, there might be impacts on reproduction. Spills from train derailments (e.g., coal train derailment in front of the Burnaby Lake nesting beach). Many turtle sites have trains running right by them. Turtles are vulnerable to substances that bio-accumulate because of their longevity. |
9.3 | Agricultural & forestry effluents | blank | Unknown | Restricted (11-30%) | Unknown | High (Continuing) | On-going and increasing effluent run-off from agricultural herbicides and pesticides is of concern. In the Nicomen area, glyphosate has been sprayed over water and in turtle nesting areas (adult females with unusual orange tinge to shells have been observed there). Studies in Red-eared Sliders show low birth rates and genetic damage. Substances that bio-accumulate are of particular concern for long-lived species, including turtles. Impacts on populations are unknown. |
9.4 | Garbage & solid waste | blank | blank | blank | blank | blank | blank |
9.5 | Air-borne pollutants | blank | blank | blank | blank | blank | blank |
9.6 | Excess energy | blank | blank | blank | blank | blank | blank |
10 | Geological events | blank | blank | blank | blank | blank | blank |
10.1 | Volcanoes | blank | blank | blank | blank | blank | blank |
10.2 | Earthquakes/tsunamis | blank | blank | blank | blank | blank | blank |
10.3 | Avalanches/landslides | blank | blank | blank | blank | blank | blank |
11 | Climate change & severe weather | blank | Unknown | Pervasive (71-100%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Scored for the 10 year horizon but likely to have greater impacts over the long term than what the scores reflect. |
11.1 | Habitat shifting & alteration | blank | blank | blank | blank | blank | blank |
11.2 | Droughts | blank | Unknown | Pervasive (71-100%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Maintaining suitable humidity is a concern for nests. Predicted increased frequency of droughts may dry up nests, reducing hatching success. Turtles can select appropriate microhabitats with regards to temperature, but desiccation is more of a concern than increasing temperature. |
11.3 | Temperature extremes | blank | Unknown | Large (31-70%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Temperature affects sex ratios, but Western Painted Turtles already experience higher temperatures in many areas of their global range than in BC - not considered an issue. |
11.4 | Storms & flooding | blank | Unknown | Large (31-70%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Nests can survive a degree of flooding (eggs/hatchlings can survive brief submerging but not for several months). Sea level rise is not an issue for Vancouver Island sites, but a couple of sites in Lower Mainland could be affected (Iona and Alaksen). If flooding occurred during overwintering, and there were associated landslides, it could have serious effects on turtles on Nicomen Slough and elsewhere on the Lower Mainland. |
Appendix 2. Threats assessment for the Western Painted Turtle – Intermountain – Rocky Mountain Population.
Threats assessment worksheet
- Species or ecosystem scientific name:
- Chrysemys picta bellii, pop. 2, Intermountain - Rocky Mountain population
- Element ID:
- -
- Elcode:
- -
- Date:
- 1/27/2015
- Assessor(s):
- I. Adams & L-A Isaac (report writers), K. Ovaska (facilitator), B. McBride (COSEWIC Secretariat), G. Wilson, J. Steciw, O. Dyer, S. Ashpole; some scores were subsequently adjusted based on review by the team and other reviewers over email.
- References:
- Draft COSEWIC status report update (2015)
Threat impact | Threat impact (descriptions) | Level 1 threat impact counts: high range |
Level 1 threat impact counts: low range |
---|---|---|---|
A | Very high | 0 | 0 |
B | High | 0 | 0 |
C | Medium | 1 | 0 |
D | Low | 5 | 6 |
- | Calculated overall threat impact: | High | Medium |
- Assigned overall threat impact:
- BC = High - Medium
- Impact adjustment reasons:
- -
- Overall threat comments:
- Generation time estimated at 15 years, so 45 year horizon was used for severity of impact. Population size is unknown but likely <10,000 mature individuals. Note: COSEWIC 2016 status report revised the generation time to 30-40 years for this population. It is unlikely that the change would change the assessments, which become increasingly uncertain when projected far into the future.
# | Threat | Impact (calculated) | Impact (description) | Scope (next 10 yrs) | Severity (10 yrs or 3 gen.) | Timing | Comments |
---|---|---|---|---|---|---|---|
1 | Residential & commercial development | D | Low | Small (1-10%) | Extreme (71-100%) | High (Continuing) | blank |
1.1 | Housing & urban areas | D | Low | Small (1-10%) | Serious (31-70%) | High (Continuing) | Interior populations are mostly rural, with some ponds in urban areas, more likely to be a threat from recreational / seasonal developments, including development of new docks. Scope in the Okanagan and across the range is unlikely to be above 10%. |
1.2 | Commercial & industrial areas | D | Low | Small (1-10%) | Extreme (71-100%) | High (Continuing) | There are few water bodies within commercial / industrial areas. Of ~100 turtle sites in the Okanagan, only a couple have industrial development/expansion potential. Scope is close to lower end of Small. |
1.3 | Tourism & recreation areas | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | Few new facilities are likely to open, but many are already in existence. No known examples of new projects are available. In the Okanagan, new recreational areas are being developed but don't include wetlands; in the Williams Lake area, most turtles are within existing recreational areas. Scope may be just above 1% but could be Negligible. Impacts: Shoreline development could disturb hibernating turtles; not as much an issue for nesting turtles as on the coast because of differences in nesting habitats. |
2 | Agriculture & aquaculture | D | Low | Pervasive (71-100%) | Slight (1-10%) | High (Continuing) | blank |
2.1 | Annual & perennial non-timber crops | D | Low | Small (1-10%) | Moderate (11-30%) | High (Continuing) | Conversion to agricultural lands and intensification of existing use are likely to be low; some conversion is likely from existing lands to more damaging uses (e.g., agricultural land is sold for housing developments, although BC's Agricultural Land Reserve is supposed to protect against this). Minimum buffer is usually left along wetlands, but in South Okanagan there is very little buffer between agricultural lands and wetlands, resulting in high potential for habitat disturbance. |
2.2 | Wood & pulp plantations | blank | blank | blank | blank | blank | blank |
2.3 | Livestock farming & ranching | D | Low | Pervasive (71-100%) | Slight (1-10%) | High (Continuing) | Livestock ranching is extensive across much of the species' range (Thompson, East Kootenays, Cariboo), and turtle ponds are exposed to free-ranging cattle. In the Cariboo region, there is livestock use near the lakes and riparian sites as well as land development near the town centres and concerns about nesting success in the larger populations near Williams Lake and 150 Mile house. Impacts are from trampling of nests and hatchlings from alteration of riparian vegetation (for fouling of water - see Pollution), as well as from reduced water levels in ponds due to cattle actions. Severity is scored as "slight" when averaged across the range of the DU. |
2.4 | Marine & freshwater aquaculture | blank | blank | blank | blank | blank | blank |
3 | Energy production & mining | blank | Negligible | Negligible (<1%) | Moderate - Slight (1-30%) | High (Continuing) | blank |
3.1 | Oil & gas drilling | blank | blank | blank | blank | blank | blank |
3.2 | Mining & quarrying | blank | Negligible | Negligible (<1%) | Moderate - Slight (1-30%) | High (Continuing) | Few new mines anticipated in region (one potential mine is Ajax mine near Kamloops - unknown whether there are turtles there). Quarrying is not likely to occur in close proximity to turtle habitat - it is more likely to be well removed from water bodies. Quarries could impact nest sites, if not identified during EA process; burrow pits for road building may be more of a problem (as for Pacific Coast DU), but no data are available. |
3.3 | Renewable energy | blank | blank | blank | blank | blank | blank |
4 | Transportation & service corridors | CD | Medium - Low | Pervasive (71-100%) | Moderate - Slight (1-30%) | High (Continuing) | blank |
4.1 | Roads & railroads | CD | Medium - Low | Pervasive (71-100%) | Moderate - Slight (1-30%) | High (Continuing) | Roads are a major threat to this species. Most occurrences are in valley bottoms, where roads occur. Anytime access to nesting habitat is across a road, turtles are at risk. In the Cariboo region, most known turtle populations are near highways and there is a lot of road mortality; 4-laning of HWYs through the region is detrimental to turtles. ATV use also threat, but scored under 6.1. Severity is scored as moderate-slight across the entire range of the DU, because many roads are either minor and receive little traffic, or do not intersect migration routes to nesting grounds. Severity was scored as "moderate-slight", given that scope of "pervasive" includes all roads, including minor roads that receive little traffic. |
4.2 | Utility & service lines | blank | Negligible | Negligible (<1%) | Slight (1-10%) | High (Continuing) | It is possible that new hydro lines will be constructed; however, they are usually not placed close to wetlands. Impacts would be during construction phase only. |
4.3 | Shipping lanes | blank | blank | blank | blank | blank | blank |
4.4 | Flight paths | blank | blank | blank | blank | blank | blank |
5 | Biological resource use | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | blank |
5.1 | Hunting & collecting terrestrial animals | D | Low | Small (1-10%) | Slight (1-10%) | High (Continuing) | Turtles taken home as 'pets' - this does occur but probably infrequently. Collection is more likely from people picking up migrating turtles opportunistically, rather than hunting them. This activity is most likely to occur near human population centres than in backcountry - hence the scope is Small. Females may have higher chance of being collected than males because they are more exposed. Severity depends on local population. One or two turtles from a pond with >100 is unlikely to have an impact, but impacts in a small population would be much higher. The average severity across the DU's range is deemed slight. |
5.2 | Gathering terrestrial plants | blank | blank | blank | blank | blank | blank |
5.3 | Logging & wood harvesting | blank | Negligible | Negligible (<1%) | Slight (1-10%) | High (Continuing) | Forestry activity is relatively low at low elevations where turtle ponds tend to be. Riparian buffer strips are supposed to be established, but there is no guarantee that it will be done, especially if logging is on private land. Largest threat associated with forestry is likely road construction (Threat 4.1). |
5.4 | Fishing & harvesting aquatic resources | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | Threats include mortality from fishing by-catch (fishing lures getting caught in turtles' mouths); there are reports of turtles caught by fishers and hooks in turtle mouths from Gardom Lake and a few other occasional reports (O. Dyer pers. comm. 2015). Many populations are probably exposed to fishing, even in parks, but there is a need to overlay turtle distribution with fishing ponds/lakes to obtain an accurate estimate of the scope. There are unconfirmed reports of turtle harvesting for food at one site (Hardy/Gorman's Pond; O. Dyer pers. comm. 2015). There is much uncertainty about the impact on the population, and this issue required further documentation and study. Here the average severity across the DU's range is scored as "slight", reflecting the differential fishing pressure and impacts across the occupied wetlands. Net entanglement is not an issue. |
6 | Human intrusions & disturbance | D | Low | Restricted - Small (1-30%) | Slight (1-10%) | High (Continuing) | blank |
6.1 | Recreational activities | D | Low | Restricted - Small (1-30%) | Slight (1-10%) | High (Continuing) | Major concern is disruption of basking and nesting, which can be caused by almost any disturbance, e.g., dog walking, hiking, bird watching, canoeing, or camping. Few occupied ponds have motorized boats - most are too small. However, where present, motorized watercraft may disturb basking turtles, and their wake may impact nesting sites. Direct injury to turtles is unlikely. Larger concern is ATV use of shoreline habitats and nesting grounds. "Mud-bogging" is popular in some areas, but it is unknown whether it occurs in turtle habitats. Non-motorized boats can disturb turtles, especially interrupting basking. |
6.2 | War, civil unrest & military exercises | blank | blank | blank | blank | blank | There is a turtle population at Vernon military area, but training activities have little impact due to mitigation measures and avoidance of ponds in general. Not considered a threat. |
6.3 | Work & other activities | blank | Negligible | Negligible (<1%) | Serious - Moderate (11-70%) | High (Continuing) | Scope is limited to occupied ponds in agricultural areas. Impacts are from damage to nests and individual turtles from farm machinery and equipment used during tilling and mowing. Note: Should have been included under 2.1. |
7 | Natural system modifications | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | blank |
7.1 | Fire & fire suppression | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Aerial fire retardants thought to impact amphibians, but impacts on turtles are uncertain/ unstudied. There are possible impacts to water quality. Water removal from wetlands for fire suppression is also a possibility. |
7.2 | Dams & water management/use | D | Low | Large (31-70%) | Slight (1-10%) | High (Continuing) | Historically, dams have undoubtedly flooded large areas of turtle habitat (e.g., Lake Koocanusa), but major new dams are unlikely. Smaller dams, often built by landowners without permit, may cause other issues, either drying up habitat, creating new ponds (that may or may not have permanent water), or altering hydrological / groundwater regimes. Irrigation draws either directly from ponds supporting turtles or from groundwater sources that feed these ponds and may have an impact. Many Okanagan wetlands have water management projects. Most water is withdrawn from large lakes, with little or no impact on turtles; turtles are now at sites where fluctuations are within their tolerance limits (i.e., impacts have already happened). There are some benefits from water management through habitat creation (e.g., Williams Lake: creation of pot holes; Ducks Unlimited projects), which brings the overall severity rating down to slight. |
7.3 | Other ecosystem modifications | blank | Negligible | Negligible (<1%) | Unknown | High (Continuing) | Dredging and invasive plant removal can be harmful to turtles, including aquatic weed removal by mechanical harvesters. Dredging that occurs in winter could disturb or kill hibernating turtles. Invasive plant management (aquatic & terrestrial) results in alteration of habitat structure and potentially in injuries or mortality. In Shuswap, there is Eurasian Water Milfoil management all along the Okanagan Lakes; a rototiller is used in sub-surface mud to loosen weeds, usually done in winter. Introduced plants in the terrestrial habitat (knapweed and grass roots entangling or growing through hatchlings) and aquatic habitats continue to alter pond habitats in the interior of BC within this DU's range. However, there is much uncertainty about population level impacts of weed removal, which requires study. |
8 | Invasive & other problematic species & genes | blank | Unknown | Large - Restricted (11-70%) | Unknown | High (Continuing) | blank |
8.1 | Invasive non-native/alien species | blank | Unknown | Large (31-70%) | Unknown | High (Continuing) | There are introduced sliders in some lakes and also bass - uncertainty what the impacts of any of the above are to turtle populations. Therefore, the severity is scored as "unknown". |
8.2 | Problematic native species | blank | Unknown | Unknown | Unknown | High (Continuing) | Extent of nest predation is not known but is potentially very high at some localities by herons, skunks, raccoons (not native to all parts of range), mink, otters, etc. In the Creston area, a high proportion of nests are predated, but it is uncertain how much is cumulative on top of natural predation rates. |
8.3 | Introduced genetic material | blank | Negligible | Small (1-10%) | Negligible (<1%) | High (Continuing) | Human-mediated movement of painted turtles is well documented. Thus, there is high potential for genetic mixing, which largely results from released pets of other subspecies of painted turtles. Interbreeding with released sliders is also a possibility. The concern is that interbreeding might lead to genetic swamping. While this may be a problem in small coastal populations in BC, there is no indication that this is an issue for this DU. A high degree of genetic variation among regions has been documented in BC (Jensen et al. 2014). |
9 | Pollution | blank | Unknown | Large (31-70%) | Unknown | High (Continuing) | blank |
9.1 | Household sewage & urban waste water | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Septic tank seepage is of concern, as sewage still going into large lakes. Fertilizer run-off from lawns is not as big a concern across the region, as there is little housing development around most turtle ponds. Whether septic tank leakages are detrimental to turtles is questionable - high nutrient loads may even improve habitat through eutrophication. Pharmaceuticals, including endocrine disrupting substances, are of more concern, but impacts on turtles are unknown. |
9.2 | Industrial & military effluents | blank | Negligible | Negligible (<1%) | Unknown | High (Continuing) | There is potential for mine tailings leaks (Mt Polley where a recent spill occurred is not close to turtle occurrences). Not a lot of industrial pollution in the Kootenays but some in the Okanagan, but the effluents are going mainly into main streams where there are no turtles. |
9.3 | Agricultural & forestry effluents | blank | Unknown | Large (31-70%) | Unknown | High (Continuing) | Agricultural fertilizer and pesticide run-off are of concern. Persistent pollutants such as DDT are still around in the Okanagan & Creston areas, and most low elevation lakes are contaminated - impacts could be continuing. Substances that bio-accumulate are of concern for long-lived species, including turtles. |
9.4 | Garbage & solid waste | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Garbage dumping into wetlands in rural areas is still a concern throughout the Interior of BC, including south Okanagan: ~30% of wetlands have garbage in them, but the situation is improving. Probably similar rates in the Thompson area. Impacts on turtles are unknown. |
9.5 | Air-borne pollutants | blank | blank | blank | blank | blank | blank |
9.6 | Excess energy | blank | blank | blank | blank | blank | blank |
10 | Geological events | blank | Negligible | Negligible (<1%) | Serious - Slight (1-70%) | Moderate (Possibly in the short term, < 10 yrs/3 gen) | blank |
10.1 | Volcanoes | blank | blank | blank | blank | blank | blank |
10.2 | Earthquakes/tsunamis | blank | blank | blank | blank | blank | blank |
10.3 | Avalanches/landslides | blank | Negligible | Negligible (<1%) | Serious - Slight (1-70%) | Moderate (Possibly in the short term, < 10 yrs/3 gen) | There is potential for landslides to impact turtle ponds or nesting habitat (e.g., Oliver slide in 2010 - Lyndon Creek; uncertain whether aquatic habitats were impacted). A recent landslide at Vaseux Lake was 30-40 m long but did not have much impact. Possible in the near future but with low probability of occurrence. |
11 | Climate change & severe weather | blank | Unknown | Pervasive (71-100%) | Unknown | High (Continuing) | Scored for the 10 year horizon but likely to have greater impacts over the long term than what the scores reflect. |
11.1 | Habitat shifting & alteration | blank | blank | blank | blank | blank | blank |
11.2 | Droughts | blank | Unknown | Pervasive (71-100%) | Unknown | High (Continuing) | Long-term drying trends could be catastrophic for turtle populations. Many ponds likely dependent on ground water source. Also, droughts would affect moisture regimes in turtle nests and possibly hatching success. Climate models for Columbia Basin indicate hotter, drier summers and wetter winters, so potential for longer term significant groundwater changes are likely low. Extent, time scale, and probability of droughts over the next 10 years are all uncertain, making scoring severity difficult. There will be more demand for human withdrawal of surface and ground water as climate change proceeds. The effects of droughts are synergistic and cumulative with human activities (scored under separate categories) that change hydrological regimes. |
11.3 | Temperature extremes | blank | Unknown | Large (31-70%) | Unknown | High (Continuing) | Temperature changes can impact incubation and skew sex ratios but probably have a smaller impact than from droughts. This species has a wide global range, and in many areas turtles are regularly experiencing temperatures much higher than in BC. |
11.4 | Storms & flooding | blank | Unknown | Restricted (11-30%) | Unknown | High (Continuing) | Nests can survive a degree of flooding (eggs/hatchlings can survive brief submerging but not for several months). Storms are probably of less significance in the interior than along the coast. |
Appendix 3. Threats assessment for the Western Painted Turtle – Prairie/Western Boreal – Canadian Shield Population.
Threats assessment worksheet
- Species or ecosystem scientific name:
- Chrysemys picta bellii Prairie/Western Boreal Canadian Shield population
- Element ID:
- -
- Elcode:
- -
- Date:
- 1/29/2015
- Assessor(s):
- I. Adams & L-A Isaac (report writers), K. Ovaska (facilitator), B. McBride (COSEWIC Secretariat), J. Bogart, R. Poulin, C. Paszkowski, J. Keith, Patrick Moldowan; some scores were subsequently adjusted based on review by the team and other reviewers over email.
- References:
- Draft COSEWIC status report update (2015)
Threat impact | Threat impact (descriptions) | Level 1 threat impact counts: high range |
Level 1 threat impact counts: low range |
---|---|---|---|
A | Very high | 0 | 0 |
B | High | 0 | 0 |
C | Medium | 0 | 0 |
D | Low | 6 | 6 |
- | Calculated overall threat impact: | Medium | Medium |
- Assigned overall threat impact:
- C = Medium
- Impact adjustment reasons:
- -
- Overall threat comments:
-
Generation time estimated at 15 years, so 45 year horizon was used for severity of impact; very large Canadian distribution from southeast Alberta to east of Lake Superior in Ontario; total population size is likely in tens of thousands; introduced sites (Alberta outside Milk River, near Saskatoon, etc. are NOT taken into consideration for this assessment.
Note: COSEWIC 2016 status report revised the generation time to 30-40 years for this population. It is unlikely that the change would change the assessments, which become increasingly uncertain when projected far into the future.
# | Threat | Impact (calculated) | Impact (description) | Scope (next 10 yrs) | Severity (10 yrs or 3 gen.) | Timing | Comments |
---|---|---|---|---|---|---|---|
1 | Residential & commercial development | D | Low | Small (1-10%) | Serious (31-70%) | High (Continuing) | blank |
1.1 | Housing & urban areas | D | Low | Small (1-10%) | Serious (31-70%) | High (Continuing) | Turtle habitats are mostly in rural areas but also include suburban areas such as Regina, Winnipeg, Brandon, and smaller centres that may be experiencing some sprawl. Canadian Shield portion may have seasonal cottage developments in many areas - Whiteshell, Lake of the Woods, outside Thunder Bay, etc. Cottage development is often on rocky terrain (especially in Ontario) and not often in habitat suitable for turtles. In Saskatchewan, turtles occur mainly in rivers, and there is not much overlap with development. Scope is towards lower end of Small (perhaps just over 1%), especially in the prairies. |
1.2 | Commercial & industrial areas | blank | Negligible | Negligible (<1%) | Extreme (71-100%) | High (Continuing) | blank |
1.3 | Tourism & recreation areas | blank | Negligible | Negligible (<1%) | Moderate (11-30%) | High (Continuing) | Includes campgrounds, lake side resorts, golf courses etc. Most likely impacts are in northwest Ontario and southeast Manitoba; there has been a significant upsurge in resort subdivisions in Saskatchewan in past 5 years, but not necessarily in turtle habitats. Across the DU's range, numbers of new developments are probably low - many are already established. Nobody on call knew of any big new resort developments or proposals in turtle habitats. |
2 | Agriculture & aquaculture | blank | Negligible | Negligible (<1%) | Moderate (11-30%) | High (Continuing) | blank |
2.1 | Annual & perennial non-timber crops | blank | Negligible | Negligible (<1%) | Moderate (11-30%) | High (Continuing) | New conversions to agricultural lands are likely to be low across the range but may be <1% - habitat loss from this source is mostly historical. Not an issue in Canadian Shield other than Rainy River area where new conversion is also likely to be very low. Terrestrial buffers along river courses are always left in Saskatchewan; likelihood of infilling of oxbows is low (and very expensive). |
2.2 | Wood & pulp plantations | blank | blank | blank | blank | blank | blank |
2.3 | Livestock farming & ranching | blank | Negligible | Negligible (<1%) | Slight (1-10%) | High (Continuing) | Exposure of turtle habitats to free-ranging cattle is mostly an issue in Alberta and southwest Saskatchewan, where turtle numbers are relatively low. Scope is towards lower end of Small or is probably Negligible. Turtles occupy rivers in Saskatchewan, and so have little interaction with cattle. Some turtle ponds may be exposed to free-ranging cattle that would have continuing impacts. Impacts are from cattle trampling nests or hatchlings (probably infrequent events) or shoreline vegetation, (fouling of water is scored under pollution), or reducing water levels in ponds through their actions. |
2.4 | Marine & freshwater aquaculture | blank | blank | blank | blank | blank | Freshwater aquaculture for trout is occurring in some areas in the prairies and Alberta; no overlap with turtle habitat in Alberta; not a threat currently. |
3 | Energy production & mining | D | Low | Small (1-10%) | Serious - Moderate (11-70%) | High (Continuing) | blank |
3.1 | Oil & gas drilling | blank | Negligible | Negligible (<1%) | Unknown | High (Continuing) | For 10 year time horizon, there will likely be some oil / gas / fracking activities, especially in southern Saskatchewan (northern Bakken field). Currently, scope is <1%, considering the range of the entire DU. Groundwater implications of fracking are a potentially significant but uncertain threat: impacts on both water quality and quantity need to be better understood (belong under Pollution & Water Management, respectively). Southeast Saskatchewan has oil & gas activity, but operations avoid rivers where turtle are, so interaction is minimal; In Alberta, there is little interaction in the southeast where turtles are (for fish species in that area agriculture is a bigger issue than oil and gas). Most oil & gas development avoids direct disturbance to surface water. |
3.2 | Mining & quarrying | D | Low | Small (1-10%) | Serious - Moderate (11-70%) | High (Continuing) | Scope is towards low end of Small. Most new mines are likely to be in northwest Ontario. Potash mine infrastructure in Saskatchewan may be in an issue (but is far underground). Only 3 potash mines are within the DU's range in Saskatchewan and have very local spoil piles with minimal to no impact upon surface water. Many of the mines, scattered across the prairie portion of the DU, use significant volumes of water from nearby water systems in their operations. Water draw-down associated with increased potash mining, which is typically done using solution mining techniques, might have impacts on turtle habitat. Gravel and borrow pits and potential new mines may be more of an issue. Borrow pits are constructed for forestry roads in Canadian Shield area but are usually away from riparian areas (‘borrow pits’ in Alberta are used by amphibians). Individual mine footprint is very low relative to the large range of this DU, but where mining overlaps turtle habitat, local impacts could be high. A range in severity rating reflects uncertainty of overall impact from various types of activities. |
3.3 | Renewable energy | blank | blank | blank | blank | blank | blank |
4 | Transportation & service corridors | D | Low | Restricted (11-30%) | Slight (1-10%) | High (Continuing) | blank |
4.1 | Roads & railroads | D | Low | Restricted (11-30%) | Slight (1-10%) | High (Continuing) | Includes new roads and mortality from traffic on existing roads (roadkill and nests at roadsides being vulnerable to crushing). Concerns about roadkill in the prairies are limited and local. Gravel roads and cutbanks in NW Ontario may be disproportionately used as nesting habitat, especially where nesting substrates are limited in exposed bedrock areas. Anytime access to nesting habitat is across a road (any road), turtles are at risk. Traffic volumes are lower on many side roads across the range of this DU than in the BC Lower Mainland – hence, the severity is scored lower for this DU. Railway beds have potential to act as movement barrier in some areas. Scope is scored Restricted because many turtle sites are in relatively remote areas away from roads across the large range of this DU. |
4.2 | Utility & service lines | blank | Negligible | Negligible (<1%) | Slight (1-10%) | High (Continuing) | Possibility of new hydro lines. Impacts would be only in the construction phase. |
4.3 | Shipping lanes | blank | blank | blank | blank | blank | blank |
4.4 | Flight paths | blank | blank | blank | blank | blank | blank |
5 | Biological resource use | D | Low | Small (1-10%) | Slight (1-10%) | High (Continuing) | blank |
5.1 | Hunting & collecting terrestrial animals | D | Low | Small (1-10%) | Slight (1-10%) | High (Continuing) | Turtles are regularly taken home as 'pets'. Females may have a higher chance of being collected than males because they are more exposed when on land traveling to nesting areas. In Alberta and Saskatchewan, the vast majority of turtles are in rural rather than urban settings, where collecting for pets is not an issue. This might be more of an issue in Canadian Shield habitats in Manitoba and in Ontario where there are cottages, but less likely a threat in northwest Ontario where many lakes/ponds are very remote. Severity depends on local population size and situation. Removal of one or two turtles from a pond with >100 turtles is unlikely to have an impact but would be high for a small population. |
5.2 | Gathering terrestrial plants | blank | blank | blank | blank | blank | blank |
5.3 | Logging & wood harvesting | D | Low | Small (1-10%) | Slight (1-10%) | High (Continuing) | A fair proportion of turtles are exposed to forestry on the Canadian Shield, particularly northern Ontario, but not much elsewhere. Forestry is a minor concern for this species, provided that good buffer widths are maintained around ponds. If riparian buffers are not maintained, there is potential for local impacts from disruption of movements and barriers to migration (roads associated with forestry are more of an issue). |
5.4 | Fishing & harvesting aquatic resources | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Threats include fishing lures caught in turtles' mouths and causing mortality, but although it undoubtedly occurs (as reported in BC), there are no reports from this DU's range. If may happen occasionally, but impacts on larger populations may not be significant; population effects are unknown. Killing of this species for food is not considered a threat at present. |
6 | Human intrusions & disturbance | D | Low | Restricted - Small (1-30%) | Slight (1-10%) | High (Continuing) | blank |
6.1 | Recreational activities | D | Low | Restricted - Small (1-30%) | Slight (1-10%) | High (Continuing) | Where present, motorized watercraft may disturb basking turtles, and boat wake may impact nesting sites. Exposure is variable across the large range of the DU and may be higher towards east. In Saskatchewan, there is some recreational activity associated with cottage subdivisions at the few lakes within the range of the species, including jet skiing. There is potential direct mortality from collisions with motorized watercraft and boat propellers; however, painted turtles tend to stay in marshy areas & drop to bottom when disturbed and so are not as vulnerable as some other turtles. Non-motorized boats can also disturb turtles and interrupt basking. ATV use can occur but is very localized; it can damage shoreline habitats and nesting grounds. Ranges in scores reflect uncertainty in average scope and severity across the range. |
6.2 | War, civil unrest & military exercises | blank | blank | blank | blank | blank | blank |
6.3 | Work & other activities | blank | blank | blank | blank | blank | blank |
7 | Natural system modifications | D | Low | Small (1-10%) | Moderate - Slight (1-30%) | High (Continuing) | blank |
7.1 | Fire & fire suppression | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Aerial fire retardants thought to impact amphibians, but impacts on reptiles and turtles are uncertain/ unstudied. This is mostly an issue on Canadian Shield. |
7.2 | Dams & water management/use | D | Low | Small (1-10%) | Moderate - Slight (1-30%) | High (Continuing) | Existing dams have likely destroyed some turtle habitat and created it elsewhere. Potential surface water use for fracking. Smaller dams, often built by landowners may cause other issues, including drying up of habitat or creation of new ponds, or altering of hydrological /groundwater regimes. Irrigation that draws either directly from ponds supporting turtles or from groundwater sources that feed these ponds may have an impact. Issue particularly relevant at western end of the range of this DU, where water quantity is a concern, e.g., in southeast Alberta or elsewhere on the prairies (see Environment Canada document on water use across western Canada). |
7.3 | Other ecosystem modifications | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | Scope closer to 1%. Examples of activities that would impact turtles: aquatic & emergent vegetation removal; beach modification in cottage country; removal of basking logs |
8 | Invasive & other problematic species & genes | blank | Unknown | Restricted - Small (1-30%) | Unknown | High (Continuing) | blank |
8.1 | Invasive non-native/alien species | blank | Unknown | Restricted - Small (1-30%) | Unknown | High (Continuing) | Invasive species that are potential threats include Spiny Waterflea in Ontario (not in Alberta - many exotic zooplankton have not made it there yet; probably not in Saskatchewan), Asian & Common Carp, and other invasive aquatic animals are potential threats. More aquatic invasive species are within this DU's range than within the ranges of those DUs in BC. Invasive plants also a concern, both terrestrial plants (in BC, grass roots may entangle /grow through hatchlings) and aquatic plants that alter pond habitats (the latter belongs to Ecosystem Modifications, unless the impacts on turtles are direct). |
8.2 | Problematic native species | blank | Unknown | Restricted - Small (1-30%) | Unknown | High (Continuing) | Extent of predation is not known but is potentially very high at some localities by herons, skunks, and raccoons (not native to all parts of range), mink, otters, etc. It is difficult to separate natural background predation from that resulting from increasing abundance of human commensals. |
8.3 | Introduced genetic material | blank | Negligible | Small (1-10%) | Negligible (<1%) | High (Continuing) | Human-mediated movement of painted turtles is well documented. Thus, there is high potential for genetic mixing, which largely results from released pets of other subspecies of painted turtles. Interbreeding with released sliders is also a possibility. The concern is that interbreeding might lead to genetic swamping. While this may be a problem in small coastal populations in BC, there is no indication that this is an issue for this DU. However, there is no genetic data available for this DU (there is a need for genetic studies to clarify DU structure across this nominal DU). |
9 | Pollution | blank | Unknown | Restricted (11-30%) | Unknown | High (Continuing) | blank |
9.1 | Household sewage & urban waste water | blank | Unknown | Small (1-10%) | Unknown | High (Continuing) | In urban areas (e.g., Wascana Lake, Regina) and more populated rural areas, septic run-off, urban waste water, and fertilizer run-off are a concern (all cottages have septic tanks). Whether septic tank leakages are detrimental to turtles is questionable - high nutrient loads may even improve habitat through eutrophication. Pharmaceuticals, including endocrine disrupting substances, are of more concern, but impacts on turtles are unknown. |
9.2 | Industrial & military effluents | blank | Negligible | Negligible (<1%) | Unknown | High (Continuing) | There is potential for contamination of turtle habitat from mine tailings leaks. Pollution from spills is also possible in urban ponds in the vicinity of industrial activities. Pulp mills also contribute to this category. Potential contamination from fracking and ground water contamination associated with oil & gas operations is also possible. Impacts on turtles are largely unknown. |
9.3 | Agricultural & forestry effluents | blank | Unknown | Restricted (11-30%) | Unknown | High (Continuing) | Agricultural fertilizer and pesticide run-off a concern on prairies and Rainy River district of NW Ontario. There is limited literature on direct effects on painted turtles, but many pesticides are known to harm reptiles (Sparling et al. 2010). Most turtles on prairies are exposed to agricultural run-off at some point in their lives, but exposure levels vary greatly depending on how close they are to the source. Pesticides and herbicides are used in forestry operations. All above may have more serious chemicals than from run-off from urban areas and septic tanks. Of special concern are substances that bio-accumulate. In interior BC, DDT residues continue to be found in almost all lakes; it is unknown what the situation is east of BC, but persistent chemicals are probably present within parts of this DU's range. All pollution categories are flagged as Unknown and require study. |
9.4 | Garbage & solid waste | blank | blank | blank | blank | blank | blank |
9.5 | Air-borne pollutants | blank | blank | blank | blank | blank | blank |
9.6 | Excess energy | blank | blank | blank | blank | blank | blank |
10 | Geological events | blank | blank | blank | blank | blank | blank |
10.1 | Volcanoes | blank | blank | blank | blank | blank | blank |
10.2 | Earthquakes/tsunamis | blank | blank | blank | blank | blank | blank |
10.3 | Avalanches/landslides | blank | blank | blank | blank | blank | blank |
11 | Climate change & severe weather | blank | Unknown | Large (31-70%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Scored for the 10 year horizon but likely to have greater impacts over the long term than what the scores reflect. |
11.1 | Habitat shifting & alteration | blank | blank | blank | blank | blank | blank |
11.2 | Droughts | blank | Unknown | Restricted (11-30%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | A long-term drying trend could be a problem locally for turtles, depending on the wetland and drainage type, as shallow ponds and marshes would diminish in size and persistence. Prolonged summer drought can also dry out substrates at nesting grounds, reducing hatching success. The greatest and most immediate effects are probably in the prairies at the western end of DU's range. Climate change predictions are severe for the part of the range in Alberta, but water may not become limiting on the Canadian Shield, at least over the short term; in Saskatchewan, the turtles tend to be associated with more permanent water, so severity will be less than if they were in more ephemeral water bodies. However, many rivers and oxbows may be dependent on ground water sources. Extent, time scale, and probability of droughts over the next 10 years are all uncertain, making scoring severity difficult. There will be more demand for human withdrawal of surface and ground water as climate change proceeds. The effects of droughts are synergistic and cumulative with human activities (scored under separate categories) that change hydrological regimes. |
11.3 | Temperature extremes | blank | Unknown | Large (31-70%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | Temperature changes can impact incubation and skew sex ratios in turtles; however, this species has a large global range, and already experiences a wide range of temperature regimes across its range. Shifts in timing of seasons may be more important than temperature extremes per se (might impact nesting success of turtles, as well as birds; a concern in the prairies). Increased temperatures might be a benefit by expanding northwards the geographic area where the turtles could reproduce. |
11.4 | Storms & flooding | blank | Unknown | Restricted (11-30%) | Unknown | Moderate (Possibly in the short term, < 10 yrs/3 gen) | More severe thunder storm events are predicted in climate change models for Alberta, which could lead to mechanical damage to nests and habitat. Nests can survive a degree of flooding (eggs/hatchlings can survive brief submerging but not for several months - see notes for Pacific Coast DU). |
Page details
- Date modified:
