Antimicrobial susceptibilities of Neisseria gonorrhoeae in Canada, 2022

Abstract

Background: In Canada, gonorrhea is the second most prevalent sexually transmitted bacterial infection. The Gonococcal Antimicrobial Surveillance Programme-Canada (GASP-Canada), a passive surveillance system monitoring antimicrobial resistance in Neisseria gonorrhoeae in Canada since 1985, is the source for this summary of demographics, antimicrobial resistance and N. gonorrhoeae multi-antigen sequence typing (NG-MAST) of gonococcal isolates collected in Canada in 2022.

Objective: To summarize the antimicrobial resistance trends and molecular types of N. gonorrhoeae cultures in Canada from 2018 to 2022. These trends inform the federal, provincial and territorial guidelines for treatment of gonorrhea.

Methods: Provincial and territorial public health laboratories submitted N. gonorrhoeae cultures and data to the National Microbiology Laboratory in Winnipeg as part of the surveillance system. The antimicrobial resistance and molecular type of each isolate received were determined.

Results: In total, 3,855 N. gonorrhoeae cultures were identified and tested across Canada in 2022, a 12.1% increase since 2021 (n=3,439). Decreased susceptibility to cefixime declined in 2022 (0.3%) compared to 2018 (0.5%). Decreased susceptibility to ceftriaxone also declined between 2018 (0.6%) and 2022 (0.3%). Azithromycin resistance was similar in 2022 (8.1%) to what it was in 2018 (7.6%). In 2022, NG-MAST-17972 (13.3%) was the most prevalent sequence type in Canada.

Conclusion: The spread of antimicrobial-resistant gonorrhea is a significant public health concern. The continued regional and national surveillance of antimicrobial resistance in N. gonorrhoeae is essential in ensuring effective treatment therapies are recommended.

Introduction

In 2022, 35,956 cases of gonorrhea were reported in Canada, making it the second most reported sexually transmitted bacterial infection (STI) in the country. In 2022, the Canadian reported rate of gonorrhea was 92.3 per 100,000 population, which is more than double the 2013 rate of 40.56 per 100,000 population ^{Footnote 1}. Risk factors associated with gonorrhea may include sexual contact with a person who has gonorrhea, unprotected sex, age and a history of sexually transmitted and blood-borne infections ^{Footnote 2}. The causative agent, Neisseria gonorrhoeae, can infect not only the urogenital sites of both males and females, but also the throat, rectum and, if left untreated, blood and synovial fluid. While gonococcal infections are more commonly symptomatic in males, they are often asymptomatic in females, though they can be asymptomatic in both. Pharyngeal and rectal infections are more likely to be asymptomatic in all individuals ^{Footnote 2}. Pelvic inflammatory disease, infertility and disseminated gonococcal infections (DGI) causing arthritis, tenosynovitis and endocarditis are a few of the more serious complications that can arise from untreated gonorrheal infections ^{Footnote 3Footnote 4}.

Globally, the only available empiric treatment is the third-generation cephalosporin, ceftriaxone, used as either a monotherapy or as part of a dual therapy treatment, most often with azithromycin ^{Footnote 3}. Canada’s current treatment regimen recommended by the Public Health Agency of Canada is 250 mg of ceftriaxone intramuscularly or 800 mg of cefixime orally plus 1 g of azithromycin orally ^{Footnote 2}. The spread of ceftrixaone resistance and extremely drug-resistant (XDR-GC) is of concern globally as it threatens treatment.

In 2012, the World Health Organization (WHO) released a Global Action Plan with strategies to minimize the spread and impact of antimicrobial resistant N. gonorrhoeae. One of the suggested strategies is to set up national and international N. gonorrhoeae antimicrobial resistance (AMR) surveillance programmes ^{Footnote 3}. In 2009, WHO relaunched the global Gonococcal Antimicrobial Surveillance Programme (GASP) and the Enhanced GASP (EGASP) is currently expanding into new countries around the globe ^{Footnote 5}.

Since 1985, Canada’s passive national surveillance program, the Gonococcal Antimicrobial Surveillance Program-Canada (GASP-Canada) has been reporting trends of antimicrobial-resistant gonorrhea in Canada to ensure efficacy of current treatments and to inform federal treatment guidelines. Azithromycin resistance (AZI-R) in Canada has surpassed 5%, which is the benchmark suggested by the WHO for review of the use of an antimicrobial as a recommended treatment, and cases of cephalosporin-resistant N. gonorrhoeae were identified in Canada between 2017 and 2021 ^{Footnote 6Footnote 7Footnote 8}.

Isolates submitted to GASP-Canada undergo antimicrobial susceptibility testing (AST) and molecular characterization using N. gonorrhoeae multi-antigen sequence typing (NG-MAST). The NG-MAST typing shows a close association with AMR and can be used to investigate treatment failures and outbreaks due to its high level of discernment ^{Footnote 9Footnote 10Footnote 11}.

This report summarizes the AMR trends and molecular types of N. gonorrhoeae cultures from across Canada that were sent to GASP-Canada between 2018 and 2022. In addition to informing stakeholders from across the country of N. gonorrhoeae AMR trends within their jurisdiction, the data is used to inform treatment guidelines.

Methods

Surveillance

Neisseria gonorrhoeae cultures with resistance or decreased susceptibility to at least one antimicrobial are voluntarily sent to the National Microbiology Laboratory (NML) by provincial and territorial partners as part of GASP-Canada. Provincial and territorial laboratories that do not perform AST send all of their cultures for testing at NML. As of 2018, Alberta, British Columbia and Québec send AST and client data (in the form of minimum inhibitory concentrations [MICs] of isolates not sent to NML for testing and these MICs are included in our analysis. All resistant gonorrhea cultures from Alberta are sent to NML for testing. Québec and British Columbia send isolates to NML that either: 1) are resistant to azithromycin; 2) have decreased susceptibility to cefixime and/or ceftriaxone; or 3) are approaching resistance/decreased susceptibility to these antimicrobials. The AST and client data for the remaining isolates tested in Québec and British Columbia were submitted to NML. Nunavut and Yukon did not report or send any cultures to the NML between 2018 and 2022. The total number of N. gonorrhoeae cultures tested across Canada was used as the denominator in resistance calculations, unless otherwise noted.

Isolate testing

Antimicrobial susceptibility testing using agar dilution (CLSI M100) and/or whole genome sequencing (WGS) methods ^{Footnote 9} was performed on all N. gonorrhoeae cultures received by NML (n=2,544). Minimum inhibitory concentrations for seven antimicrobials were determined and interpretation of results was based on the Clinical and Laboratory Standards Institute for five of them (penicillin, tetracycline and azithromycin all resistant [R] when MIC is at least 2 mg/L; ciprofloxacin R when MIC is at least 1 mg/L; spectinomycin R when MIC is at least 128 mg/L) ^{Footnote 12}. The WHO guidelines were used for ceftriaxone (decreased susceptibility [DS] when MIC is at least 0.125 mg/L) and cefixime (DS when MIC is at least 0.25 mg/L) ^{Footnote 3} (Appendix, Supplemental material Table S1). Testing of ß-lactamase was performed on all submitted cultures. Cultures with tetracycline MICs of at least 16 mg/L were tested for the tetM plasmid by polymerase chain reaction (PCR) ^{Footnote 13} or with whole-genome sequence (WGS) data ^{Footnote 14}.

Multidrug-resistant N. gonorrhoeae (MDR-GC) is defined as a culture with either decreased susceptibility to the cephalosporins or resistance to azithromycin plus resistance to at least two other antimicrobials. Extensively drug-resistant N. gonorrhoeae (XDR-GC) is defined as resistance to azithromycin and decreased susceptibility/resistance to cephalosporins plus resistance to two other antimicrobials.

Genotyping of cultures was determined by NG-MAST using PCR ^{Footnote 11} and/or WGS ^{Footnote 10}. SeqMan Pro 15 (DNAStar, Madison, Wisconsin) was used to assemble strands of Sanger-sequenced DNA and the sequence type (ST) was determined when sequences were submitted to the PubMLST Neisseria spp. database.

Whole-genome sequencing

The DNA from isolates on which WGS was successfully performed (n=2,502) was prepared using the LuminUltra RNA Isolation Kit (LuminUltra, Fredericton, New Brunswick) and the E-Z 96™ Disruptor Plate C Plus (Omega BioTek, Nocross, Georgia). Briefly, the sequencing method used involved creating libraries (using Nextera sample preparation kits [Illumina, San Diego, California]) with 300 bp paired-end index reads generated on the Illumina NextSeq platform (Illumina). Galaxy Version 1.0.4+galaxy was used to assess the quality of the reads, assemble them, and analyze single nucleotide variants with NCCP1145 (GenBank accession number NC_011035) as the mapping reference. Whole-genome sequence data was used to detect molecular AMR markers and to determine NG-MAST STs ^{Footnote 10}.

Data analysis

Age, sex, isolation site, province and date of collection were provided with the N. gonorrhoeae isolates. Duplicate isolates were identified and removed from the denominator if multiple isolates from the same client had the same ST and were collected within four weeks of each other. Once a potential set of duplicates was identified, a hierarchy of isolation sites was used to determine which of the isolates were considered the duplicates. The order of the hierarchy was 1) sterile site (DGI), 2) throat, 3) rectal and 4) urogenital. This hierarchy is based on morbidity of the infection (for DGI) and then the efficacy of treatment at an isolation site, with isolates collected from throat cultures having the lowest treatment efficacy and urogenital isolates having the highest.

Each figure includes the denominator used in its description. Trends of AMR and STs were determined nationally. Azithromycin resistance (AZI-R) and cefixime and ceftriaxone DS (CFM-DS and CRO-DS, respectively) were also analyzed at the provincial or territorial level. Correlation of the most common STs with AMR was also indicated. Comparisons of AMR proportions were made using the Fisher’s exact test, with a 99% confidence interval employing EpiCalc 2000 (version 1.02; Brixton Health).

Results

Isolates tested, demographics and isolation sites

In 2022, N. gonorrhoeae isolates from 3,855 cases (Appendix, Supplemental material Table S2) from across Canada were tested. A provincial and territorial breakdown of the number of cultures collected by jurisdiction is found in Appendix, Supplemental material Table S3. Over 75% (75.5%, n=2,910/3,855) of the cultures were resistant to at least one antibiotic (Figure 1, Appendix, Supplemental material Table S2). Gonorrhea cases that were diagnosed using nucleic acid amplification tests (NAATs) are not included in this calculation. Antimicrobial susceptibility testing is not routinely performed on NAAT specimens, which accounted for 89% of diagnosed and reported gonorrhea cases in Canada in 2021 (Figure 1).

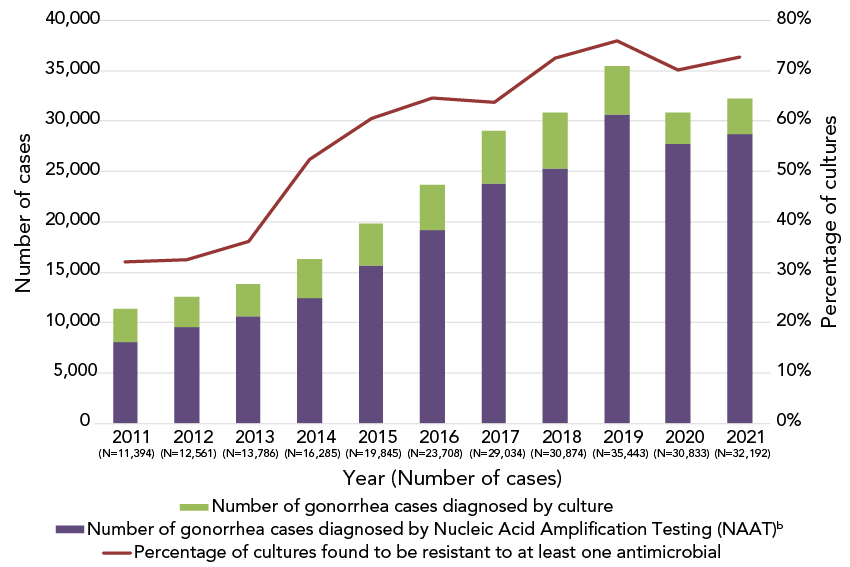

Figure 1: Descriptive text

This figure is a stacked bag graph displaying the number of gonorrhea cases diagnosed using culture techniques and nucleic acid amplification testing, for each year, from 2011 to 2021.

Figure 1

Reports	2011 (N=11,394)	2012 (N=12,561)	2013 (N=13,786)	2014 (N=16,285)	2015 (N=19,845)	2016 (N=23,708)	2017 (N=29,034)	2018 (N=30,874)	2019 (N=35,443)	2020 (N=30,833)	2021 (N=32,192)
Percentage of cultures found to be resistant to at least antimicrobial	32.0%	32.5%	36.1%	52.4%	60.4%	64.6%	63.7%	72.4%	75.9%	70.1%	72.7%
Number of gonorrhea cases diagnosed by culture	3,360	3,036	3,195	3,809	4,190	4,538	5,290	5,607	4,859	3,130	3,439
Number of gonorrhea cases diagnosed by Nucleic Acid Amplification Testing (NAAT)	8,034	9,525	10,591	12,476	15,655	19,170	23,744	25,267	30,584	27,703	28,753

Footnotes

Abbreviation: NAAT, nucleic acid amplification testing

Figure 1 Footnote a

Approximately 10% of all gonorrhea cases were diagnosed by culture in Canada in 2022. The rest was detected using nucleic acid amplification test technology

Return to footnote a referrer

Figure 1 Footnote b

The number of gonorrhea cases diagnosed by nucleic acid amplification testing is determined by subtracting the number of cultures tested across Canada from the number of gonorrhea cases reported. Adopted from: Public Health Agency of Canada. Reported cases from 1924 to 2022 in Canada – Notifiable diseases on-line. Ottawa, ON: PHAC; 2022. https://diseases.canada.ca/notifiable/charts?c=pl

Return to footnote b referrer

In 2022, the NML received data, including age, gender and isolation site for 3,393 cases. The majority of cases 70.9% (n=2,404) were from individuals aged 21–40 years old, with 20.5% (n=694) older than 40 years and 8.5% (n=288) younger than 21 years. Isolates from males dominated (83.7%, n=2,840) with 15.9% (n=540) from females; three (0.08%) were from gender diverse individuals and 10 (0.3%) did not specify. The penis/urethra was the prevalent isolation site among males (58.9%, n=1,673/2,840) and the throat among females (39.1%, n=211/540). See Appendix, Supplemental material Table S4 for more details.

Cephalosporin antimicrobial trends in Canada, 2018–2022

The proportion of CFM-DS (MIC of at least 0.25 mg/L) decreased significantly (p<0.001) from 2.8% in 2020 to 1.5% in 2021 and 0.3% (n=12) in 2022 (Figure 2).

Figure 2: Descriptive text

This figure is a combination of a bar and line graph for the years 2018 to 2022. The bar graph displays the percentage of Neisseria gonorrhoeae isolates with decreased susceptibility to cefixime collected in each province based on the number of cultures tested in each province by year. The line displays the percentage of N. gonorrhoeae isolates with decreased susceptibility to cefixime collected nationally based on the number of cultures tested nationally each year.

Figure 2

Province	2018	2019	2020	2021	2022
Alberta	0.22%	0.22%	1.16%	2.84%	0.29%
British Columbia	2.86%	0.80%	2.45%	6.08%	1.47%
Manitoba	0.00%	0.54%	0.00%	0.00%	0.00%
Ontario	0.40%	3.23%	4.20%	0.94%	0.35%
Québec	0.16%	1.20%	3.50%	0.26%	0.11%
National	0.48%	1.46%	2.77%	1.51%	0.31%

Footnote

Figure 2 Footnote a

Provinces included in this figure are only those that submitted at least one culture that had decreased susceptibility to cefixime to the National Microbiology Laboratory

Return to footnote a referrer

Figure 2 Footnote b

Denominators used for the calculations of the percentages are the number of cultures tested in each province (Appendix, Supplemental material Table S4)

Return to footnote b referrer

Decreased susceptibility to ceftriaxone (MIC of at least 0.125 mg/L) declined, although the decrease between years has not been significant (p>0.001), from 0.9% in 2020 to 0.6% in 2021 and 0.3% (n=11) in 2022 (Figure 3). There were no ceftriaxone-resistant (CRO-R) isolates identified in Canada in 2022.

Figure 3: Descriptive text

This figure is a combination of a bar and line graph for the years 2018 to 2022. The bar graph displays the percentage of Neisseria gonorrhoeae isolates with decreased susceptibility to ceftriaxone collected in each province based on the number of cultures tested in each province by year. The line displays the percentage of N. gonorrhoeae isolates with decreased susceptibility to ceftriaxone collected nationally based on the number of cultures tested nationally each year.

Figure 3

Province	2018	2019	2020	2021	2022
Alberta	0.22%	0.22%	0.15%	0.13%	0.00%
British Columbia	2.45%	0.80%	0.98%	0.91%	0.00%
Manitoba	3.83%	0.54%	0.76%	0.00%	0.00%
Ontario	0.30%	1.13%	1.12%	0.00%	0.58%
Québec	0.21%	1.02%	1.28%	1.09%	0.34%
National	0.55%	0.82%	0.93%	0.61%	0.29%

Footnote

Figure 3 Footnote a

Provinces included in this figure are only those that submitted at least one culture that had decreased susceptibility to ceftriaxone to the National Microbiology Laboratory

Return to footnote a referrer

Figure 3 Footnote b

Denominators used for the calculations of the percentages are the number of cultures tested in each province (Appendix, Supplemental material Table S4)

Return to footnote b referrer

Azithromycin resistance in Canada, 2018–2022

The proportion of AZI-R in 2022 (8.1%, 313/3,855) was similar to that identified in 2018 (7.6%), 2020 (6.1%) and 2021 (7.6%) (Figure 4). The majority of AZI-R isolates across Canada were identified in Québec (77%, n=234/304), however, the highest AZI-R proportion within a jurisdiction was led by New Brunswick (15.4%, 6/39), followed by Québec (13.1%, n=234/1,785). The proportion of isolates within an azithromycin MIC of at least 1 mg/L increased (p<0.001), from 18.2% in 2019 and 15.3% in 2020 to 28.1% and 34.3% in 2021 and 2022, respectively (Figure 5). High-level azithromycin resistance (HL-AZI-R; AZI MIC of at least 512 mg/L) was identified in 11 isolates from 2022, primarily in British Columbia (n=8), with two in Québec and one in Ontario. These isolates were also resistant to ciprofloxacin, with three being resistant to tetracycline as well.

Figure 4: Descriptive text

This figure is a combination of a bar and line graph for the years 2018 to 2022. The bar graph displays the percentage of azithromycin resistant Neisseria gonorrhoeae isolates collected in each province based on the number of cultures tested in each province by year. The line displays the percentage of azithromycin resistant N. gonorrhoeae isolates collected nationally based on the number of cultures tested nationally each year.

Figure 4

Province	2018	2019	2020	2021	2022
Alberta	1.67%	8.25%	1.16%	1.42%	2.01%
British Columbia	6.34%	8.85%	2.45%	1.82%	6.47%
Manitoba	1.09%	3.80%	0.00%	4.17%	3.66%
New Brunswick	18.20%	11.11%	0.00%	12.50%	15.38%
Nova Scotia	6.45%	16.67%	0.00%	0.00%	0.00%
Ontario	7.67%	7.95%	3.60%	3.30%	3.72%
Québec	11.85%	18.47%	12.75%	13.76%	13.11%
Saskatchewan	0.76%	2.50%	0.00%	4.65%	2.08%
National	7.62%	11.67%	6.10%	7.59%	8.12%

Footnote

Figure 4 Footnote a

Provinces included in this figure are only those that submitted at least one culture that was azithromycin-resistant to the National Microbiology Laboratory. Newfoundland and Labrador had one azithromycin-resistant isolate in 2019

Return to footnote a referrer

Figure 4 Footnote b

Denominators used for the calculations of the percentages are the number of cultures tested in each province (Appendix, Supplemental material Table S4)

Return to footnote b referrer

Figure 5: Descriptive text

This figure is a line graph displaying the percentage of all Neisseria gonorrhoeae isolates identified with azithromycin minimum inhibitory concentrations (MICs) of ≥2 mg/L and ≥1 mg/L based on the total number of cultures tested nationally each year, from 2018 to 2022.

Figure 5

Azithromycin minimum inhibitory concentrations (MIC)	2018 (n=5,607)	2019 (n=4,859)	2020 (n=3,130)	2021 (n=3,439)	2022 (n=3,855)
Azithromycin MIC ≥2mg/L	7.6%	11.67%	6.10%	7.59%	7.83%
Azithromycin MIC ≥1mg/L	26.5%	18.17%	15.27%	28.14%	29.52%

Abbreviation: MIC, minimum inhibitory concentration

Resistance trends in other antimicrobials, 2018–2022

Resistance to ciprofloxacin (CIP-R, 51.7%) and tetracycline (TET-R, 54.4%) remained high among N. gonorrhoeae isolates in 2022. Provincially, CIP-R ranged from about 15%–65%; the approximate range for TET-R is 30%–60%. Penicillin resistance (PEN-R) has remained below 7% since 2020 (Figure 6).

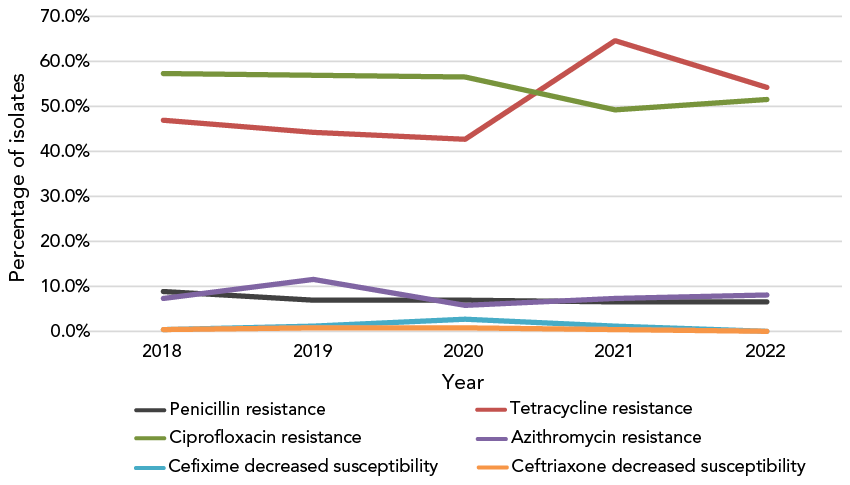

Figure 6: Descriptive text

This figure is a line graph displaying the percentage of all Neisseria gonorrhoeae isolates determined to be penicillin-resistant, tetracycline-resistant, ciprofloxacin-resistant, azithromycin-resistant, cefixime-decreased susceptible and ceftriaxone-decreased susceptible based on the number of isolates tested nationally each year, from 2018 to 2022.

Figure 6

Antibiotic	2018	2019	2020	2021	2022
Penicillin resistance	9.2%	7.14%	6.97%	6.56%	6.55%
Tetracycline resistance	47.1%	44.21%	42.99%	64.64%	54.39%
Ciprofloxacin resistance	57.3%	56.95%	56.45%	49.37%	51.70%
Azithromycin resistance	7.6%	11.67%	6.10%	7.59%	7.83%
Cefixime decreased susceptibility	0.5%	1.46%	2.77%	1.51%	0.31%
Ceftriaxone decreased susceptibility	0.6%	0.82%	0.93%	0.61%	0.29%

Footnote

Figure 6 Footnote a

Percentages are based on the total number of isolates tested nationally: 2018, n=5,607; 2019, n=4,859; 2020, n=3,130; 2021, n=3,439; 2022, n=3,855

Return to footnote a referrer

Figure 6 Footnote b

Due to some provinces not testing all seven antimicrobials from 2018 to 2022, penicillin denominators were 3,883, 3,822, 2,409, 2,334 and 3,329, respectively. In 2020, 2021 and 2022, tetracycline denominators were 2,409, 2,334 and 3,328, respectively

Return to footnote b referrer

Multidrug-resistant (MDR-GC) and extensively drug-resistant (XDR-GC) gonococci in Canada, 2018–2022

The proportion of MDR-GC cultures identified in 2022 (8.2%) was comparable to that found in 2021 (7.8%) and 2018 (8.0%). In 2019, there was a spike in MDR-GCs (12.4%) followed by a drop in 2020 (6.3%) (Appendix, Supplemental material Figure S1). One XDR-GC culture was identified in Canada in 2022 (0.03%), similar to the last three years (2019: 0.02%, n=1; 2020: 0.06%, n=2; and 2021: n=0) but a decrease from the number of XDR-GCs was identified in Canada in 2018 (0.12%, n=7). (Appendix, Supplemental material Figure S2, Table S5).

Neisseria gonorrhoeae multi-antigen sequence typing trends in Canada

In 2022, 2,530 of the 2,544 cultures submitted were successfully typed for NG-MAST. The most frequently detected NG-MAST sequence type in Canada was ST-17972 (n=338), followed by ST-19875 (n=320) (Figure 7). All ST-17972 isolates were resistant to CIP and TET. Azithromycin resistance was identified in two of the isolates. Azithromycin resistance was higher in ST-19875 isolates (9.1%, n=29/320), although most were only TET-R (89.4%, n=286/320). No CFM-DS or CRO-DS were identified within these two STs.

Figure 7: Descriptive text

This figure is a stacked bar graph displaying the number of Neisseria gonorrhoeae isolates identified with assorted antimicrobial resistance (AMR) profiles by N. gonorrhoeae multi-antigen sequence type (NG-MAST), 2022.

Figure 7

NG-MAST	ERY-R and/or TET-R and/or PEN-R	CIP-R with or without resistance to other antibiotics that are not included in above categories	CFM-DS and/or CRO-DS with resistance to other antimicrobials	AZI-R/ERY-R & AZI-R/CIP-R/ERY-R with resistance to other antimicrobials	Susceptible	Total
ST-17972	0	336	0	2	0	338
ST-19875	286	1	0	28	5	320
ST-11461	51	107	0	1	5	164
ST-11477	0	97	0	0	0	97
ST-19887	73	0	0	17	4	94
ST-20336	0	80	0	2	0	82
ST-19792	0	60	0	4	0	64
ST-17375	0	60	0	0	0	60
ST-21020	57	0	0	6	0	63
ST-18293	25	0	0	2	3	30
ST-14994	0	41	0	0	0	41
ST-21023	0	32	0	12	0	44
ST-20311	0	3	0	40	0	43
ST-16065	5	9	0	0	13	27
ST-19762	0	25	1	3	0	29
ST-1856	23	0	0	3	1	27
ST-15246	1	0	0	25	0	26
ST-17629	0	4	0	21	0	25
ST-19758	0	15	3	0	0	18
ST-19873	21	1	0	0	2	24
ST-20737	0	24	0	0	0	24
ST-3935	1	1	0	19	0	21
ST-8890	17	0	0	0	0	17
ST-4186	1	0	0	0	15	16

Footnote

Abbreviations: AZI-R, azithromycin-resistant; CFM-DS, cefixime decreased susceptibility; CIP-R, ciprofloxacin-resistant; CRO-DS, ceftriaxone decreased susceptibility

Figure 7 Footnote a

Figure does not include 14 isolates that were non-typeable. This graph represents 1,694 isolates. The remaining 836 isolates are dispersed among 391 sequence types containing 1–15 isolates each

Return to footnote a referrer

Figure 7 Footnote b

Other antimicrobials include ciprofloxacin, erythromycin (isolates with agar dilution results), penicillin and tetracycline

Return to footnote b referrer

Both ST-17972 and ST-19875 have quickly spread across Canada since they were first detected in 2019 and in 2020, respectively (Appendix, Supplemental material Figure S3). Four of the most prevalent STs in Figure 7 have strong associations with AZI-R, with all ST-15246 being resistant in 2022 (n=25/25), as well as 93.0% (n=40/43) of ST-20311, 90.5% (n=19/21) of ST-3935 and 84.0% (n=21/25) of ST-17629. The STs of the HL-AZI-R isolates are ST-20927 (n=7), ST-20904 (n=3) and ST-22036 (n=1). The primary NG-MAST of CFM-DS isolates was ST-19758 (25.0%, n=3/12). ST-19836 was the prevalent NG-MAST of CRO-DS isolates (27.3%, n=3/11).

Discussion

The number of cases of gonorrhea reported in Canada in 2022 (n=35,956) increased compared to 2018 (n=30,874) ^{Footnote 1}. Unfortunately, the proportion of cases diagnosed by culture, as opposed to by NAAT, has decreased every year since 2011, when 30% of cases had cultures for testing. Since 2020, only 10% of reported cases included cultures for AST, which means that the AMR of all N. gonorrhoeae circulating in Canada is determined from fewer isolates.

Based on the cultures tested in 2022, the proportion of resistant N. gonorrhoeae identified in Canada continues to increase. The high level of resistance is primarily attributable to TET and CIP. Decreased susceptibility to the currently recommended treatment antimicrobials (CFM and CRO) has dropped to the lowest levels identified in over five years. Decreased susceptibility to CFM was identified in only four provinces in 2022, and for CRO, in only two provinces. Unlike 2021, no cephalosporin-resistant isolates were identified, with CRO and CFM MICs exceeding 0.125 mg/L and 0.25 mg/L, respectively.

Azithromycin resistance, however, has remained high. In the last seven years, the level of AZI-R in Canada has exceeded the 5% threshold set by WHO ^{Footnote 3} for reviewing current treatment therapies, although provincially, rates of resistance have varied. The 11 HL-AZI-R isolates identified in 2022 represent the largest number of such isolates identified in one year in Canada, with five or less isolated per year in the last 10 years.

Like Canada, Australia also identified the highest number of HL-AZI-R N. gonorrhoeae per annum in 2022. Unlike Canada, however, their AZI-R proportion was 3.9% and has been stable since 2019. Their 2022 CRO-DS proportion was a little higher than Canada, at 0.51%, which includes eight CRO-R isolates. The majority of Australia recommends dual treatment therapy of CRO and AZI ^{Footnote 15}.

In Europe, 11% of N. gonorrhoeae isolates were identified with AZI MICs greater than 1 mg/L in 2020, 0.5% of isolates had cefixime MICs greater than 0.125 mg/L and one CRO-R isolate was identified ^{Footnote 16}. England saw an increase in decreased susceptibility to AZI (MICs greater than 0.5 mg/L), from 4.7% in 2016 to 8.7% in 2020, which led to a change in recommended therapy from CRO and AZI dual therapy to 1 g of CRO monotherapy in 2019. The increased CRO dosage (500 mg –1g) in the new recommended treatment may be responsible for the decrease in CRO-DS (MIC greater than 0.03 mg/L), from 7.1% in 2018 to 1.4% in 2020. Cefixime resistance has remained low at 0.6% ^{Footnote 17}.

The two highly related HL-AZI-R STs were first and primarily identified in British Columbia, but were also found in Ontario and Québec later in the year, possibly suggesting travel-associated spread. Other new and diverse STs may be formed when non-AZI-R N. gonorrhoeae obtain the mutations necessary to become AZI-R due to the pressure exerted by AZI being used to treat either gonorrhea or other infections.

Limitations

Policies for culturing suspected gonorrhea infections differ between regions and NML receives isolates and associated data from provinces and territories at their discretion. Interpretation of results is limited not only by the number of the cultures tested but by the source of the cultures, as bias may be introduced based on the risk group of the client.

The GASP-Canada does not receive information on risk factors, sexual orientation or sexual behaviour, among other epidemiological data that are associated with the clients from whom the cultures are collected. To try and address this limitation, the ESAG was established in 2014, with six provinces and territories now submitting their enhanced epidemiological and treatment data for gonorrhea cases. This information is then paired with the GASP-Canada culture AST data to more fully examine which treatments are being used and how that relates to trends in N. gonorrhoeae AMR ^{Footnote 18}.

The large proportion of NAATs used to diagnose gonorrhea are not included when calculating resistance rate in Canada. This may cause a geographical bias, as many rural regions do not have the capacity to culture gonorrhea.

Conclusion

Gonorrheal infections, left untreated or failing treatment, can lead to infertility, pelvic inflammatory disease and DGI, which can include dermatitis, arthritis and, in rare cases, endocarditis, meningitis or osteomyelitis ^{Footnote 19Footnote 20}.

Due to the ability of N. gonorrhoeae to develop antimicrobial resistance, resolving gonorrheal infections is becoming increasingly difficult. Combination therapy of CRO or CFM plus AZI has been the recommended treatment for gonorrhea infections in Canada since 2011 ^{Footnote 21Footnote 22} in response to the increase in decreased susceptibility to cephalosporins ^{Footnote 20}. At the time of writing this paper, given the persistent AZI-R rate detected in some provinces, the nationally recommended gonorrhea therapies are under review.

Sustained surveillance of AMR trends in N. gonorrhoeae informs national treatment guidelines to ensure the most effective therapies are recommended. Additionally, the use of NG-MAST molecular typing allows for tracking of the spread of AMR across the country. AMR threats can be addressed by public health authorities when detected by ongoing surveillance.

Authors' statement

• PS — Formal analysis, validation, investigation, data curation, visualization, writing–original draft, review & editing
• RT — Validation, visualization, writing–review & editing
• NB — investigation, data curation, writing–review & editing
• BL — Resources, methodology, writing–review & editing
• MD — Resources, methodology, writing–review & editing
• LH — Resources, methodology, writing–review & editing
• SP — Resources, methodology, writing–review & editing
• PVC — Resources, methodology, writing–review & editing
• JM — Resources, methodology, writing–review & editing
• GD — Resources, methodology, writing–review & editing
• DH — Resources, methodology, writing–review & editing
• XD — Resources, methodology, writing–review & editing
• LL — Resources, methodology, writing–review & editing
• GG — Resources, methodology, writing–review & editing
• IM — Conceptualization, validation, methodology, supervision, project administration, writing–review & editing

Competing interests

None.

ORCID numbers

• Robyn Thorington — 0000-0002-7077-7099
• Norman Barairo — 0009-0000-4260-5225
• Irene Martin — 0000-0002-3941-5583

Acknowledgements

We thank G Liu from the Streptococcus and Sexually Transmitted Diseases Section at National Microbiology Laboratory for his laboratory assistance. We thank the staff of provincial and public health laboratories in Canada for their participation in this national laboratory surveillance program.

Funding

This project was supported by internal funding from the Public Health Agency of Canada.

Appendix

Supplemental material is available upon request to the author: robyn.thorington@phac-aspc.gc.ca
