Envelopes, Large White (flag symbol)

These technical specifications (T-223) set out the requirements for large white envelopes, for departments identified by the flag symbol signature and the Canada Wordmark. Consult your Federal Identity Program coordinator for more information.

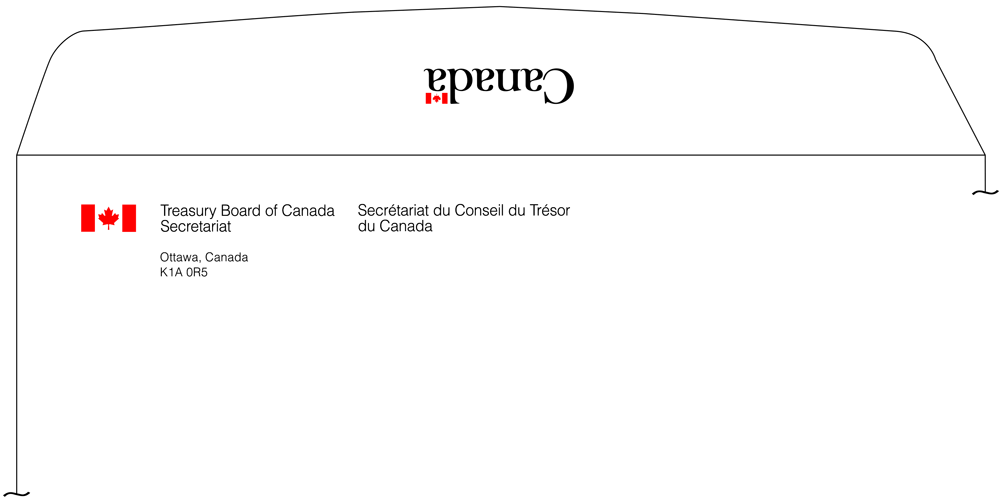

Figure T-223: Illustration of the arrangement of the flag symbol signature and the Canada Wordmark on a large white envelope.

Illustration of the arrangement of the flag symbol signature and the Canada Wordmark on a large white envelope.

Requirements

  1. Paper
    • Reproduction method: offset printing or letterpress
    • Envelope size: various
    • Colour/grade: white bond
    • Brightness: 92% (95% ISO brightness)
    • Weight: 75–90 g/m2 (20–24 lb.)
  2. Symbols
    • Signature typeface: Helvetica Light
    • Signature type size: 10 or 12 point
    • Canada Wordmark: 40 or 45 mm wide
    • Ink colours: all text is black (Process Black) and flag symbols are red (Pantone 032)
  3. Return address (use is optional)
    • Signature typeface: Helvetica Light
    • Type size: 2 points smaller than signature type size
    • Position: directly under the text of the signature and separated by one line space
  4. Layout
    • The signature is in the upper left corner of the front of the envelope.
    • The top of the flag symbol is 13 mm from the top edge.
    • The signature text starts 38 mm from the left.
    • The Canada Wordmark is centred on the envelope flap, facing right-side up when folded.
