Envelopes, Small White (Ministers)

These technical specifications (T-282) set out the requirements for departments producing invitation or small white envelopes for Ministers and their offices. Consult your Federal Identity Program coordinator for more information.

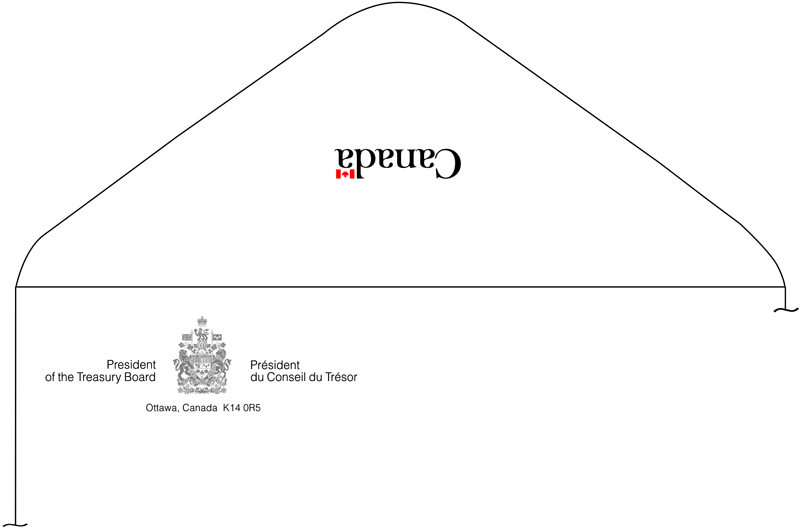

Figure T-282: Illustration of the arrangement of a symmetrical Arms of Canada signature and the Canada Wordmark on a small white envelope.

Illustration of the arrangement of a symmetrical Arms of Canada signature and the Canada Wordmark on a small white envelope.

Requirements

  1. Paper
    • Reproduction method: offset printing or letterpress
    • Envelope size: various
    • Colour/grade: white bond
    • Brightness: 92% (95% ISO brightness)
    • Weight: 75–90 g/m2 (20–24 lb.)
  2. Symbols
    • Signature typeface: Helvetica Light
    • Signature type size: 7 or 8 point
    • Canada Wordmark: 23 mm wide
    • Ink colours:
      • all text is black (Process Black) and flag symbol is red (Pantone 032) for ministers;
      • text is black (Process Black) and flag symbol is black (Process Black) for offices of ministers;
      • Arms of Canada is 40% screen of black using 150 line screen
  3. Return address (use is optional)
    • Signature typeface: Helvetica Light
    • Type size: 2 points smaller than signature type size
    • Position: directly under the text of the signature and separated by one line space
  4. Layout
    • The signature is in the upper left corner of the front of the envelope.
    • The top of the Arms of Canada symbol is 6 mm from the top edge.
    • The text of the signature is 6 mm from the left edge.
    • The Canada Wordmark is centred on the envelope flap, facing right-side up when folded.

Related information


Note: If there is a discrepancy between an official Treasury Board policy instrument and information on this Web page, the Treasury Board policy or standard prevails.
