Bacterial Diseases in Canada
Volume 42-4, April 7, 2016: Vaccine-Preventable Diseases
Invasive bacterial diseases in Northern Canada, 2006–2013
Li YA1*, Martin I2, Tsang R2, Squires SG1, Demczuk W2, Desai S1
1 Infectious Disease Prevention and Control Branch, Public Health Agency of Canada, Ottawa, ON
2 National Microbiology Laboratory, Public Health Agency of Canada, Winnipeg, MB
Li YA, Martin I, Tsang R, Squires SG, Demczuk W, Desai S. Invasive bacterial diseases in Northern Canada, 2006–2013. Can Comm Dis Rep 2016;42:74-80. https://doi.org/10.14745/ccdr.v42i04a01
Background: Northern populations are known to be at a higher risk of developing invasive bacterial diseases (IBDs) compared with the rest of Canada. Since the last published study that described IBDs in Northern Canada, a number of vaccines against some bacterial pathogens have been introduced into the routine childhood immunization schedule.
Objective: To describe the epidemiology of IBDs in Northern Canada from 2006 to 2013 and compare their incidences in the North to the rest of Canada.
Methods: Data for 5 IBDs (invasive pneumococcal disease [IPD], invasive Haemophilus influenzae disease [Hi], invasive Group A streptococcal disease [iGAS], invasive meningococcal disease [IMD] and invasive Group B streptococcal disease [GBS]) were extracted from the International Circumpolar Surveillance (ICS) program and the Canadian Notifiable Diseases Surveillance System. Incidence rates were calculated per 100,000 population per year.
Results: During the study period, the incidence rates of IPD ranged from 16.84–30.97, iGAS 2.70–17.06, Hi serotype b 0–2.78, Hi non-b type 2.73–8.53, and IMD 0–3.47 per 100,000 population. Except for IMD and GBS, the age-standardized incidence rates of other diseases in Northern Canada were 2.6–10 times higher than in the rest of Canada. Over the study period, rates decreased for IPD (p = 0.04), and iGAS (p = 0.01), and increased for Hi type a (Hia) [p = 0.004]. Among IPD cases, the proportion of pneumococcal conjugate vaccine (PCV7) serotypes decreased (p = 0.0004) over the study period. Among Hi cases, 69.8% were Hia and 71.6% of these were in children under than 5 years. Of 13 IMD cases, 8 were serogroup B and 2 of them died. In Northern Canada, the incidence of IPD, iGAS and Hi was 2.6 to 10 times higher than the rest of Canada.
Conclusion: Northern populations in Canada, especially infants and seniors among First Nations and Inuit, are at higher risk of IPD, Hi and iGAS than the rest of Canada. Hia is the predominant serotype in Northern Canada.
Established in 1999, the International Circumpolar Surveillance (ICS) program is a population-based infectious disease surveillance network of circumpolar countries including United States, Canada, Greenland, Iceland, Norway, Sweden, Finland and Russia Footnote 1. In Canada, Northern regions (Yukon, Northwest Territories, Nunavut, Labrador, and Quebec Cree and Nunavik) and a network of laboratories, including three reference laboratories (the National Centre for Streptococcus [NCS] (1999–2009), the Laboratoire de santé publique du Québec [LSPQ], and the National Microbiology Laboratory [NML]) participate in the ICS program. ICS has been monitoring invasive disease caused by Streptococcus pneumoniae (invasive pneumococcal disease, IPD) since 1999 and invasive diseases caused by Streptococcus pyogenes (invasive Group A streptococcal disease, iGAS), Streptococcus agalactiae (Group B streptococcal disease, GBS), Haemophilus influenzae (Hi) and Neisseria meningitidis (invasive meningococcal disease, IMD) since 2000.
The demography of Northern Canada differs from the rest of the country. In 2013, the population of Northern Canada was estimated to be 155,666, about 0.4% of the Canadian population. However, the proportion of self-identified Indigenous people (First Nations, Métis or Inuit) was approximately 60% compared to about 4% in Canada overall. Northern populations, and especially Indigenous people, have higher rates of invasive bacterial diseases (IBDs) compared with the rest of Canada Footnote 2Footnote 3Footnote 4Footnote 5Footnote 6.
The last published study describing IBDs in Northern Canada included data from 1999 to 2005 Footnote 5. Since then, a number of vaccines against some bacterial pathogens have been introduced into the routine childhood immunization schedule. In Canada, the National Advisory Committee on Immunization (NACI) recommends vaccines and their schedules, but the implementation of vaccine programs varies among provinces and territories. For IPD, routine infant vaccine programs for 7‑valent pneumococcal conjugate vaccine (PCV7) began in 2002 and were fully implemented across Northern Canada by January 2006 Footnote 7. The IPD vaccine programs began replacing PVC7 with 10-valent pneumococcal conjugate vaccine (PCV10) in 2010. By January 2011, all six regions were using 13-valent pneumococcal conjugate vaccine (PCV13) in their infant IPD vaccine programs. The 23-valent pneumococcal polysaccharide vaccine (PPV23) is used for targeted populations such as people aged 65 years and over and those at risk for IPD Footnote 8. Routine infant vaccine programs for Hi type b have been implemented since 1997 Footnote 8. For IMD, routine infant vaccine programs of meningococcal C conjugate vaccine (MenC) Footnote 9 have been implemented in all six regions as of 2007.
The objective of this report is to describe the epidemiology of IBDs in Northern Canada from 2006 to 2013 and compare their incidences in the North to the rest of Canada.
Surveillance data for Northern Canada and the rest of the country were extracted from ICS and the Canadian Notifiable Diseases Surveillance System (CNDSS), respectively, with disease onset between January 1, 2006 and December 31, 2013. Only cases that met the national case definitions Footnote 10 were included. ICS regional coordinators complete disease‑specific Bacterial Disease Surveillance Forms (BDSFs) for cases that meet the national case definitions Footnote 10 and then collate and review laboratory information. Data included within the BDSF include non‑nominal demographic information, clinical information, outcomes, risk factors and immunization history. Completed BDSFs and laboratory reports are sent to the Public Health Agency of Canada using a secure process. CNDSS receives aggregated data containing basic non-nominal demographic information from provinces and territories annually.
Invasive isolates were submitted to NML, NCS (2006–2009) or LSPQ for characterization. Serotyping of S. pneumoniae using the Quellung reaction was performed using commercial pool, group, type and factor antisera from SSI Diagnostica, Statens Serum Institut, Copenhagen, Denmark Footnote 11Footnote 12. The emm sequence types for iGAS isolates were determined using the methodology recommended by the United States Centers for Disease Control and Prevention (CDC) Footnote 13. GBS serotypes were determined using commercial latex-agglutinating antisera from SSI Diagnostica Footnote 11Footnote 12. Serotyping of H. influenzae was accomplished using bacterial agglutination test with antisera from Difco Laboratories (BD Diagnostics, Falcon Lakes, New Jersey, USA), and the results were confirmed by polymerase chain reaction (PCR) Footnote 14. Non-typeable strains of Hi were confirmed by 16S ribosomal RNA sequencing Footnote 15. Serogrouping of N. meningitidis was performed using bacterial agglutination methods Footnote 16. All reference laboratories participate in an ongoing ICS quality control program Footnote 17.
General population estimates were obtained from Statistics Canada Footnote 18. Because Statistics Canada only provides Indigenous population estimates for 2006 and 2011 census years, aggregated Indigenous (First Nations, Métis or Inuit) population estimates in this report were obtained from territorial/regional statistics departments. Indigenous population estimates for Labrador and Quebec Cree could only be estimated based on 2006 and 2011 census data. Population estimates of separate Indigenous groups were not available for this report. The 1991 Canadian population was chosen as the standard population for age standardization. The population distribution is based on the final post-Census estimates for July 1, 1991, Canadian population, adjusted for census undercoverage. The age distribution of the population has been weighted and normalized Footnote 19.
Data used in this report came from public health surveillance and were exempt from research ethics board approval.
The demographic data, serotype distributions, as well as clinical characteristics, and immunization status of the IBD cases were examined. Incidence rates for GBS of the newborn were not calculated since annual live births estimates of Northern regions were not available for this report. All incidence rates were per 100,000 population per year. Direct method was used for calculating age-standardized rates. Confidence intervals (CIs) of age-standardized rates were calculated with the method based on the gamma distribution Footnote 20. Cases with missing age were excluded from age standardization. The Chi-squared test and Fisher’s exact test were used to compare proportions. Poisson regression was used to compare incidence rates and estimate disease trends. Statistical significance was considered at the 95% confidence level. Descriptive and inferential analyses were conducted using Microsoft Excel 2010 and SAS EG 5.1.
From 2006 to 2013, the total number of confirmed cases reported in Northern Canada was 270 IPD, 110 iGAS, 109 Hi, 13 IMD and 8 GBS of the newborn. The demographic information for cases of each disease is noted in Table 1. A total of 46 IBD related deaths were reported.
|Disease (total number)||Median age, years (range)Table 1 - Footnote 1||SexTable 1 - Footnote 2 (male/female)||Number of cases (%)|
|EthnicityTable 1 - Footnote 3|
|IPD (N=270)||39 (0–92)||142/127||114 (46)||94 (38)||3 (1)||36 (15)|
|iGAS (N=110)||41 (0–90)||61/49||50 (48)||44 (42)||0||11 (10)|
|Hi (N=109)||1 (0–80)||59/50||28 (11)||74 (72)||0||1 (1)|
|IMD (N=13)||0 (0–56)||5/8||4 (31)||6 (46)||0||3 (23)|
|GBS (N=8)||0 (0–88)||5/3||3 (38)||4 (50)||0||1 (12)|
Table 2 shows the annual crude incidence rates of the diseases in Northern regions as well as the age-standardized rates for both Northern regions and the rest of Canada. Except for IMD, age-standardized incidence rates of IPD, iGAS and Hi were significantly higher in Northern regions.
|Disease||Crude incidence rates||Age-standardized incidence rates (95% CI)|
|Northern regionsTable 2 - Footnote 2||Rest of CanadaTable 2 - Footnote 2|
|IPD||18.73||30.97||23.20||30.42||20.66||22.96||16.84||17.35||23.59 (20.72–26.80)||8.68 (8.57–8.79)|
|iGAS||12.49||9.63||17.06||2.70||8.00||7.87||9.07||7.07||10.86 (8.83–13.26)||4.20 (4.12–4.28)|
|Hib||2.78||0.69||2.05||0.68||0.00||0.66||0.65||0.64||0.89 (0.45–1.71)||0.09 (0.08–0.10)|
|Hi non-bTable 2 - Footnote 3||7.63||6.88||2.73||6.76||11.33||8.53||7.77||10.92||8.13 (6.26–10.48)Table 2 - Footnote 4||0.95 (0.89–1.01)Table 2 - Footnote 4|
|IMD||3.47||0||0.68||0.68||0.67||1.31||1.30||0.64||0.87 (0.46–1.63)||0.55 (0.52–0.58)|
Invasive pneumococcal disease (IPD)
The age-standardized incidence rate (per 100,000 population) of IPD decreased significantly over the report period (p = 0.04) [data not shown]. The age-standardized incidence rates were similar for males (23.55, CI: 19.65–28.10) and females (23.40, CI: 19.31–28.22). The annual incidence rate (per 100,000 population) was highest for infants less than 1 year old (132.68, CI: 88.96–190.55), children aged 1 to 4 years (49.53, CI: 35.70–66.96) and adults 60 years and older (47.85, CI: 35.84–62.59). The average annual incidence rate was 29.51 (range: 22.13–37.12) for those of Indigenous origin and 7.57 (range: 3.18–13.23) for those of non-Indigenous origin, and this difference was significant (p < 0.0001) (Figure 1).

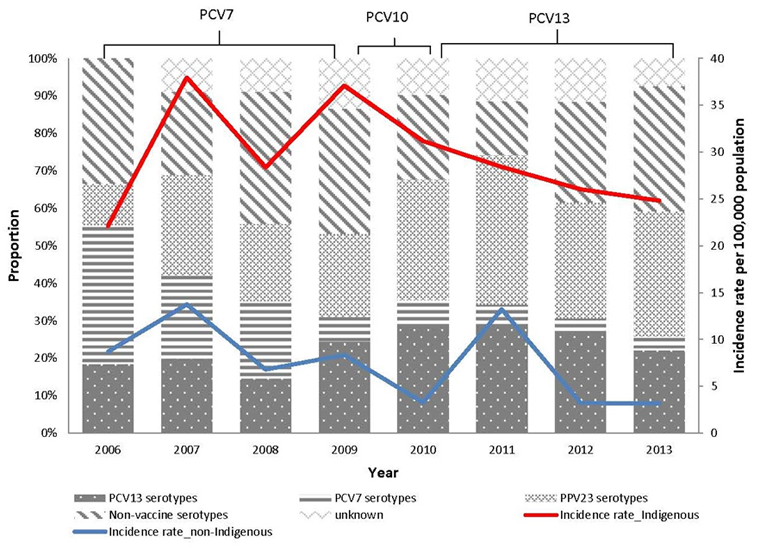

Figure 1 also shows that the proportional distributions of IPD serotypes have changed over the years. The proportion of PCV7 serotypes decreased significantly from 37% (n=10) in 2006 to 4% (n=1) [p = 0.0004] in 2013. There have been no cases of PCV7 serotypes under 2 years of age since 2009. Of the cases in this group, the proportion of the additional PCV13 serotypes was 26% before 2011 and 21% after 2011 and the change was not significant (p = 0.49). From 2006 to 2013, the most common serotypes were 8 (13.9%), 7F and 19A (6.6% each), 12F (6.0%), and 3, 14, 22F (5.4% each). After 2010, the most common serotypes were 7F (16.5%), 10A (11.4%), 19A, 22F and 33F (7.6% each), and 11A (5.1%).
Of the 44 cases who had been vaccinated with PCV7, the 2 who had PCV7 serotypes were not fully vaccinated at the time of illness. All of the 6 cases who had been vaccinated with PCV10 had non-PVC10 serotypes. Of the 13 cases who had been vaccinated with PCV13, only one had a PCV13 serotype and that case had not been fully vaccinated, i.e., had not received all 4 doses. Of the 70 cases that had PPV23, 20 (29%) were infected with non-vaccine serotype and 5 (7%) with unknown serotype.
In total, 87.4% (n=236) of IPD cases were hospitalized. The most common clinical syndromes (Table 3) were pneumonia (68.2%), septicemia/bacteremia (50.4%) and meningitis (7.4%). The overall case-fatality ratio (CFR) was 11.0% (n=28). The majority of the fatal cases were individuals aged 40 and 59 years (46.4%, n=13) and 60 years and older (35.7%, n=10). Individuals in these two age groups with IPD had significantly higher risk for death (CFR=18.1%) than those in younger age groups (CFR=3.9%, p = 0.0003). The fatality ratio did not vary between cases in Indigenous and non-Indigenous people (p = 0.78). Among 26 fatal cases with serotype information, the majority were PPV23 serotypes (46.2%, serotypes are not included in PCV13) and non-vaccine serotypes (34.6%).
|Manifestation and outcome||Number of cases (%)|
|IPDTable 3 - Footnote 2 (n=258)||iGAS (n=106)||Hi (n=102)||IMDTable 3 - Footnote 3 (n=13)||GBSTable 3 - Footnote 3 (n=8)|
|Septicemia/Bacteremia||130 (51.2)||42 (40.8)||36 (38.3)||4||6|
|Meningitis||19 (7.5)||0||24 (25.5)||8||2|
|Pneumonia||176 (69.3)||17 (16.5)||41 (43.6)||2||2|
|Empyema||7 (2.8)||7 (6.8)||2 (2.1)||0||0|
|Septic arthritis||4 (1.6)||11 (10.7)||11 (11.7)||1||0|
|Necrotizing fasciitis||0||10 (9.7)||0||0||0|
|Cellulitis||0||33 (32.0)||6 (6.4)||0||0|
|DeathTable 3 - Footnote 4||28 (11.0)||8 (7.8)||8 (8.5)||2 (15.4)||0|
Invasive Group A streptococcal disease (iGAS)
The age-standardized annual incidence rate of iGAS decreased significantly (p = 0.01) over the report period. Of 110 iGAS cases, 61 were male and 49 female. The age-standardized incidence rates (per 100,000 population) were similar for males (11.86, CI: 8.94–15.51) and females (9.72, CI: 7.07–13.14). The annual incidence rate (per 100,000 population) was the highest for infants under 1 year of age (41.18, CI: 18.83–78.17) and adults aged 60 years and older (47.85, CI: 35.84–62.59), and children aged 1 to 4 years (11.79, CI: 5.66–21.69). The annual incidence rate ranged between 2.25 and 20.44 for Indigenous peoples and between 0 and 6.80 for non-Indigenous people, and the rate was significantly higher for Indigenous peoples (p < 0.0001).
Isolates of 74 iGAS cases were emm typed, and the most common types were emm59 (10.8%), emm1 and emm91 (9.5% each) and emm41 (6.8%). Nighty-two percent (n=101) of cases were hospitalized. As shown in Table 3, the most common manifestations were septicemia/bacteremia (39.6%) and cellulitis (31.1%). Pneumonia (16%), septic arthritis (10.4%), necrotizing fasciitis (9.4%) and empyema (6.6%) were also commonly seen. The overall CFR was 7.8% (n=8) and all fatal cases (except 1 with unknown ethnicity) were in Indigenous peoples. The emm types of the fatal cases were all different.
Invasive Haemophilus influenzae disease (Hi)
Overall, there were no significant changes in the age-standardized annual incidence rates of Haemophilus influenzae type b (Hib) (p = 0.18) or Hi non-b (p = 0.15) from 2006 to 2013. Except for 6 cases with missing ethnicity and 1 non-Indigenous case, all the other 102 cases were First Nations and Inuit people. Of the 12 Hib cases, 10 were under 18 months of age; 4 had completed their primary vaccine series, 5 had received the vaccine but were not up-to-date and 1 was not vaccinated.

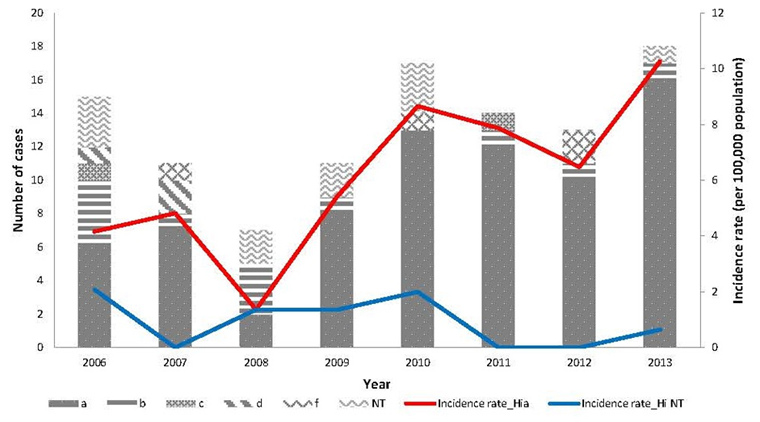

Figure 2 shows the serotype distribution of Hi cases. During the study period, Hi type a (Hia) accounted for 69.8% of the cases, followed by Hib (11.3%) and Hi non-typeable (10.4%). No serotype e cases were reported. The annual incidence rate (per 100,000 population) of Hia increased significantly (p = 0.004) from 2006 to 2013. Fifty-three (71.6%) of Hia cases were in children under than 5 years. The incidence rate of Hia was the highest for infants less than 1 year (132.68, CI: 88.86–190.55), followed by children aged 1 to 4 years (28.31, CI: 18.14–42.12).
In total, 87.5% (n=91) of Hi cases were hospitalized. The most common manifestations (Table 3) were pneumonia (38.7%), septicemia/bacteremia (34.0%), meningitis (22.6%), and septic arthritis (10.4%). The overall CFR was 8.5% (n=8) and all fatal cases were of Hia.
Invasive meningococcal disease (IMD)
Of 13 IMD cases, 8 were serogroup B (all under 5 years of age), 2 were C (both between 40 and 59 years) and 3 were W (all under 10 years of age). In terms of manifestation, 4 cases had meningitis only, 4 had meningitis with septicemia/bacteremia or other conditions, 2 had septicemia/bacteremia only (Table 3). Two cases died; both had serogroup B.
Invasive Group B streptococcal disease (GBS) of the newborn
Of 8 cases of GBS of the newborn, 6 were early onset and 2 were late onset. The serotyping information was available for only 3 cases, 1 serotype Ia and 2 serotype III. Septicemia/bacteremia was the most common manifestation (n=6), followed by meningitis (n=2) and pneumonia (n=2) (Table 3). No deaths were reported.
In Northern Canada, the incidence of IPD, iGAS and Hi was 2.6 to 10 times higher than in the rest of Canada, especially among First Nations and Inuit people. These findings are consistent with previous Canadian and international circumpolar studies Footnote 3Footnote 4Footnote 5Footnote 6Footnote 21Footnote 22Footnote 23.
IPD accounted for half of the IBDs cases during the study period and continues to be a substantial cause of morbidity in Northern Canada, especially for infants and people aged 60 years and greater. The risk of death did not vary between Indigenous and non-Indigenous peoples.
Routine PCV7 vaccination of infants started in 2002 in some Northern regions and IPD incidence has reduced since then Footnote 5Footnote 6. This report demonstrates a further reduction and sustained decreasing trend in PCV7 serotype-caused IPD as well as the total incidence of IPD. The incidence of IPD caused by PCV13 has not changed. More longitudinal data are needed for further assessment of PCV13. The efficacy and effectiveness of PPV23, which differs from conjugated vaccines, are relatively lower Footnote 24Footnote 25Footnote 26 and the protection of PPV23 appears to wane after 5 years Footnote 27. It is not surprising to see cases in individuals who had been immunized.
Routine Hib vaccine programs have been implemented in Canada since 1997 Footnote 8 and Hib is now rare in the country. However, it is still a concern in Northern Canada with a substantially higher rate among Indigenous infants. Some studies suggested that poor health, environmental and housing conditions of Indigenous children may be potential risk factors Footnote 28Footnote 29Footnote 30Footnote 31. Hia has been a predominant serotype in Northern Canada since the beginning of ICS Footnote 5Footnote 22Footnote 32 whereas non‑typeable Hi and type f are more common in other circumpolar regions Footnote 32. This report also demonstrates the significant increasing trend of Hia. National data of Hi non-b types are aggregated into a single category, so the serotype specific trends and distributions of Northern Canada and the rest of the country cannot be compared.
IMD is generally rare in Northern Canada as well as the rest of the country Footnote 33. Since the implementation of childhood immunization programs for MenC, the incidence of meningococcal C is at an all‑time low and meningococcal B is the predominant serotype in Canada Footnote 33. None of the cases reported during the study period could have been prevented by the vaccine programs at the time.
The incidence of iGAS increased between 1999 and 2005 Footnote 5Footnote 32 but decreased between 2006 and 2013. This change in trend should be interpreted with caution due to the small number of cases. The most common emm types were emm1, emm59 and emm91, similar to the distribution reported between 1999 and 2005 Footnote 5 and the rest of Canada Footnote 34 but different than that of other circumpolar regions such as Alaska where emm3, emm41 and emm12 were more common Footnote 5Footnote 32.
Due to the lack of live birth population data and extremely small number of cases of GBS of the newborn, it is difficult to compare the disease epidemiology between Northern Canada and the rest of Canada or other countries.
It is important to consider the limitations when interpreting the data in this report. The disease characteristics, e.g., serotyping, outcomes and immunization history, could be underestimated or overestimated due to missing data. The analyses of GBS and IMD were limited due to the extremely small case numbers and the lack of live birth population data. Due to the instability of results based on the small number of cases and small population sizes, caution should be used when interpreting results. Finally, further detailed analysis of Inuit, First Nations and Métis individuals was not possible due to small numbers and the lack of availability of population estimates of these individual groups in the ICS region.
Compared to the rest of Canada, data indicate that Northern Canada has higher incidence rates of IPD, Hi and iGAS, especially among infants and seniors. First Nations and Inuit groups are more vulnerable to the diseases than non-Indigenous people. Enhanced national surveillance of IBDs is needed to better understand the disease disparities between Northern Canada and the rest of the country. In Canada, ICS is the only surveillance system that captures both epidemiological and laboratory data on IBDs for Northern populations. Ongoing surveillance will contribute to the understanding of disease epidemiology, which will ultimately assist in the formulation of prevention and control strategies, including immunization recommendations, for Northern populations.
We would like to thank all members of the Canadian International Circumpolar Surveillance Invasive Bacterial Diseases Working Group, particularly A. Mullen, B. Lefebvre, C. Cash, C. Foster, G. Tyrrell, H. Hannah, J. Proulx, K. Dehghani, Y. Jafari, for their invaluable contribution to the ICS surveillance and to this report. We would also like to thank J. Cunliff and M. St‑Jean for database management and N. Abboud for project management.
Conflict of interest
Funding for Canada’s participation in International Circumpolar Surveillance was paid for by the Public Health Agency of Canada.
