The epidemiology of cryptosporidiosis in Ontario, Canada following the introduction of PCR testing in 2018

Karen Johnson1, Palvasha Thayani2, Bryna Warshawsky1,3, Yvonne Whitfield1, Jennifer Pritchard1, Michelle Murti1,4


1 Public Health Ontario, Toronto, ON

2 School of Public Health and Health Systems, University of Waterloo, Waterloo, ON

3 Schulich School of Medicine & Dentistry, Western University, London, ON

4 Dalla Lana School of Public Health, University of Toronto, Toronto, ON


Suggested citation

Johnson KO, Thayani P, Warshawsky B, Whitfield Y, Pritchard J, Murti M. The epidemiology of cryptosporidiosis in Ontario, Canada following the introduction of PCR testing in 2018. Can Commun Dis Rep 2020;46(7/8):227–30.

Keywords: Cryptosporidium, cryptosporidiosis, surveillance, PCR, polymerase chain reaction, epidemiology, outbreak detection


Background: Cryptosporidiosis is reportable in Ontario, Canada. Detection by polymerase chain reaction (PCR) was introduced by a large community-based laboratory in August 2017, and in 2018, the incidence of reported cryptosporidiosis doubled compared to 2012–2016.

Methods: We assessed cases reported in 2018 for epidemiologic changes since the introduction of PCR testing.

Results: No outbreaks were identified in 2018, and 48% of cases were detected by PCR, suggesting that the observed increase was likely the result of PCR’s higher sensitivity compared with previous detection method. From the pre to post-PCR periods, the proportion of female cases increased significantly, due mainly to cases diagnosed by PCR. A significant increase in mean age was also observed among cases diagnosed by microscopy and/or PCR in the post-PCR period.

Conclusion: Our findings highlight the importance of assessing diagnostic methods when evaluating changes in reported rates. The observed changes in incidence will require ongoing monitoring and may require shorter baseline periods for aberration detection.


Cryptosporidiosis is a diarrheal disease transmitted through fecal–oral contact with infected persons or animals. Although the mode of transmission varies, infection is most acquired through ingestion of drinking or recreational water that has been contaminated with Cryptosporidium oocystsFootnote 1. Cryptosporidiosis is traditionally diagnosed by microscopic examination of stool specimens and/or enzyme immunoassays for detection of antigens to Cryptosporidium spp. However, molecular methods including polymerase chain reaction (PCR) are increasingly usedFootnote 2Footnote 3. In Ontario, Canada, hospital laboratories, the provincial public health laboratory and privately operated community laboratories conduct diagnostic testing for cryptosporidiosis. Privately operated community laboratories diagnose the majority of cases reported. All laboratory-confirmed cases of cryptosporidiosis are reportable in OntarioFootnote 4, and reported cases are followed up by local boards of health that collect and report case information centrally to provincial public health officials through the integrated Public Health Information System (iPHIS).

Microscopy has been the main method of detection for cryptosporidiosis in Ontario. In August 2017, a large community-based laboratory with collection centres across the province adopted multiplex PCR testingFootnote 5. Recent studies have shown the sensitivity of microscopy to range from 52% to 56% compared to PCR, which has a sensitivity of 100%Footnote 6Footnote 7.

In this article, we describe our investigation of an increase in reported cryptosporidiosis cases in 2018 with the aim of assessing the magnitude of the increase, determining the role of PCR testing in the increase and identifying if any shifts had occurred in the epidemiology of cryptosporidiosis since the implementation of PCR testing.


We conducted this assessment by comparing demographic, risk factor and outcome data from iPHIS for 2018 (the first full year following implementation of PCR testing) with the pre-PCR period of 2012–2016.

We extracted information on age, sex, outcome (hospitalization or death), reported symptoms, reporting laboratory (i.e. community based, hospital or public health) and method of diagnosis [i.e. PCR, microscopy, enzyme immunoassay (EIA) and culture-bacterial] from iPHIS for cryptosporidiosis cases with episode dates from January 1, 2012 to December 31, 2016 (pre-PCR) and from January 1 to December 31, 2018 (post-PCR).

Cases with no diagnostic data, cases diagnosed by PCR in the pre-PCR period and cases that had “culture-bacterial” (which reflect data entry errors) as the method of detection were excluded from all analyses except for overall case counts and rates. Social or behavioural risk factors, including history of travel outside the province, foodborne and waterborne exposures, and animal and person-to-person contact, for cases with episode dates in 2018, were also analyzed to determine whether there were any previously unrecognized outbreaks. All analyses were performed using the statistical package SAS Enterprise Guide version 7.1 (p<0.05 considered statistically significant).


Reported cases of cryptosporidiosis increased annually from 299 in 2012 to 429 in 2016, decreased to 391 in 2017 and then increased to 751 in 2018 (Figure 1). The annual rate of cryptosporidiosis in Ontario was 2.6 per 100,000 from 2012 to 2016 and 5.2 per 100,000 in 2018 (p<0.001). Based on 1,743 cases in the more detailed analysis, detection by PCR accounted for 48% of cryptosporidiosis cases reported in 2018, while detection by microscopy decreased from 99.8% in 2012–2016 to 52% in 2018 (p<0.001); EIA was the method of detection for three cases reported during the pre-PCR period (0.2%).

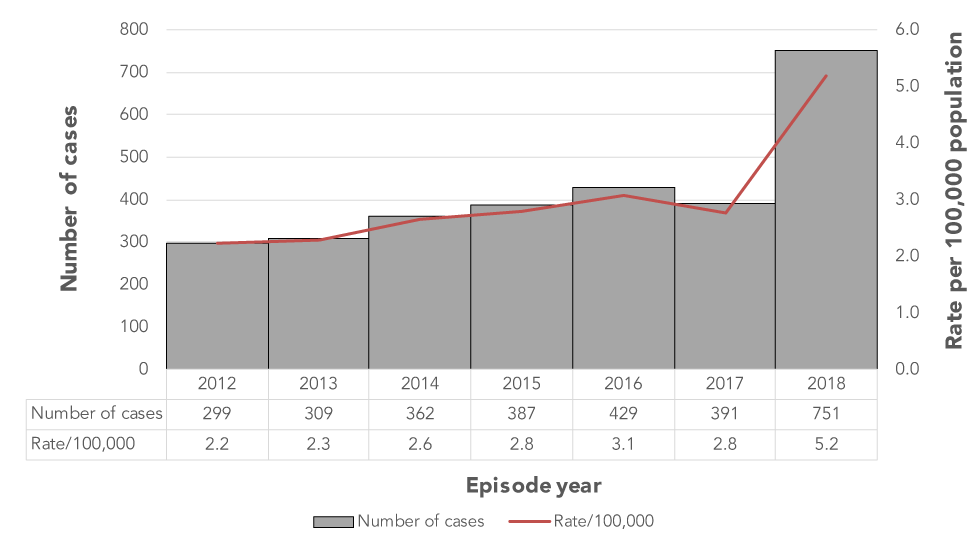

Figure 1: Number and incidence rate for all confirmed cases of cryptosporidiosis reported, Ontario, Canada, 2012–2018 (n=2,928)Figure 1 footnote a

Figure 1: Number and incidence rate for all confirmed cases of cryptosporidiosis reported, Ontario, Canada, 2012–2018 (n=2,928)

Text description: Figure 1

Figure 1: Number and incidence rate for all confirmed cases of cryptosporidiosis reported, Ontario, Canada, 2012–2018 (n=2,928)Figure 1 footnote a

The graph shows the number and rate per 100,000 cases of laboratory-confirmed cryptosporidiosis cases reported in Ontario from 2012 to 2018. The number of cases and annual incidence rate increased gradually from 2012 to 2016, with case counts ranging from 299 in 2012 to 429 in 2016. Annual incidence rates over this period ranged from 2.2 cases per 100,000 population in 2012 to 3.1 cases per 100,000 population in 2016. The number of reported cases decreased in 2017 to 391 cases or 2.8 cases per 100,000 population before increasing significantly in 2018 to 751 cases or 5.2 cases per 100,000 population.

Statistically significant overall and sex-specific increases in mean ages were also observed; the increases in the post-PCR period occurred among cases diagnosed by microscopy and by PCR (Table 1). Overall, the proportion of cases among females increased from 48.5% in the pre-PCR period to 55.4% in the post-PCR period (p<0.009). Stratification of the post-PCR period showed that this shift in proportion from the pre-PCR period was driven by cases diagnosed by PCR (60.8% in the post-PCR period, p<0.001) as the proportion of female cases diagnosed by microscopy in the post-PCR period (50.4%) did not vary significantly from the pre-PCR period (48.5%, p<0.580) (Table 1).

Table 1: Cryptosporidiosis cases reported during the pre-PCR period (2012–2016) compared to cases reported in 2018, overall and stratified by diagnostic method (n=1,743) Footnote a of Table 1
Case characteristics Pre-PCR period (2012–2016) Post-PCR period (2018)Footnote b of Table 1
Microscopy (n=1,209) and EIA (n=3) PCR Microscopy Microscopy and PCR
n=255 p valueFootnote c of Table 1 n=276 p valueFootnote c of Table 1 n=531 p valueFootnote c of Table 1
Diagnosed (%) Microscopy (99.8%), EIA (0.2%) 48.0% 52% 100%
Mean age (years)
Female 23.3 27.3 <0.005 28.4 <0.001 27.8 <0.001
Male 20.9 26.4 <0.002 24.9 <0.011 25.5 <0.001
TotalFootnote d of Table 1 22.1 26.9 <0.001 26.6 <0.001 26.8 <0.001
Sex, n (%)Footnote d of Table 1
Female 588 (48.5) 155 (60.8) <0.001 139 (50.4) <0.580 294 (55.4) <0.009
Male 620 (51.2) 100 (39.2) <0.001 136 (49.3) <0.573 236 (44.4) <0.010
Hospitalized, n (%) 67 (5.5) 4 (1.6) <0.008 7 (2.5) <0.040 11 (2.1) <0.001
Symptom statusFootnote e of Table 1
Asymptomatic, n (%) 9 (0.8) 5 (2.2) <0.084 3 (1.3) <0.461 8 (1.7) <0.129

From the pre to the post-PCR period, the proportion of hospitalized cases decreased from 5.5% to 2.1% (p<0.002). No deaths were recorded in either time period. Method of testing was not related to symptom status, although the proportion of asymptomatic cases was slightly higher among those diagnosed by PCR (2.2%) and microscopy (1.3%) in the post-PCR period relative to the pre-PCR period (0.8%).

Based on the assessed risk factors, no commonalities were reported at the provincial level that suggested the occurrence of any outbreaks among non-travel cases in 2018, or within the health units that had identified localized increases above their usual summer peak in incidence.


Our investigation identified a two-fold increase in the incidence of cryptosporidiosis cases in 2018, the first full year after the introduction of PCR testing in August 2017, compared to the pre-PCR period of 2012–2016. However, it remains unclear why the number of cases reported in 2017 decreased despite the introduction of PCR in that year and a gradually increasing trend in the previous five years. As only positive laboratory results are reportable in Ontario, we were not able to assess if the increase in 2018 was due to an increase in the number of cases, an increase in the number of tests ordered or an increase in positivity owing to PCR’s higher sensitivity compared with previous detection method. Our investigation of the increase in 2018 also did not identify any common social and behavioural risk factors among domestic cases that were indicative of an outbreak. During the period of increase, clinical indications for testing and surveillance criteria for defining and reporting cases did not change, nor did healthcare providers have the option to specify their preferred diagnostic method (e.g. microscopy, EIA or PCR) when ordering tests. Given these factors, it is possible that the increase in 2018 resulted, at least partially, from PCR’s higher sensitivity, which resulted in the detection of cases that would have otherwise remained undiagnosed by microscopy or EIA.

With the increase in the reported rate of cryptosporidiosis, there was also an increase in the proportion of female cases in 2018, driven by PCR diagnoses. One possible hypothesis is that the baseline test positivity rate for females was lower compared to males and subsequently more affected by the higher sensitivity of PCR testing. In contrast, the increase in mean age among cases diagnosed by both PCR and microscopy in 2018 may reflect an underlying shift in the age distribution of persons tested in 2018 compared to 2012–2016. We would require data on the age and sex of persons that submitted specimens for testing, testing volumes and positivity rates to fully assess these changes in the demographics of cryptosporidiosis cases.

The shift towards fewer hospitalized and more asymptomatic cases after the introduction of PCR testing reflects PCR’s higher sensitivity and use in community laboratories that test non-hospitalized patients. Similar trends among microscopy-detected cases were also observed, suggesting that factors other than the introduction of PCR testing may have influenced the shifts in hospital and symptom status in 2018. However, given the small proportions of cases overall that were hospitalized or asymptomatic, caution must be exercised in drawing conclusions from these limited post-PCR data.

Our investigation demonstrated that the traditional approach to examining incidence over time for trends and outbreak detection must be coupled with a review of other data elements such as diagnostic methods and risk factor information, which can indicate whether increases are artifacts, due to increases in sporadic cases or attributable to a specific source. We anticipate that the adoption of PCR testing for diagnosing cryptosporidiosis will occur at different times by the various diagnostic laboratories in Ontario, resulting in staggered increases in incidence. These changes will require continuous reassessment of baseline values for accurate interpretation of trends for aberration detection and timely outbreak detection. With time, we expect the emergence of a more stable and long-standing baseline at a higher incidence rate due to the more widespread use of PCR. As our investigation reflects one year of PCR testing, analysis of additional years of data is required to understand the clinical and public health relevance of cases detected by this method.

Authors’ statement

  • KJ — Data analysis, Writing – review & editing
  • PT — Data analysis, Writing – review & editing
  • BW — Data review, Writing – review & editing
  • YW — Data review, Writing – review & editing
  • JP — Project administration, Writing – review & editing
  • MM — Writing – original draft, Writing – review & editing

Competing interests



This work was supported by Public Health Ontario.


We thank L. Friedman from Public Health Ontario for providing copy editing and reference management.
