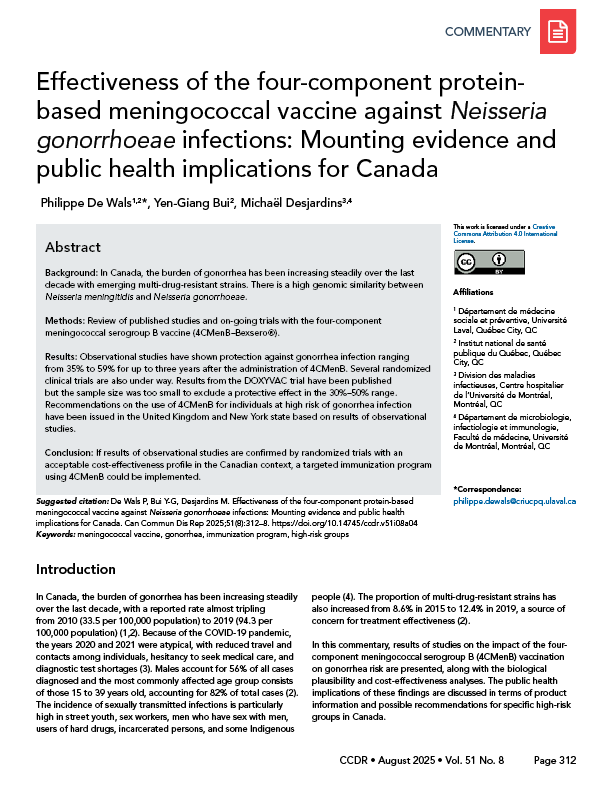

Effectiveness of the four-component protein-based meningococcal vaccine against Neisseria gonorrhoeae

Abstract

Background: In Canada, the burden of gonorrhea has been increasing steadily over the last decade with emerging multi-drug-resistant strains. There is a high genomic similarity between Neisseria meningitidis and Neisseria gonorrhoeae.

Methods: Review of published studies and on-going trials with the four-component meningococcal serogroup B vaccine (4CMenB–Bexsero®).

Results: Observational studies have shown protection against gonorrhea infection ranging from 35% to 59% for up to three years after the administration of 4CMenB. Several randomized clinical trials are also under way. Results from the DOXYVAC trial have been published but the sample size was too small to exclude a protective effect in the 30%–50% range. Recommendations on the use of 4CMenB for individuals at high risk of gonorrhea infection have been issued in the United Kingdom and New York state based on results of observational studies.

Conclusion: If results of observational studies are confirmed by randomized trials with an acceptable cost-effectiveness profile in the Canadian context, a targeted immunization program using 4CMenB could be implemented.

Introduction

In Canada, the burden of gonorrhea has been increasing steadily over the last decade, with a reported rate almost tripling from 2010 (33.5 per 100,000 population) to 2019 (94.3 per 100,000 population) ^{Footnote 1Footnote 2}. Because of the COVID-19 pandemic, the years 2020 and 2021 were atypical, with reduced travel and contacts among individuals, hesitancy to seek medical care, and diagnostic test shortages ^{Footnote 3}. Males account for 56% of all cases diagnosed and the most commonly affected age group consists of those 15 to 39 years old, accounting for 82% of total cases ^{Footnote 2}. The incidence of sexually transmitted infections is particularly high in street youth, sex workers, men who have sex with men, users of hard drugs, incarcerated persons, and some Indigenous people ^{Footnote 4}. The proportion of multi-drug-resistant strains has also increased from 8.6% in 2015 to 12.4% in 2019, a source of concern for treatment effectiveness ^{Footnote 2}.

In this commentary, results of studies on the impact of the four-component meningococcal serogroup B (4CMenB) vaccination on gonorrhea risk are presented, along with the biological plausibility and cost-effectiveness analyses. The public health implications of these findings are discussed in terms of product information and possible recommendations for specific high-risk groups in Canada.

Methods

A review was performed of published observational studies and on-going trials on the protein-based 4CMenB (Bexsero®, Glaxo-Smith-Kline) aiming to protect against Neisseria gonorrhoeae infection and disease. A PubMed search was performed on October 5, 2023, using the following combination of terms: (meningococcal vaccine OR 4CMenB) AND gonorrhea. A total of 121 hits was obtained. Titles and abstracts were reviewed using inclusion and exclusion criteria. Inclusion criteria were quantitative studies in humans aiming to evaluate the effect of vaccination on the occurrence of N. gonorrhoeae infection by comparing 4CMenB vaccination with a control group. An exclusion criterion was any ecological study design using before-after comparisons without ascertainment of the immunization status of each individual. When several manuscripts described results of a same study, the latest analysis was selected. A similar search was performed in Google Scholar, PubMed and Clinicaltrial.gov and results were completed by information provided by the 4CMenB manufacturer.

Results

Epidemiological studies

In 2009, a mass immunization campaign was implemented in the Saguenay–Lac-Saint-Jean region of Québec to control an increase of serogroup B invasive meningococcal disease using 4CMenB. The vaccination campaign reached 86% of the target population aged six months to 20 years, with most receiving two doses ^{Footnote 5}. Following the mass campaign, an unexpected decrease in the number of gonococcal infections among persons aged ≤20 years was observed in the region ^{Footnote 6}. Such a decrease was not seen among adults aged >20 years, and there was also a clear continuing upward trend in the number of Chlamydia trachomatis infections in all age groups. The review identified five other observational studies on this issue and results described in Table 1 support the hypothesis of a cross-protection against gonorrhea generated by 4CMenB in the 35% to 59% range for up to three years after vaccination ^{Footnote 7Footnote 8Footnote 9Footnote 10Footnote 11}.

Clinical trials

As shown in Table 2, five randomized clinical trials (RCTs) aiming to demonstrate the efficacy of 4CMenB in preventing gonorrhea in different high-risk groups are underway and one has been completed ^{Footnote 12}. In the DOXYVAC trial in France, the incidence of a first episode of gonorrhea (main outcome) was 58.3 per 100 person-years (103 events in 274 participants) in the 4CMenB vaccine group and 77.1 per 100 person-years (122 events in 270 participants) in the no vaccine group (adjusted hazard ratio=0.78 (95% CI: 0.60%–1.01%) ^{Footnote 13}. When the analysis was restricted to participants not receiving doxycycline post-exposure prophylaxis to exclude any interference between the two interventions, the incidence was 76.0 per 100 person-years (40 events in 93 participants) in the 4CMenB vaccine group and 105.3 per 100 person-years (48 events in 90 participants) in the no vaccine group (adjusted hazard ratio=0.76 (95% CI: 0.50%–1.15%). Because this trial was underpowered from the outset and prematurely terminated, a vaccine protection in the 30%–50% range cannot be excluded. Research is also underway to develop a specific N. gonorrhoeae vaccine that could induce high-level protection of long duration ^{Footnote 14}. It could, however, take many years to have an N. gonorrhoeae vaccine authorized and commercialized in Canada.

Discussion

Biological plausibility

The 4CMenB vaccine that was licensed in Canada in 2014 contains four components: the outer membrane vesicle (OMV) from the NZ98/254 strain, a factor H binding protein (fHbp), neisserial heparin-binding antigen (NHBA), and the Neisseria adhesin A (NadA) with the accessory proteins GNA2091 and GNA1030 fused with fHbp and NHBA, respectively, to increase their immunogenicity ^{Footnote 15}. Results of DNA hybridization analyses have shown that N. meningitidis and N. gonorrhoeae share close to 90% of their genomic identity ^{Footnote 16}. The nucleotide and amino acid sequences of collections of N. gonorrhoeae strains were analyzed and compared with antigens included in 4CMenB and their encoding genes. The NHBA-2 peptide in 4CMenB showed moderate sequence identity (73%) to its gonococcal homolog, which is highly conserved within N. gonorrhoeae and predicted to be surface expressed ^{Footnote 17}. The gene encoding NadA is absent in N. gonorrhoeae ^{Footnote 18}. Although N. gonorrhoeae lacks fHbp, it encodes a distinct homolog, Ghfp, which is not expressed on the bacterial surface ^{Footnote 19}. Bioinformatic analyses have found that a homolog of 20 of the 22 major OMV proteins on the 4CMenB vaccine are present in N. gonorrhoeae 16 proteins having >90% identity, and 2 proteins having >80% identity ^{Footnote 20}. In mice, 4CMenB was found to elicit antibodies that bind to the surface of N. gonorrhoeae in vitro and promote serum bactericidal activity and opsonophagocytic killing activity using human polymorphonuclear leukocytes ^{Footnote 21}. In humans, 4CMenB elicited bactericidal immunoglobulin G (IgG) antibodies to N. gonorrhoeae conformational epitopes involving Hep I and Hep II glycosylated lipo-oligosaccharide structures shared between N. meningitidis and N. gonorrhoeae ^{Footnote 22}.

The evidence drawn from these observational studies meets seven of the causality criteria proposed by Austin Bradford Hill ^{Footnote 23}: i) strength of the association (a large and statistically significant effect size); ii) consistency (reproducibility of results in different studies); iii) specificity of effect (protection against gonorrhea and not against other sexually transmitted infections as shown in a study in Australia) ^{Footnote 24}; iv) temporality (the effect occurs after vaccination); v) biological gradient (effect of one vs two vaccine doses); vi) plausible biological mechanisms and coherence between epidemiological and laboratory findings (discussed in the above section); and vii) analogy (protection was also observed with another OMV meningococcal vaccine in New Zealand) ^{Footnote 25}. Evidence from RCTs is the eighth causality criteria and the most convincing one ^{Footnote 21}. There were many limitations in the only trial which results have been published and we will have to wait for results of other on-going trials to make a final judgement ^{Footnote 13}.

Cost-effectiveness evaluations

To investigate the potential public health impact of adolescent 4CMenB vaccination in England, a deterministic transmission-dynamic model of N. gonorrhoeae infection among heterosexual 13 to 64 year-olds was developed assuming 31% vaccine efficacy, a six-year span of protection, and 85% uptake, resulting in the prevention of 25% (95% credibility interval: 17%–33%) of heterosexual infections over 70 years ^{Footnote 26}. No cost-effectiveness evaluation was made in this analysis. In another integrated transmission-dynamic health economic model from England, strategies targeting high-risk groups only were evaluated, including vaccination on attendance for testing in sexual health clinics; vaccination on diagnosis with gonorrhea; or vaccination according to risk offered to patients diagnosed with gonorrhea plus individuals who test negative but report having more than five sexual partners per year ^{Footnote 27}. Results showed that vaccination on attendance would have the fastest and largest impact but at high cost, vaccination on diagnosis would be highly cost-effective but with a much lesser impact, whereas vaccination according to risk would have a similar impact to vaccination on attendance at a fraction of the cost and would likely be cost saving from a health services perspective at the current National Health Services costs (£8 per dose plus £10 for administration). This model was applied to test the targeted vaccination of men who have sex with men in England with one or two 4CMenB doses ^{Footnote 28}. Results indicated that both one- or two-dose strategies would be cost-saving at any uptake level and for a vaccine unit price of £8 per dose plus £10 for its administration.

Public health implications

In the United Kingdom, the Joint Committee on Vaccination and Immunization (JCVI) has recommended the implementation of a 4CMenB immunization program, the vaccine being offered on an opportunistic basis through specialized sexual health services that have vast experience in assessment and identification of those at increased risk of gonococcal infection ^{Footnote 29}. In the United States, the New York State Department of Health AIDS Institute recommends offering 4CMenB vaccination to patients at high risk of gonorrhea infection (i.e., men who have sex with men and other individuals who have had a bacterial sexually transmitted infection in the prior 12 months, commercial sex workers, and individuals engaging in condomless sex with multiple partners) ^{Footnote 30}.

Conclusion

A plausible effectiveness of 4CMenB against N. gonorrhoeae infections is not mentioned in the latest version of Canadian product monograph and a new submission by the manufacturer would have to be made to add this indication ^{Footnote 15}. This hypothesis is briefly mentioned in a recent National Advisory Committee on Immunization statement on meningococcal disease published in the Canada Communicable Disease Report (CCDR) in September 2023, and more details on scientific evidence could be easily incorporated into a revision of the Canadian Immunization Guide ^{Footnote 31}. The next step would be a careful evaluation of the integration of 4CMenB into publicly funded provincial/territorial immunization programs for high-risk groups, including the scientific evidence, expected health benefits, budgetary impact, cost-effectiveness, feasibility and acceptability of different vaccination strategies. It is always difficult to extrapolate the country-specific results of economic evaluations and it would thus be interesting to develop a Canadian model or to adapt an existing model to the Canadian context. A first step would be an estimation of the size of high-risk groups and corresponding N. gonorrhoeae infections rates in Canada, as well as practical ways to reach these high-risk groups without stigmatization. In the meantime, results of adequately powered randomize RCTs will be available to hopefully support the relevance of a Canadian immunization initiative for the prevention of N. gonorrhoeae infections.

Authors' statement

PDW conceptualized the study and wrote the first draft of the manuscript. All authors contributed to the literature search, analyses and interpretation of results. All authors critically revised and edited the manuscript and approved the final version for submission.

Competing interests

Authors have no conflict of interests to declare.

ORCID numbers

• Philippe De Wals — 0000-0002-9239-3096

Acknowledgements

None.

Funding

None.
