Vaccine safety in Canada, 2017

CCDR

Volume 44-12, December 6, 2018: Adult immunization

Surveillance

Vaccine safety surveillance in Canada: Reports to CAEFISS, 2017

K Johnson1, H Anyoti1, C Coulby1

Affiliations

1 Centre for Immunization and Respiratory Infectious Diseases, Public Health Agency of Canada, Ottawa, ON

CAEFISS: Canadian Adverse Events Following Immunization Surveillance System

Correspondence

phac.aefi-essi.aspc@canada.ca

Suggested citation

Johnson K, Anyoti H, Coulby C. Vaccine safety surveillance in Canada: Reports to CAEFISS, 2017. Can Commun Dis Rep 2018; 44(12):324–30. https://doi.org/10.14745/ccdr.v44i12a04

Keywords: vaccine safety, adverse events, immunization, surveillance, CAEFISS

Abstract

Background: Canada has a comprehensive vaccine safety surveillance system that includes both passive and active surveillance of vaccines administered in Canada.

Objectives: To provide 1) a descriptive analysis of the adverse events following immunization (AEFI) reports for vaccines administered in Canada, 2) a descriptive review of health care utilization and outcome following an AEFI and 3) an analysis of serious adverse events (SAEs).

Methods: Data was obtained from the Canadian Adverse Events Following Immunization Surveillance System (CAEFISS), which includes both passive and active surveillance. Descriptive analyses were conducted of AEFI reports arising from vaccines administered from January 1, 2017 to December 31, 2017 and received by April 30, 2018. Data elements included AEFIs, demographics, health care utilization, outcome, and seriousness of adverse events.

Results: There were 2,960 AEFI reports submitted to CAEFISS from across Canada for vaccines administered in 2017. The AEFI reporting rate was 12.6/100,000 doses distributed (8.1/100,000 population) in Canada for vaccines administered in 2017 and was found to be inversely proportional to age. The majority of reports (91%) were non-serious events, primarily involving vaccination site reactions such as rash, and allergic events. Overall, there were 253 SAE reports, for a reporting rate of 1.1/100,000 doses distributed in 2017. Of the SAE reports, the most common primary AEFIs were seizure (n=58, 23%) followed by anaphylaxis (n=33, 13%). There were no unexpected vaccine safety issues identified or increases in frequency or severity of expected adverse events.

Conclusion: Canada’s continuous monitoring of the safety of marketed vaccines in 2017 did not identify any increase in the frequency or severity of AEFIs, previously unknown AEFIs or areas that required further investigation or research. Vaccines marketed in Canada continue to have an excellent safety profile.

Introduction

Post-market vaccine safety surveillance is essential to detect any emerging vaccine safety issues and to maintain public confidence in vaccines. The Public Health Agency of Canada (PHAC) works together with Health Canada, the regulator, to ensure a comprehensive post-market vaccine safety surveillance system.

The Canadian Adverse Events Following Immunization Surveillance System (CAEFISS) is a federal, provincial and territorial (FPT) public health post-market vaccine safety surveillance system. CAEFISS is managed by PHAC and is unique in that it includes both passive (spontaneous reports from FPTs) and active surveillance. Active surveillance is conducted by Immunization Monitoring Program ACTive (IMPACT); a network of 12 pediatric hospitals across Canada that screens hospital admissions for specific adverse events following immunizations (AEFIs). The primary objectives of CAEFISS are to

  • Continuously monitor the safety of marketed vaccines in Canada
  • Identify increases in the frequency or severity of previously identified vaccine-related reactions
  • Identify previously unknown AEFIs that could possibly be related to a vaccine
  • Identify areas that require further investigation and/or research, and
  • Provide timely information on AEFI reporting profiles for vaccines marketed in Canada, which could help inform immunization programs and guidelines Footnote 1.

In Canada, health care providers, manufacturers and the public each have a role to play in vaccine pharmacovigilance Footnote 2. The FPT public health officials monitor vaccine safety through the Vaccine Vigilance Working Group (VVWG) of the Canadian Immunization Committee (CIC). The VVWG includes representatives from all FPT immunization programs across the country as well as Health Canada regulators and IMPACT. This report was developed with input and support from the VVWG.

National reports on vaccine safety surveillance data have been published periodically Footnote 3Footnote 4. The objective of this report is to provide a) a descriptive analysis of AEFI reports for vaccines administered in Canada in 2017, b) a descriptive review of health care utilization and outcome following an AEFI and c) an analysis of serious adverse events (SAEs).

Methods

Definitions

An AEFI is defined as any untoward medical occurrence that follows immunization but that does not necessarily have a causal relationship with the administration of the vaccine. The adverse event may be a sign, symptom or defined illness Footnote 5.

A SAE in CAEFISS is identified based on the International Conference on Harmonization of Technical Requirements for Registration of Pharmaceuticals for Human Use as an event that results in death, is life-threatening, requires in-patient hospitalization or prolongation of existing hospitalization, results in persistent or significant disability/incapacity or results in a congenital anomaly/birth defect. Any medical event which may not be immediately life-threatening but requires intervention to prevent one of the outcomes listed above may also be considered as serious Footnote 6.

Data sources

The CAEFISS is an FPT collaborative process that includes submission of AEFI reports from both passive and active surveillance. Passive surveillance is initiated at the local public health level. Completed reports are first sent to provincial and territorial (PT) health authorities and are then submitted on a voluntary basis to PHAC for inclusion into CAEFISS Footnote 7. In addition, CAEFISS also receives reports from federal authorities (Indigenous Services Canada, Correctional Services Canada, Royal Canadian Mounted Police, National Defence and the Canadian Armed Forces). These reports are entered into CAEFISS and a copy and/or reporter information is sent to the health authorities of the jurisdiction of origin.

Active surveillance is conducted by IMPACT nurse monitors, under the supervision of pediatric and/or infectious disease medical specialists, who screen hospital admissions for target AEFIs that may have followed vaccination and that led to a hospital admission Footnote 8Footnote 9.

All AEFI reports are entered into CAEFISS and serious AEFIs are identified and coded using the International Medical Dictionary for Regulatory Activities (MedDRA version 17, McLean, Virginia United States [US]) Footnote 10. A systematic medical case review is conducted by trained health professionals who assign a primary reason for reporting using national case definitions for AEFI classification from the CAEFISS user guide Footnote 11. For more detailed information on CAEFISS and report processing and quality assurance, please refer to previous published reports (3,4).

Reporting rates are calculated with two different denominators. When possible, vaccine doses distributed data, which is provided by Market Authorization Holders, is used to calculate the doses distributed-based rate. This is not adjusted for doses returned or wastage. When the doses distributed data is not available, annual population estimates from Statistics Canada are used to calculate a population-based rate Footnote 12.

Data analysis

All AEFI reports submitted to CAEFISS by April 30, 2018 with a date of vaccine administration from January 1, 2017 through December 31, 2017 were included in this report. In addition, all AEFI reports following vaccines administered from 2007 onwards were included to assess trends over time.  Data were extracted from CAEFISS on May 27, 2018. Of note, reports submitted to CAEFISS for 2017 are known to be incomplete due to data entry delays in one region of one jurisdiction (which accounts for less than 2% of the total reports submitted to CAEFISS in 2017).

Descriptive analyses are conducted using SAS Enterprise Guide software, Version 5.1 (Cary, North Carolina, US) Footnote 13. Calculations were presented for all vaccines combined to calculate the overall rate by doses distributed for the year 2017 as well as rates by year (2007–2017), type of surveillance, primary reason for reporting, primary AEFI by seriousness and health care utilization and outcome for vaccines administered in 2017. Sex- and age-specific rates were calculated using population estimates as the denominator. Missing data were excluded from the calculations.

Results

The CAEFISS received a total of 2,960 AEFI reports from 13 provinces and territories for vaccines administered in 2017. Over 23 million vaccine doses (public and private) were distributed, representing a reporting rate of 12.6 per 100,000 doses distributed. Over the last 11 years, the AEFI reporting rate decreased (p<0.01) with reporting rates ranging from 12.6 to 21.9 per 100,000 doses distributed (Figure 1).

While only 7% (n=116) of all submitted AEFI reports in children less than 18 years of age were through active surveillance, they represented 56% (n=116) of all SAE reports submitted for this age group (Note: Data not shown; numbers do not completely correspond to the percentages as the percentages have been rounded to the nearest integer). This distribution is consistent with previous years Footnote 4.

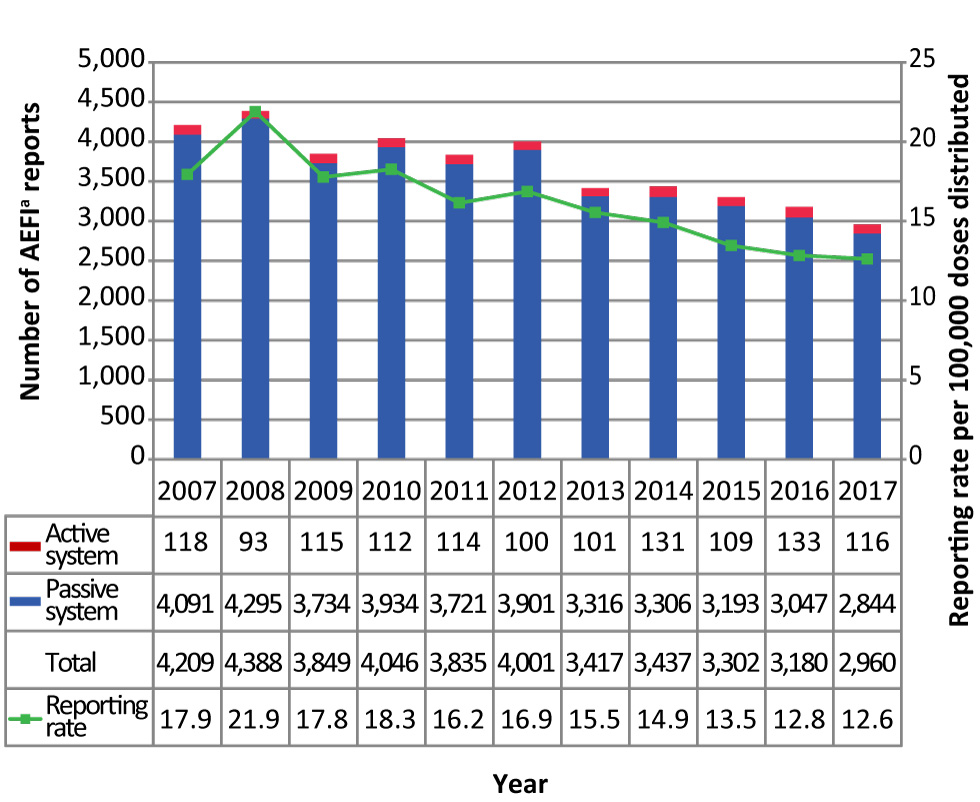

Figure 1: Total number of adverse events following immunization reports and reporting rate by reporting source and year, 2007–2017Figure 1 footnote a

Figure 1: Total number of adverse events following immunization reports and reporting rate by reporting source and year, 2007–2017

Text description: Figure 1
Figure 1: Total number of adverse events following immunization reports and reporting rate by reporting source and year (2007-2017)
Year Passive system Active system Total Reporting rate per 100,000 doses distributed
2007 4,091 118 4,209 17.9
2008 4,295 93 4,388 21.9
2009 3,734 115 3,849 17.8
2010 3,934 112 4,046 18.3
2011 3,721 114 3,835 16.2
2012 3,901 100 4,001 16.9
2013 3,316 101 3,417 15.5
2014 3,306 131 3,437 14.9
2015 3,193 109 3,302 13.5
2016 3,047 133 3,180 12.8
2017 2,844 116 2,960 12.6

Age and sex distribution

The number of reports and the reporting rates per 100,000 population by age group and sex are presented in Figure 2. The median age of all reports during the reporting period was 10 years (range: one day to 97 years). The majority (60%) of AEFI reports were for children and adolescents under 18 years of age. The highest reporting rates were seen in children one to less than two years of age (136.5/100,000 population), followed by infants less than one year of age (119.6/100,000 population).

Decreases in the reporting rate were seen in all age groups less than seven years of age (p<0.01) between 2007 and 2017, with the greatest decreases seen in the one to less than two year age group (302.5 versus 136.5/100,000 population respectively) and the less than one year age group (182.8 vs 119.6/100,000 population respectively) (data not shown).

Of the 2,960 reports, 60% of reports were in females. As shown in Figure 2, male predominance was observed for children under seven years of age and female predominance was observed among those seven years of age and older. Two age groups had a significant difference between female and male reporting rates: the 18 to 64 year age group had a rate ratio (RR) of 4.6 (95% confidence interval [CI] 3.86 to 5.49; p<0.05) and the 65 and older age group had a RR of 2.6 (95% CI 2.02 to 3.35; p<0.05), indicating that submitted AEFI reports were over four and a half times and two and half times more likely to be in females, respectively.

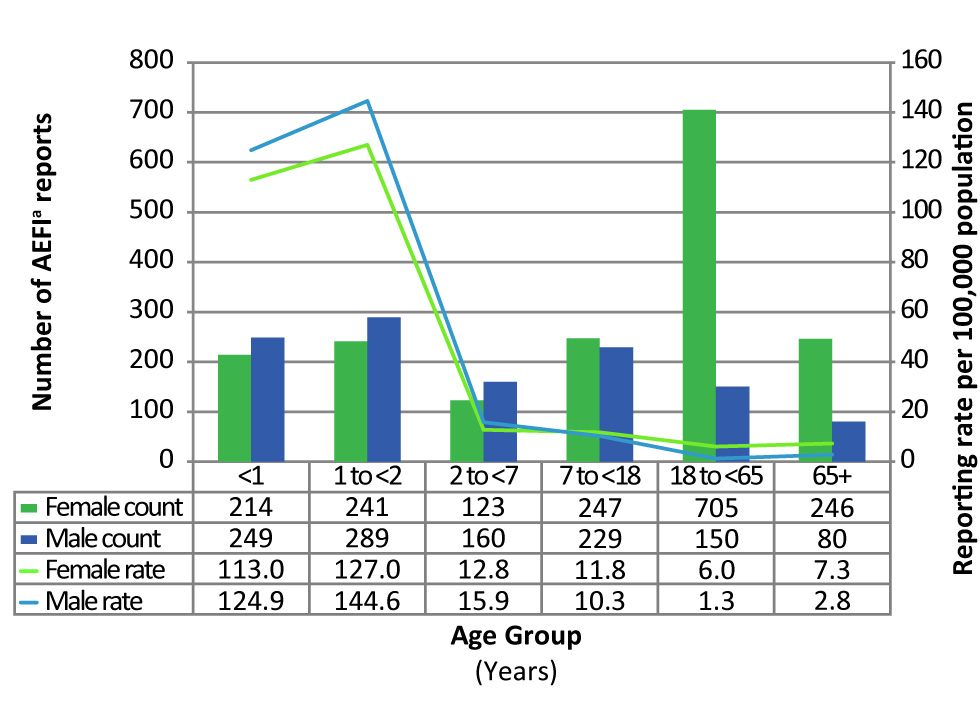

Figure 2: Number and reporting rate of adverse events following immunization reports by age group and sex, 2017Figure 2 footnote a

Figure 2: Number and reporting rate of adverse events following immunization reports by age group and sex, 2017

Text description: Figure 2
Figure 2: Number and reporting rate of adverse events following immunization reports by age group and sex, 2017
Age Group Female Count Female Rate per 100,000 population Male Count Male Rate per 100,000 population
Less than 1 year 214 113.0 249 124.9
1 to less than 2 years 241 127.0 289 144.6
2 to less than 7 years 123 12.8 160 15.9
7 to less than 18 years 247 11.8 229 10.3
18 to less than 65 years 705 6.0 150 1.3
65 years and older 246 7.3 80 2.8

Primary reason for reporting

During the medical case review process, a primary AEFI category is assigned as the main reason for reporting and is further classified to a sub-category. Excluding the ‘other’ category, the most common primary AEFIs reported for vaccines administered in 2017 were vaccination site reactions (n=1,339, 45%) followed by allergic reaction (n=417, 14%) and rash alone (n=346, 12%) (Table 1).

The proportion of serious events was highest for the neurological event category (44%), followed by infection/syndrome/systemic symptoms (ISS) (22%). Of note, vaccination errors included only a small number of reports (fewer than five AEFI reports) and no serious reports.

Table 1: Frequency of reports and percent that is serious for each primary adverse event following immunization sub-category, 2017
Primary AEFI category Primary AEFI sub-category Number of reports
(N=2,957)Table 1 footnote a
Serious event
(%)
Allergic or allergic-like events Anaphylaxis 33 100
Other allergic eventsTable 1 footnote b 355 1
Oculo-respiratory syndrome (ORS) 28 0
Rash 1 0
TOTAL 417 9
Infection/syndrome/systemic symptoms (ISS) Fever only 11 27
Infection 28 36
Influenza-like illness (ILI) 10 0
Rash with fever and/or other illness 61 10
Syndromes (e.g., Kawasaki) 16 88
Systemic (when several body systems are involved) 55 11
TOTAL 181 22
Neurologic events Aseptic meningitis 3 67
Ataxia/cerebellitisTable 1 footnote c 2 50
Bell's palsy 6 17
Encephalitis / acute disseminated encephalomyelitis (ADEM) / myelitis 5 100
Guillain-Barré syndrome (GBS) 2 50
Other paralysis lasting more than one day 1 100
Seizure 111 52
Other neurologic eventTable 1 footnote d 47 17
TOTAL 177 44
Rash alone Generalized 291 0
Localized 35 0
Location not specified/extent unknown 20 0
TOTAL 346 0
Immunization anxiety Presyncope 6 0
Syncope 33 6
Other anxiety-related eventTable 1 footnote e 7 0
TOTAL 46 4
Vaccination site reactions Abscess (infected or sterile) 13 31
Cellulitis 329 5
Extensive limb swelling (ELS)Table 1 footnote f 136 2
Pain in the vaccinated limb of seven days or more 56 0
Other local reactionTable 1 footnote g 804 2
Rash 1 0
TOTAL 1,339 3
Vaccination error Vaccination error
TOTAL
3 0
Other Arthralgia 16 0
Arthritis 5 20
Gastrointestinal event 169 5
Hypotonic-hyporesponsive episode (HHE) 17 24
Intussusception 6 83
Anaesthesia/paraesthesia 22 5
Parotitis 9 0
Persistent crying 16 6
Sudden infant death syndrome (SIDS) 0 N/A
Sudden unexpected/unexplained death syndrome (SUDS) 0 N/A
Thrombocytopenia 25 80
Other eventsTable 1 footnote h 163 12
TOTAL 448 13

Figure 3 shows the distribution of AEFIs by primary reason by age group. Vaccination site reactions represented the greatest number of AEFIs for all the age groups except for children less than one year of age. Excluding the “other” event category for children under one year of age, the most commonly reported AEFI was rash alone, followed by vaccination site reactions (Figure 3).

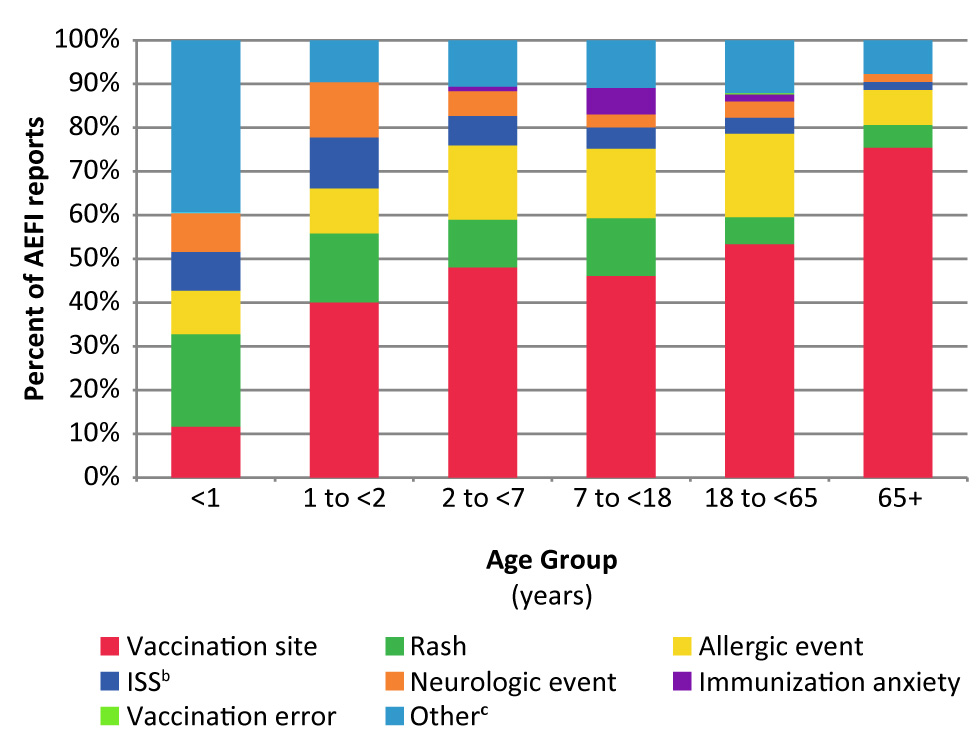

Figure 3: Distribution of primary adverse events following immunization reported by age group, 2017Figure 3 footnote a

Figure 3 footnote bFigure 3 footnote c

Figure 3: Distribution of primary adverse events following immunization reported by age group, 2017

Text description: Figure 3
Figure 3: Distribution of primary adverse events following immunization reported by age group, 2017
Age Group Primary Adverse Event Following Immunization
Allergic event ISSFigure 3 footnote b Immunization anxiety Neurologic event OtherFigure 3 footnote c Rash Vaccination error Vaccination site
Less than 1 year 9.9% 8.8% 0.0% 8.8% 39.1% 21.1% 0.2% 11.6%
1 to less than 2 years 10.3% 11.7% 0.0% 12.6% 9.6% 15.8% 0.0% 40.0%
2 to less than 7 years 17.0% 6.7% 1.1% 5.7% 10.6% 11.0% 0.0% 48.1%
7 to less than 18 years 15.9% 4.8% 6.1% 2.9% 10.9% 13.2% 0.0% 46.0%
18 to less than 65 years 19.1% 3.6% 1.6% 3.7% 12.1% 6.2% 0.2% 53.4%
65 years and older 8.0% 1.8% 0.0% 1.8% 7.7% 5.2% 0.0% 75.5%

Health care utilization

Table 2 shows the reported highest level of care sought following an AEFI. The most frequently reported highest level of health care usage was non-urgent health care visit (40%), followed by emergency visit (24%). Most people with a reported AEFI (93%) did not require hospitalization. In 23% of cases, no health care was sought.

Table 2: Highest level of health care sought for adverse events following immunization, 2017
Highest level of care sought
(N=2,709Table 2 footnote a)
n %Table 2 footnote b
Required hospitalization (>24 hrs) 197 7
Resulted in prolongation of existing hospitalization 1 < 0.1
Emergency visit 639 24
Non-urgent visit 1,088 40
Telephone advice from a health professional 127 5
None 623 23
Unknown 34 1

Outcome

The outcome at time of reporting for all AEFI reports is shown in Table 3. Full recovery was reported in 75% of the reports and less than 0.1% of reports reported death as an outcome. For those not fully recovered at the time of reporting, the reports are revised if updated information is received by CAEFISS from the provinces and territories.

Table 3: Outcome at time of reporting for all adverse events following immunization reports, 2017
Outcome (N=2,878Table 3 footnote a) n %Table 3 footnote b
Fully recovered 2,154 75
Not yet recovered at time of reporting 589 20
Permanent disability / incapacity 1 <0.1
Death 4 0.1
Unknown 130 5

Serious adverse event reports

Overall there were 253 SAE reports out of over 23 million vaccine doses distributed during the reporting period. This represents a reporting rate of 1.1/100,000 doses distributed and 9% of all AEFI reports for the 2017 time period. Figure 4 shows the distribution of SAE reports by reason for seriousness, with hospitalization (n=192) and life threatening events (n=49) being the most common reasons.

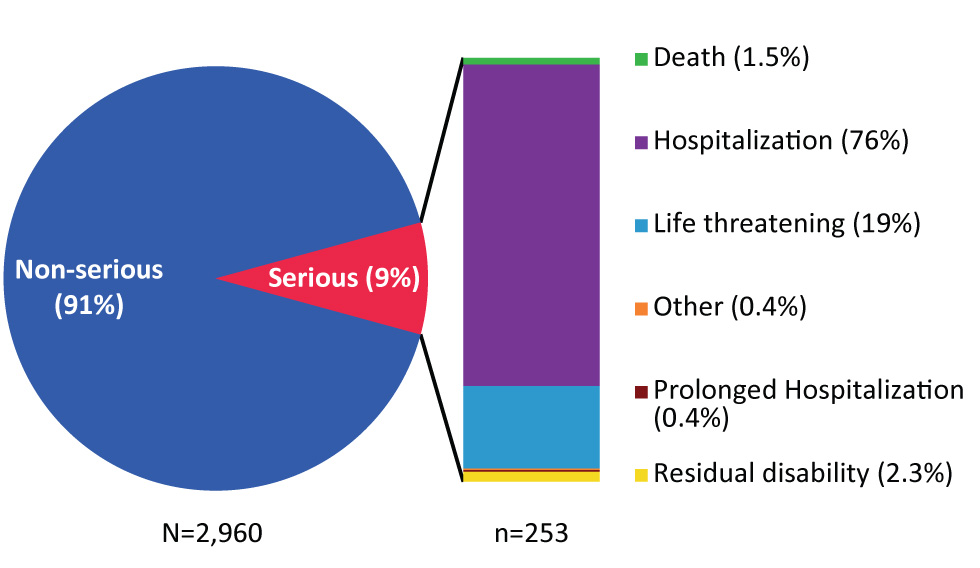

Figure 4: Classification of serious adverse events reports, 2017Figure 4 footnote a

Figure 4: Classification of serious adverse events reports, 2017

Text description: Figure 4

Figure 4: Classification of serious adverse events reports, 2017

Figure 4 depicts a pie chart with a small slice removed on the right side to describe the different types of adverse events. The larger blue portion makes up 91% of the pie chart and corresponds to non-serious adverse event reports. The small red slice makes up 9% of the pie chart and corresponds to serious adverse event (SAE) reports. The red section shows a further breakdown of the type of SAEs reported using a bar graph. Hospitalization makes up 76% of SAEs and is shown in purple. Life-threatening events make up 19% of SAEs and are depicted in light blue. Fatal events make up 1.5% of SAEs and are depicted in green. Prolonged hospitalizations make up for 0.4% of SAEs and are depicted in burgundy. Residual disability makes up 2.3% of SAEs and is depicted in yellow. Finally, “Other” makes of 0.4% of SAEs and is depicted in orange.


Among the SAE reports, the most frequently reported primary AEFI was seizure (n=58, 23%), followed by anaphylaxis (n=33, 13%). The majority (n=183, 72%) of SAE reports had fully recovered at the time of reporting. For those patients who had not fully recovered at the time of reporting, these reports were revised if updated information was received by CAEFISS from the provinces and territories. Other outcomes for SAE reports included fatal outcome (n=4, 2%), permanent disability/incapacity (n=1, 0.4%), unknown outcome (n=15, 6%) and missing information on outcome (n=5, 2%).

The majority of SAEs were in children and adolescents less than 18 years of age (81%), with almost three quarters (74%) of these SAEs being reported in children under the age of two years.

There were two deaths in those less than two years of age and two deaths in those 18 years of age and older. After careful review, all deaths were considered to be a result of pre-existing conditions (heart surgery, serious injury, cardiovascular disease, diabetes and hypertension) and not to the vaccines administered. There was also one reported outcome of disability that occurred in an individual. The medical history was reviewed for this individual and it was concluded, based on the information provided, that the disability was not considered to be related to the administered vaccine.

Discussion

In 2017, the overall annual AEFI reporting rate was 12.6/100,000 doses distributed or 8.1/100,000 population, with a statistically significant downward trend in reporting rates over the last 11 years. There are several possible explanations for the declining overall rate of AEFI reporting. It may be due to under-reporting, variations in the reporting of expected milder events, or differences in vaccine uptake.

The majority of reports (91%) was due to non-serious events and differed with age, with rash being more common in infants and vaccination site reactions more common in the elderly. Male predominance was observed for children under seven years of age and female predominance was observed among those seven years and older. The results of a greater proportion of reports involving females is similar to other findings where females in the adult population were found to consistently report more adverse events Footnote 3Footnote 4Footnote 17. The reported sex differences by age may also be explained in part by higher vaccine coverage in female adults Footnote 18. The majority of SAEs occurred in children and adolescents, which may in part be explained by IMPACT, which actively searches for specific surveillance targets in children admitted to 12 pediatric tertiary care hospitals Footnote 9Footnote 19. The greater proportion of SAEs seen in children under two years of age is likely due in large part to the number of vaccines provided to this age group to protect them when they are most vulnerable to vaccine-preventable diseases. Although the percentage of SAEs increased from 8% (between 2013 and 2016) to 9% (in 2017), this increase may be due to a decrease in the reporting of non-serious AEFIs. The 2017 SAE reporting rate was consistent with previously reported rates and there were no unexpected vaccine safety issues identified Footnote 4.

Limitations

Passive surveillance for AEFIs is subject to limitations such as underreporting, over reporting, lack of certainty regarding the diagnostic validity of a reported event, missing information regarding other potential causes such as underlying medical conditions or concomitant medications and the differing AEFI reporting practices by jurisdictions within Canada.

There are also limitations associated with active surveillance. The IMPACT uses predetermined AEFI targets (such as seizure), which may limit its ability to identify new adverse reactions to immunizations. In addition, IMPACT focuses on admitted pediatric cases, which means that only the most serious cases are detected. Lastly, IMPACT is not comprehensive, as it covers only 90% of Canada’s tertiary care pediatric beds and hospital admissions Footnote 19Footnote 20. Despite these limitations, IMPACT is able to fulfill an important role in vaccine safety surveillance by actively identifying targeted serious AEFIs in the pediatric population.

In addition, the number of doses administered in the population is not available at the national level; therefore, the denominator used in rate calculations is estimated either from doses distributed or from population statistics. The use of doses distributed is the best available denominator. However, it does have certain limitations:

  • It does not equal the number of doses administered
  • It does not take wastage into account
  • It may not be complete at time of publication, due to reporting delays by the Market Authorization Holders

A population-based denominator was used for demographic analysis (sex-specific and age-specific rates) for this report. A limitation of using a population-based denominator is that it assumes similar distribution of vaccine doses across population subgroups and geographic areas, even though this may not be true in all cases.

Conclusion

Canada’s continuous monitoring of the safety of marketed vaccines in 2017 did not identify any increase in the frequency or severity of AEFIs, or identify previously unknown AEFIs. The majority of reported AEFIs were both expected and mild in nature. Vaccines marketed in Canada continue to have an excellent safety profile.

Authors’ statement

KJ — Formal analysis, validation, writing-original draft, writing-review and editing
CC — Software, formal analysis, validation, writing-original draft, writing-review and editing
HA — Validation, writing-review and editing, supervision

Conflict of interest

None.

Acknowledgments

This report would not be possible without the contribution of the public, public health professionals, IMPACT investigators, nurse monitors, the Canadian Paediatric Society and local/regional and provincial/territorial public health authorities that submitted reports to CAEFISS, as well as the ongoing collaboration of the members of the Vaccine Vigilance Working Group. Furthermore, we would like to thank the members of the Vaccine Vigilance Working Group for input and support in the development of this report.

Finally, we would like to thank each individual who took the time to submit an AEFI report for their contribution to vaccine safety in Canada.

Funding

This work was funded by the Public Health Agency of Canada.

Appendix 1: Supplementary figures (available upon request)

Figure A1: Proportion of adverse events following immunization reports by active versus passive surveillance in children less than 18 years of age, 2017

Figure A2: Annual reporting rate of adverse event following immunization reports by age group, 2007–2017
